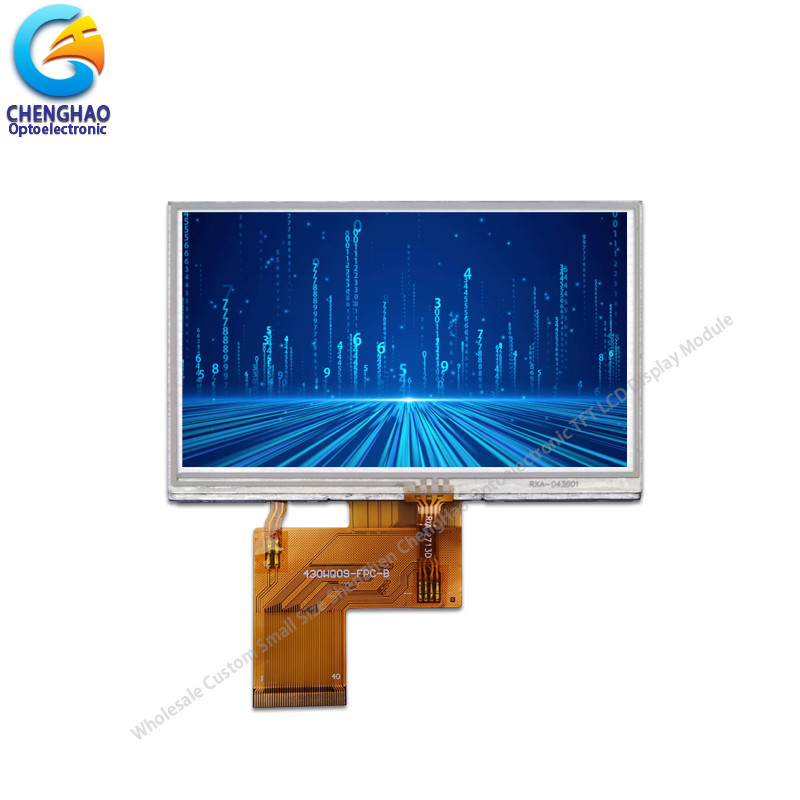

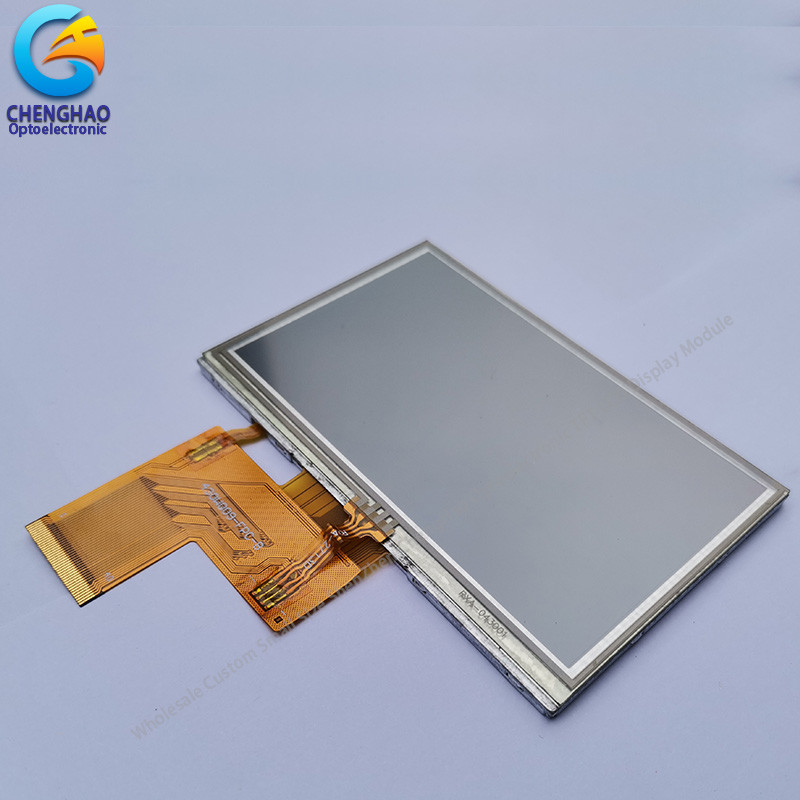

230cd/m2 TFT Lcd Display Module 480x272 Dots4.3in FPC Halogen Free

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH430WQ09A-T

Detail Information

Product Name: 4.3Inch Custom Lcd Screen Module Size: 105.5(W)×67.2(H)×3.0(T)mm
Active Area: 95.04(W)×53.856(H)mm Dotpitch: 0.198(W)×0.198(H)mm
Interface: 24-bit Parallel RGB Interface Operating Temperature: -20~+70 ℃
High Light:

230cd/m2 TFT Lcd Display Module

,

4.3in FPC Lcd Display Module

,

Halogen Free Custom Lcd Screen

Product Description





1. Specification



ITEM STANDARD VALUES UNITS
LCD type 4.3’’TFT --
Dot arrangement 480(RGB)× 272 dots
Driver IC ST7282 --
Tft  size 105.5(W)×67.2(H)×3.0(T) mm
Active area 95.04(W)×53.856(H) mm
Dot pitch 0.198(W)×0.198(H) mm
Operating temperature - 20 ~ + 70
Storage temperature - 30 ~ + 80
Back Light 7 White LED In Paralle --
Weight TBD g



2. Description



ChengHao Display model CH430WQ09A-T is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a back-light, a Resistive Touch Panel and FPC.

This TFT LCD has a 4.3 ( horizontal screen) inch diagonally measured active display area with 480*272 pixel .

The driver used for this project is the ST7282 and can display 16.7M colors by signal input. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module. Support 24-bit Parallel RGB Interface.

In addition, FPC can also be customized according to customer requirements, such as modifying back-light and FPC structure, interface definition, etc.

RoHS Compliance & Halogen Free.



3. Drawings



Notes:
(1) Display Type : 4.3 inch TFT+Resistive Touch Panel
(2) Viewing Direction : 12:00
(3) Lcd Drive IC : ST7282
(4) Polarizer Mode : Transmissive/ Positive
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS / CE
