3.97" TFT LCD Display Module 480×800 ST7701S Ebike LCD Display

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH400WV13

Detail Information

Product Name: 3.97" Tft Lcd Color Monitor Interface: MIPI
Luminace: 400cd/m2 LCD Type: 3.97"TFT
Dot Arrangement: 480(RGB)×800 Color Filter Array: RGB Vertical Stripe
TFT Driver IC: ST7701S
High Light:

3.97" LCD Display Module

,

ST7701S LCD Display Module

,

ST7701S Ebike LCD Display

Product Description

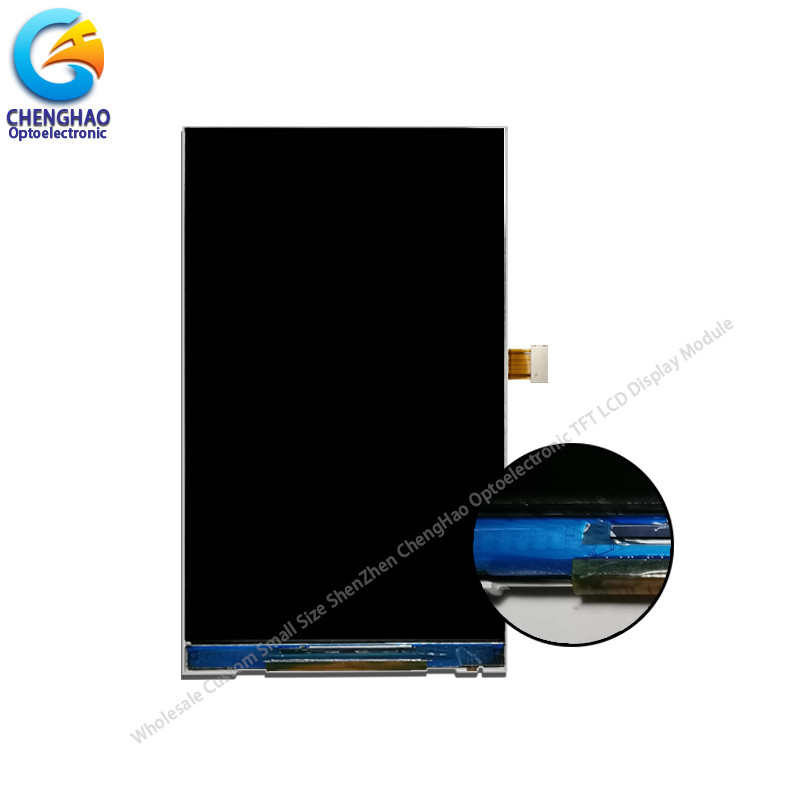

3.97" TFT LCD Display Module 480×800 ST7701S Ebike LCD Display



3.97" Tft Lcd Color Monitor Wholesale Custom 480×800 ST7701S Ebike Lcd Display



1. Specification



ITEM STANDARD VALUES UNITS
Module size 56.34(W)×95.70(H)×2.0(T) mm
TFTActive area 51.84(W)×86.4(H) mm
Dot pitch 0.108(W)×0.108(H) mm
Interface 2-laneMIPI DSI --
Operating temperature -20~+70
Storage temperature -30~+80
Back Light 8White LED in serial --



2. Description



ChengHao Display model CH400WV13A  is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a high brightness back-light and FPC.


This TFT LCD has a 4 (Landscape screen) inch diagonally measured active display area with 480(RGB)*800 resolution.


The driver used for this project is the ST7701S and can display 16M / 262k / 65k colors by 2-laneMIPI DSI Interface input. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module. Support RGB interface.


In addition, FPC can also be customized according to customer requirements, such as modifying back-light and CTP structure, interface definition, etc.


RoHS Compliance & Halogen Free.





3. Drawings



Notes:
(1) Display Type : 3.97" TFT
(2) Viewing Direction : 80/80/80/80
(3) Lcd Drive IC : ST7701S
(4) Polarizer Mode : IPS/ Transmissive/ NormallyBlack
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS





3.97" TFT LCD Display Module 480×800 ST7701S Ebike LCD Display 0


4. Application



(1) smart wearable devices (such as watches, fingertip pulse meters),

(2) car display devices (car central control display, navigation display/headrest display, etc.),

(3) payment financial equipment (card reader, cash register, etc.),

(4) customer terminal equipment (refrigerator, Coffee machine, smart rice cooker, etc.)

(5) elevator display equipment (elevator digital display)

(6) industrial control equipment (industrial display)

(7) instrument measuring equipment (detector, monitor)

(8) artificial intelligence equipment (smart robot)

(9) medical equipment (heart rate monitoring display )

(10) smart home equipment (kitchen smoke machine)

(11) security identification equipment (smart access control, punch card machine, etc.)

(12) vending equipment (vending machine), etc.



3.97" TFT LCD Display Module 480×800 ST7701S Ebike LCD Display 1




5. Why Choose Us ?



1. We have a professional technical team with rich TFT-LCD work experience.
2.We have many years of experience in global customer cooperation, and we have the ability to solve the needs of most customers' personalized customized products.
3. We have advanced tft-lcd production equipment and a first-class production team, which can provide customers with high-quality products.
4. We are equipped with a professional after-sales service team, which can provide customers with a full range of after-sales services.
5. We provide a full range of products and services, including display screens and touch screens,
Technical support and customization.
6. We manage strictly in accordance with the ISO9001 management system, and our products conform to Rosh
Certification.
