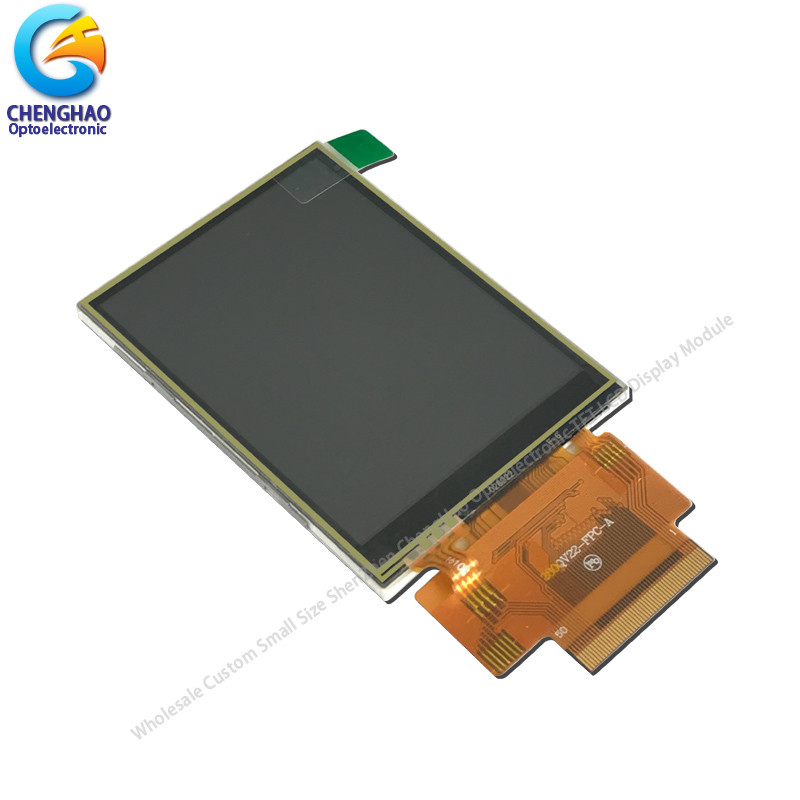

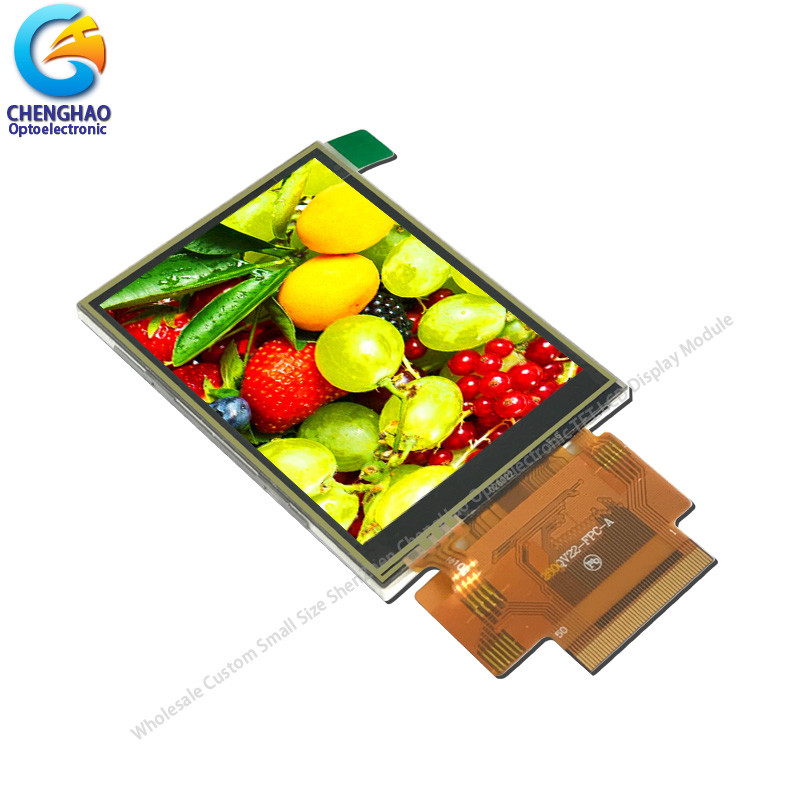

2.8" 240x320 Resistive Touch Screen Monitor With SPI MCU Interface

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH280QV22A-T

Detail Information

Product Name: 2.8" Resistive Touch Screen Monitor Resolution: 240*320 Dots
Outline Dimension: 50.0(W)*69.2(H)*3.5(T) Mm Active Area: 43.2(W)*57.6(H) Mm
Connection: Connector Pin Number: 50
Interface: SPI、MCU、SPI+RGB Working Temperature: -20~70 ℃
High Light:

240x320 Resistive Touch Screen Monitor

,

2.8inch LCD Touch Screen Module

,

240x320 LCD Touch Screen Module

Product Description

2.8" 240x320 Resistive Touch Screen Monitor With SPI MCU Interface



2.8" Resistive Touch Screen Monitor 240x320 Tft Lcd Display With SPI / MCU Interface



1. Specification



Product Name 2.8" Resistive Touch Screen Monitor --
Model Name CH280QV22A-T --
Number of Dots 240*3(RGB)*320

dots

Product Size 2.8  Inch
Overall Size 50.00*69.20*3.5

--

Active Area 43.20*57.60 --
Color 262/65K --
Display Mode Normally Black IPS,Transmissive --
Pin number 50 --



2. Description



2.8" Resistive Touch Screen Monitor 240x320 Tft Lcd Display With SPI / MCU Interface



* CH280QV22A-T is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight, RTP.
* It is 240*3(RGB)*320 Dots TFT LCD module.
* Backlight with different brightness options from 200 - 1500 Nits are available.
* Specific touch panel can be designed & customized.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.



3. Drawings



Notes:
(1) Display Type : 2.8" TFT
(2) Viewing Direction : 80/80/80/80
(3) Lcd Drive IC : ILI9341V
(4) Polarizer Mode : Transmissive / Negative
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS



2.8" 240x320 Resistive Touch Screen Monitor With SPI MCU Interface 0




4. Application



Products are widely used in general communications, household appliances, industrial control, medical equipment,

POS machines,instruments, meters, GPS navigation, digital photo frames, netbooks, financial electronics, communi

-cation electronics, consumer electronics, information appliances, culture, education, sports and entertainment, etc.

field. Such as attendance machine,fingerprint device, access control machine, stock machine, walkie-talkie, video

doorbell, learning machine, point reading machine,GPS navigator, and so on .



2.8" 240x320 Resistive Touch Screen Monitor With SPI MCU Interface 1


5. Our Service ?



1.We provide one-year product after-sales guarantee service to all customers who purchase our products.
2. For any technical problems encountered by customers in the process of testing or using our products, our technical team will provide customers with remote online technical support services at any time.
3. We are a factory-type supplier with ISO certification. Our products on sale have undergone strict quality inspection and testing before shipment, and have also passed CE/ROHS certification.
4. We have a professional after-sales service team, which can provide strong guarantee and logistical technical services for your orders.

5. Replacement within 30 days after the shipment of products from us due to products' problems.

6. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.

7. All goods will be inspected and tested before shipment.

8. Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Email. It will be responded within 24 hours.



6. FAQ



Q1: Do you accept customization displays and touch screens?
A: Sure, you can customization the FPC,Backlight and the touch screen.



Q2: What type of interface is your display screen?
A: Small sized of displays generally support SPI,MCU,RGB,MIPI.Medium sized displays generally support LVDS,MIPI,EDP.Different specifications use different interfaces.



Q3: Do you used capacitive touch screen or resistive touch screen.
A: We have capacitive touch screen and resistive touch screen .



Q4: What is your sample policy?
A: If there is stock,you can sample at any time,if there is no stock,it will take some time,and then wait for the materials to come back to sample. But the customer needs to pay the sample fee and express fee.

Q5: How long is your lead time for mass production?
A: It takes about 20 - 45 working days for mass production,depending on the model and order quantity.

Q6: How to ensure long-term stable delivery?
A: First,we will recommend products that can be delivered for a long time to customers,and second,we will have a large number of stocks in advance for a long time.

Q7: What is your mode of payment for mass production?
A: Generally,after receiving 50%-100% deposit from customers,they begin to prepare materials. Delivery is about 5 working days after receipt of the final payment.

Q8: Will you inspect the goods before delivery?
A: Yes, we’ll ship the goods after 100% inspection.



Q9: How long is your warranty period?
A: We guarantee the quality for one year.
