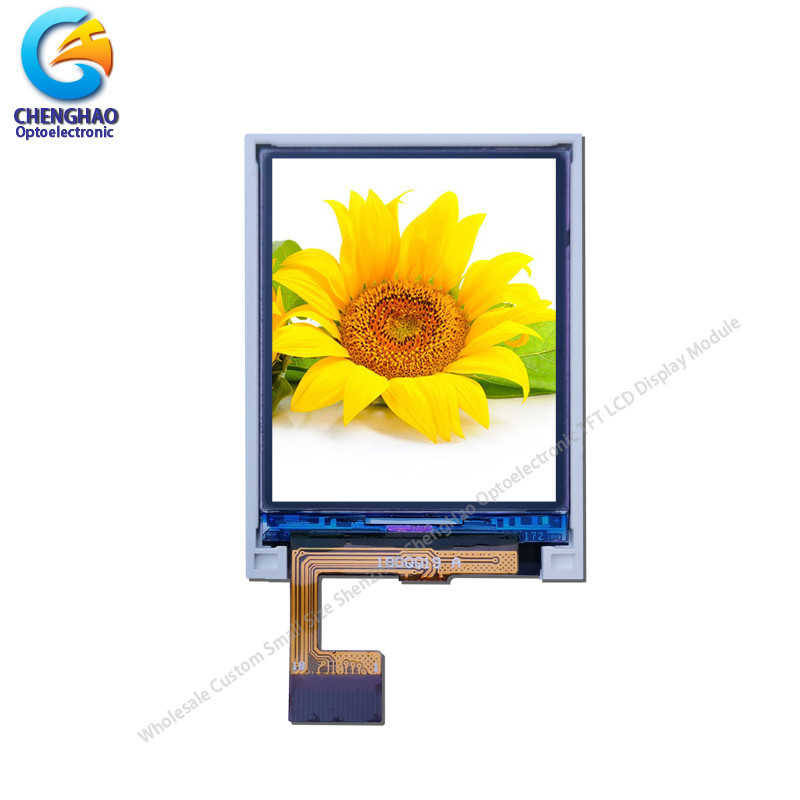

1.77 Inch Custom LCD Display Module 128x160 Dots TFT LCD Screen

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH180QQ19A

Detail Information

Product Name: Custom LCD Display Module Module Size: 34.7(W)×46.7(H)×2.3(T) Mm
Active Area: 28.032(W)×35.04(H) Mm Back Light: 2pcs White LED
Weight: TBD G Color Filter Array: RGB Vertical Stripe
Backlight Type: White LED Interface: "4line SPI 8-bit8080-seriessystem Interface"
High Light:

1.77 Inch Custom LCD Display Module

,

128x160 Dots Custom LCD Display Module

,

1.77 Inch TFT LCD Screen

Product Description

1.77 Inch Custom LCD Display Module 128x160 Dots TFT LCD Screen



Custom LCD Display Module 1.77 inch 128x160 dots tft screen with 8080-seriessystem interface



1. Specification



Product Name Custom LCD Display Module
Resolution 128(RGB)×160
Dot pitch 0.219(W)×0.219(H) mm
Interface 4line SPI
8-bit8080-seriessystem interface
Operating temperature -20~+70
Storage temperature -30~+80
Back Light 2 pcs White LED
Weight TBD g
Outline Dimension 34.7(W)×46.7(H)×2.3(T) mm
Display Area 28.032(W)×35.04(H) mm



2. Description



Product Name:

Custom LCD Display Module 1.77 Inch 128x160 Dots Tft Screen With 8080-Seriessystem Interface



* CH180QQ19A is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* It is128(RGB)×160 resolution TFT LCD module.
* Backlight with different brightness options from 100 - 1500 cd/m2 are available.
* Specific touch panel can be designed & customized.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.



3. Drawings



Notes:
(1) Display Type : 1.8-inch TFT
(2) Viewing Direction :6:00
(3) Lcd Drive IC : ST7735S
(4) Polarizer Mode : Transmissive / Positive
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS



1.77 Inch Custom LCD Display Module 128x160 Dots TFT LCD Screen 0




4. Application



Products are widely used in general communications, household appliances, industrial control, medical

equipment, POS machines,instruments, meters, GPS navigation, digital photo frames, netbooks, financial

electronics, communication electronics, consumer electronics, information appliances, culture, education,

sports and entertainment, etc. field. Such as attendance machine,fingerprint device, access control machine,

stock machine, walkie-talkie, video doorbell, learning machine, point reading machine,GPS navigator, and

so on .

1.77 Inch Custom LCD Display Module 128x160 Dots TFT LCD Screen 1


5. Why Choose Us ?



The high quality products enable it to build a long-term relationship with world-famous enterprises in the

industries:
(1) Competitive Price
Own-owned factories offer lower prices and better quality assurance.
(2) Strong Technical Strength
We are a top supplier specializing in the production of color LCD screens. We have a technical team with

rich experience in product research and development, and can provide customers with professional technical

support and customized consulting services at any time, which is very important for cooperative customers

with special project needs.
(3) Long-term Partner
Products are sold to more than 40 countries, so from Chenghao Optoelectronic you can get more stable

supplying promise;
(4) Professional Service
We have a professional after-sales team that can provide you with after-sales consulting services 24 hours

a day.At the same time, if you encounter any problems in the process of using our products, you can give us

feedback, and our technical engineers will provide you with online remote consulting services at any time.
(5) Quality to be ensure
All panels are 100% brand new, without false panels; All packages have labels and serial numbers for easy

viewing by customers.



6. FAQ



Q: Payment methods?
A: T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.



Q: What is the lead time of the products?
A:Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production



Q: How long is the warranty period?
A: Generally the warranty period is one year. It depends on different products.



Q: What is the Product MOQ?
A: Different product has the different MOQ, please contact us sales for detailed information.



Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional technical team.



Q: Can you provide OEM service?
A: yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply



Q: How can I trust your product quality?
A: The company has advanced the incoming inspection, on-line test and reliability test equipment and system, the company products through the ROHS,CE testing
