1.8inch Colour LCD Module 128*160 Dots With 4line SPI Interface

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH180QQ19A

Detail Information

Product Name: 1.8" Colour Lcd Module LCD Type: 1.77"TFT
Dot Arrangement: 128(RGB)×160 Dots Color Filter Array: RGB Vertical Stripe
Display Mode: TN / Transmissive / Normally White Viewing Direction: 6 O’clock
GrayScaleInversiondirection: 12 O’clock Driver IC: ST7735S
High Light:

1.8inch Colour LCD Module

,

ST7735S Colour LCD Module

,

1.8 Inch LCD Module

Product Description

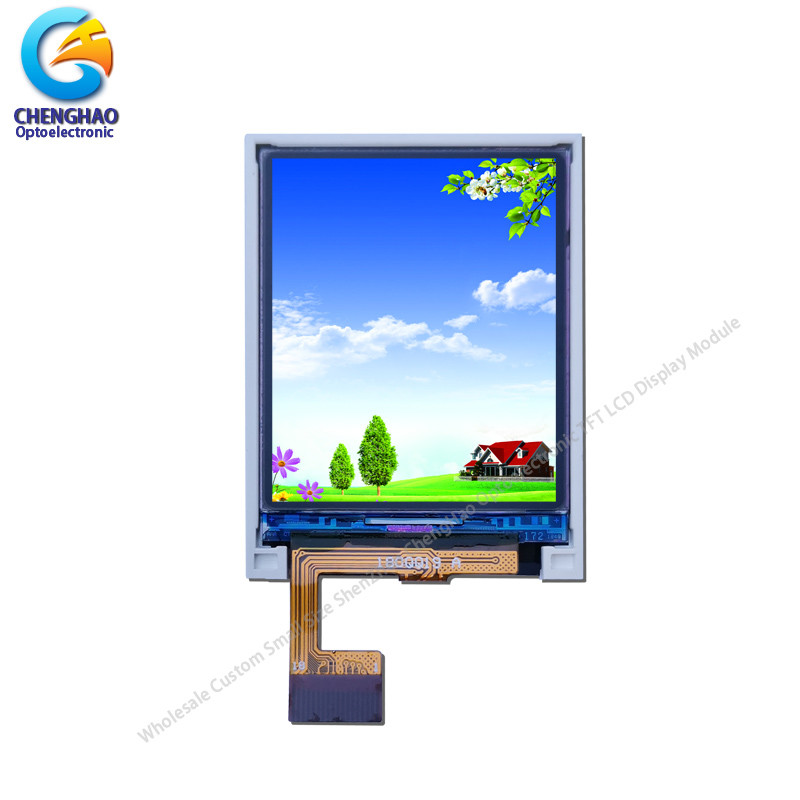

1.8inch Colour LCD Module 128*160 Dots With 4line SPI Interface



1.8" Colour Lcd Module 128*160 Dots Rgb Screen Panel With 4line SPI Interface



1. Specification

Product Name 1.8" Colour Lcd Module
LCD type 1.77’’TFT --
Dot arrangement 128(RGB)×160 dots
Color filter array RGB vertical stripe --
Display mode TN / Transmissive / Normally White --
Viewing Direction 6o’clock --
GrayScaleInversiondirection 12o’clock --
Driver IC ST7735S --
Module size 34.7(W)×46.7(H)×2.3(T) mm
Active area 28.032(W)×35.04(H)  mm




2. Description



Product Name:

1.8" Colour Lcd Module 128*160 Dots Rgb Screen Panel With 4line SPI Interface



* 1.8-inch color screen display
* 128(RGB)*160 resolution, clear display
* Using 4line SPI 8-bit8080-seriessystem interface
* Provide a rich sample program
* Military-grade process standards, long-term stable work
* Provide underlying driver technical support
* Long term stable production and guaranteed supply
* Support customized service! Customizable content includes FPC/backlight brightness/installation of touch panel, etc.



3. Drawings



Notes:
(1) Display Type : 1.8" TFT
(2) Viewing Direction : 6:00
(3) Lcd Drive IC : ST7735S
(4) Polarizer Mode : Transmissive / Positive
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS



1.8inch Colour LCD Module 128*160 Dots With 4line SPI Interface 0


4. Application



Products are widely used in general communications, household appliances, industrial control, medical

equipment, POS machines,instruments, meters, GPS navigation, digital photo frames, netbooks, financial

electronics, communication electronics, consumer electronics, information appliances, culture, education,

sports and entertainment, etc. field. Such as attendance machine,fingerprint device, access control machine,

stock machine, walkie-talkie, video doorbell, learning machine, point reading machine,GPS navigator, and

so on .



1.8inch Colour LCD Module 128*160 Dots With 4line SPI Interface 1


5. Our Product



(1). Module
* Size: 1.14"/ 1.47"1.44"/1.50"/1.54"/1.77"/1.80"/2.0"/2.1"/2.31"/2.40"/2.80"/3.50"/3.90"/3.95"/3.97"/3.98"/4.0"/4.3"/

5.0"/5.5"/6.0"/7.0"/8.0"/9.0"/10.1"/12.3"


* Shape: Round shape/Square(Horizontal/vertical)
* Interface: MIPI / RGB/ SPI / MCU
* Number of Dots: Optional
* Brightness
Regular: 100-500 nits
Sun Readable: 500-1000 nits
(2). Touch Panel
* Touch Type: Non touch / Resistive touch / Capacitive touch
* Interface Type: I2C / USB
(3). Logo: Silk-screenedI aser Engraved
(4). Glass: Anti-Reflective/Anti Glare/Vandal-resistant
(5). Interface: HDMI/VGA/DVIUSB/BNC



6. FAQ



Q: Payment methods?
A: T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.



Q: What is the lead time of the products?
A:Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production



Q: How long is the warranty period?
A: Generally the warranty period is one year. It depends on different products.



Q: What is the Product MOQ?
A: Different product has the different MOQ, please contact us sales for detailed information.



Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional technical team.



Q: Can you provide OEM service?
A: yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply



Q: How can I trust your product quality?
A: The company has advanced the incoming inspection, on-line test and reliability test equipment and system, the company products through the ROHS,CE testing
