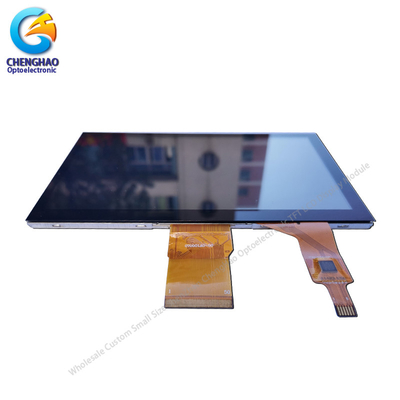

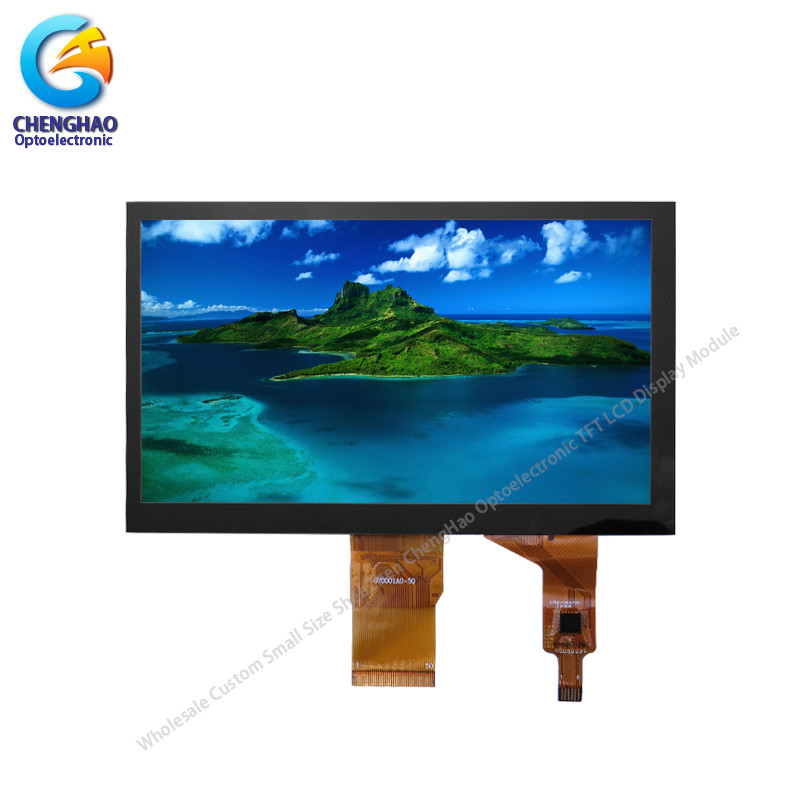

7" 800x480 Industrial Touch Screen Monitor 250cd/M2 Capacitive Panel

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH700WV01C-CTC

Detail Information

Product Name: 7" Industrial Touch Screen Monitor Size / Inch: 7
Resolution: 800x480 Model Size (W*H*T): 164.9(W)*100.0(H)*4.68(T) Mm
Display Area (W*H): 154.08(W)*85.92(H) Mm Color: 16.7M
Connection: Connector
High Light:

800x480 Industrial Touch Screen Monitor

,

250cd M2 Industrial Touch Screen Monitor

,

800x480 LCD Touch Screen Monitor

Product Description

7" 800x480 Industrial Touch Screen Monitor 250cd/M2 Capacitive Panel



7" Industrial Touch Screen Monitor 250cd/M2 800x480 TFT LCD With Capacitive Panel



1. Specification

ITEM STANDARD VALUES UNITS
TFT/CTPActive area 154.08(W)×85.92(H) mm
TFTDotpitch 0.1926(W)×0.1790(H) mm
Interface 24-bit Parallel RGB Interface --
Operating temperature -10~+60
Storage temperature -20~+70
Weight TBD g
Size  7 inch
Resolution 800(RGB)*480 Pixel
Connection Connector --
Color 16.7 M
Model Name CH700WV01C-CTC --


2. Description

Display model CH700WV01C-CTC is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving circuit , capacitive touch panel and a back light system. This TFT LCD has a 7 inch diagonally measured active display area with 800*480 dot (800 horizontal by 480 vertical pixel) resolution.

7" 800x480 Industrial Touch Screen Monitor 250cd/M2 Capacitive Panel 0

3. Quick detail

*LCD name: 7" Industrial Touch Screen Monitor 250cd/M2 800x480 TFT LCD With Capacitive Panel
* Part No.: CH700WV01C-CTC
* Size.: 7.0 inch
* With touch panel or not: YES
* Touch type: Capacitive
* Display type: TFT
* Display colors: 16.7M ( Optional )
* Resolution (pixels): 320(RGB)*240 (Optional )
* Pixel pitch: 0.1926(W)×0.1790(H) mm
* Viewing direction: 12:00
* CTP Driver IC : GT911
* Display mode: TN / Transmissive/Normally white
* Overall size: 164.9(W)×100.0(H)×4.68(T) mm
* Viewing area:
* Active Area: 154.08(W)×85.92(H) mm
* Luminance: 250 cd/m2 ( optional )
* Contrast: 500
* Interface type: SPI / RGB / MCU / MIPI / LVDS (optional )
* Pin NO.: 50pins (optional )
* Connecting type: Connector
* Input voltage: 2.8 - 3.3V
* Backlight type and color: LED backlight/white
Backlight: 6 LED parallel
* LED Life span: 20000h



3. Drawings



Notes:
(1) Display Type : 7" TFT
(2) Viewing Direction : 12:00
(3) CTP Driver IC : GT911
(4) Polarizer Mode : TN / Transmissive/Normally white
(5) Operating Temp : -20~60 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

7" 800x480 Industrial Touch Screen Monitor 250cd/M2 Capacitive Panel 1




4. Application



Products are widely used in general communications, household appliances, industrial control, medical equipment, POS machines,instruments, meters, GPS navigation, digital photo frames, netbooks, financial electronics, communication electronics, consumer electronics, information appliances, culture, education, sports and entertainment, etc. field. Such as Speedometer , Marine , Game Machines ,  Industrial , Pos , Medical Machines and so on .



7" 800x480 Industrial Touch Screen Monitor 250cd/M2 Capacitive Panel 2


5. Our Service



1. And if it is necessary for you to have technical support in the process of development, we can provide it for you at any time.
2. Good quality and credit is the soul of our company. Before shipment, we will guarantee that the products will be done the aging test and 100% of the visual and electric logging.
3. When the product upgrades, we will notify the related clients in advance, and the upgrading product can be perfectly compatible with the old ones.
4. The warranty period of the product is 12 months.



6. FAQ



Q1: Are you manufacturer ?
A: Yes, we are manufacturer.

Q2: How long is your delivery time?
A: Normally 3-5 working days after payment; Special requirement orders, delivery time is negotiable.

Q3: If the products can't work after receiving it,what should I do?
A: We will replace new items for you at once and then we make the judgement for the issue.

Q4: Do you accept OEM design?
A: Yes,we do.We can design according to your requirement, MOQ usually 100-1000.

Q5: Do you accept pay 30% in advance?
A: Yes,we do.We can start to prepare your goods when receive 30% payment, and send them after get the rest 70% payment.

Q6: What payment terms you accept?
A: We accept Paypal, T/T, Western Union, Wechat, Alipay, in Cash (RMB or USD).
