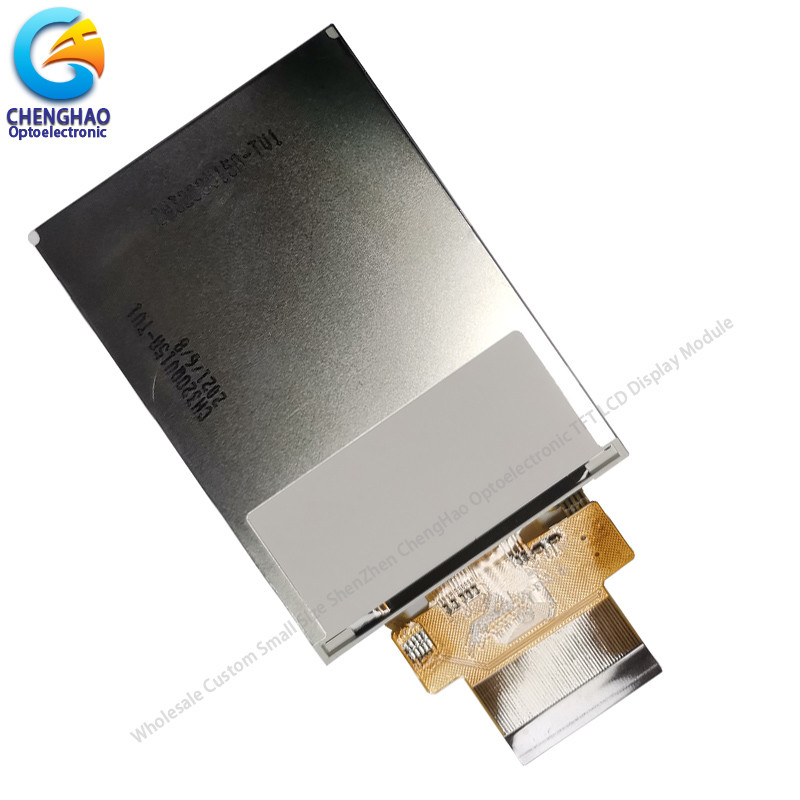

3.2inch TFT LCD Color Monitor With 18 Bit RGB And SPI Multi Inerface

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH320QV15A

Detail Information

Product Name: 3.2inch Tft Lcd Color Monitor Driver IC: ILI9341V
Module Size: 54.34(W)×77.7(H)×2.4(T) Mm Active Area: 48.6(W)×64.8(H) Mm
Dotpitch: 0.2025(W)×0.2025(H) Mm Interface: SPI / RGB
Operating Temperature: -20~+70 ℃
High Light:

3.2inch TFT LCD Color Monitor

,

TFT LCD Color Monitor

,

3.2inch TFT Color Display

Product Description

3.2inch TFT LCD Color Monitor With 18 Bit RGB And SPI Multi Inerface



3.2inch Tft Lcd Color Monitor 240x320 Dot Display Module 18 Bit RGB And SPI Multi-Inerface



1. Specification



Active area 48.6(W)×64.8(H)
Dot pitch 0.2025(W)×0.2025(H)
Interface 4-lines_8bit / 3-lines_9bit SPI
8-/ 9-/16-/18-bit8080-seriessystem interface
6-/16-/18-bitRGB interface+SPI
Operating temperature -20~+70 ℃
Storage temperature -30~+80 ℃
Back Light 6White LED InParallel
Weight TBD g
Module Size 3.2 inch


2. Description

* CH320QV15A is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight.
* It is 240(RGB)*320 resolution TFT LCD module.
* Backlight with different brightness options from 200 - 1500cd/m2 are available.
* Specific touch panel can be designed & customized.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.



3. Drawings



3.2inch TFT LCD Color Monitor With 18 Bit RGB And SPI Multi Inerface 0


4. Application



3.2inch TFT LCD Color Monitor With 18 Bit RGB And SPI Multi Inerface 1


5. Our Service



(1) Fully / Semi-automated production line ensure the best quality.
(2) Custom Design,can specially meet your needs.
(3) Fast Delivery ,about 20 days for lead time
(4) Samples available on request; Small MOQ orders can be negotiated.
(5) Provide best pre-sale and after-sale service to you.



6. Why Choose Us ?



The high quality products enable it to build a long-term relationship with world-famous enterprises in the industries
(1) Competitive Price
Own-owned factories offer lower prices and better quality assurance.


(2) Strong Technical Strength
We are a top supplier specializing in the production of color LCD screens. We have a technical team with rich experience in product research and development, and can provide customers with professional technical support and customized consulting services at any time, which is very important for cooperative customers with special project needs.


(3) Long-term Partner
Products are sold to more than 40 countries, so from Chenghao Optoelectronic you can get more stable supplying promise;


(4) Professional Service
We have a professional after-sales team that can provide you with after-sales consulting services 24 hours a day.At the same time, if you encounter any problems in the process of using our products, you can give us feedback, and our technical engineers will provide you with online remote consulting services at any time.


(5) Quality to be ensure
All panels are 100% brand new, without false panels; All packages have labels and serial numbers for easy viewing by customers;



7. FAQ



Q1: Are you manufacturer ?
A: Yes, we are manufacturer.



Q2: How long is your delivery time?
A: Normally 7 working days after payment; Special requirement orders, delivery time is negotiable.



Q3: If the products can't work after receiving it,what should I do?
A: We will replace new items for you at once and then we make the judgement for the issue.



Q4: Do you accept OEM design?
A: Yes,we do.We can design according to your requirement, MOQ usually 100-1000.



Q5: Do you accept pay 30% in advance?
A: Yes,we do.We can start to prepare your goods when receive 30% payment, and send them after get the rest 70% payment.



Q6: What payment terms you accept?
A: We accept Paypal, T/T, Western Union, Wechat, Alipay, in Cash (RMB or USD).
