2.31" High Brightness 500nits LCD Display Module ILI9342C Driver IC

Minimum Order Quantity : 2 PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7 - 15 working days
Payment Terms : T/T Supply Ability : 200K PCS / Month
Place of Origin: ShenZhen , China Brand Name: OEM
Certification: ROHS 、ISO9001 、CE Model Number: CH231QV07A

Detail Information

Product Name: Small Lcd Display Screen Model Size (W*H*T)mm: 51.0*45.8*2.35
Display Area (W*H)mm: 46.752*35.064 Color: 65k/262k
Pin Number: 36 Display Mode: Transmissive /Normally White/TN
Viewing: 6:00 Connection: Soldering
High Light:

500nits LCD Display Module

,

ILI9342C LCD Display Module

,

500nits High Brightness LCD Module

Product Description

2.31" High Brightness 500nits LCD Display Module ILI9342C Driver IC



1. Specification of LCD Screen Module



ITEM STANDARD VALUES UNITS
LCD type 2.31" Tft --
Dot arrangement 320(RGB)*240 dots
Color filter array RGB vertical stripe --
Display mode TN/Transmission/Normally White --
Viewing Direction 6 O'clock --
Driver IC ILI9342C --
Module size 51.0*45.8*2.35 mm



2. Description of LCD Screen Module



* CH231QV07A is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, RTP.

* It is 320(RGB)x240 resolution TFT LCD module.

* Backlight with different brightness options from 200 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.


3. Features of LCD Screen Module

* Interface:

   3-Line SPI + 6Bit Serial RGB (Optional)
   Can de designed as customer’s requirements.(Including FPC shape and size can be customized)


* BLU:

   4 LED (4*LED in parallel) IBL= 80mA, VBL= 3.2 V;
   Can be designed as requirements.


* LCM outline dimension:

  51.0(H)*45.8(V)*2.35(T) mm
  Can be customized as requirements.


* Touch Panel
  This model does not have a touch panel, touch panel can be customized as requirements.



Temperature

   Working : -10~60

   Storaging: -20~70



* Weight : TBD g



We also have several other MP products with similar configurations,but with different capacitive & touch screen interface & pin map & FPC shape & outline dimension & brightness & thickness etc.

Please contact us to provide datasheet for your checking.

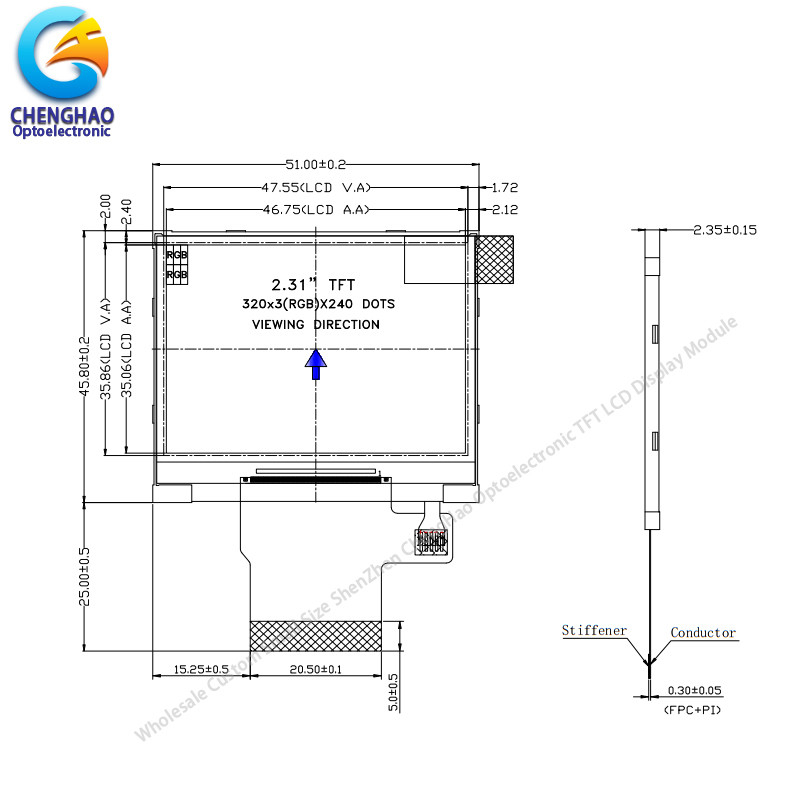

4. Drawings of LCD Screen Module

Notes:
(1) Display Type : 2.31" TFT
(2) Viewing Direction : 6:00
(3) Lcd Drive IC : ILI9342C
(4) Polarizer Mode : Transmissive/Positive
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

2.31" High Brightness 500nits LCD Display Module ILI9342C Driver IC 0


5. Application of LCD Screen Module
2.31 inch Color Lcd monitor module,widely used in medical,communication,instruments and other Application.

2.31" High Brightness 500nits LCD Display Module ILI9342C Driver IC 1
