Custom 1.8" Mini LCD Display Module ST7735S Drive IC TFT Screen Panel

Minimum Order Quantity : 2 PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7 - 15 working days
Payment Terms : T/T Supply Ability : 200K PCS / Month
Place of Origin: ShenZhen , China Brand Name: OEM
Certification: ROHS 、ISO9001 、CE Model Number: CH180QQ20A

Detail Information

Product Name: 1.8" Mini Lcd Display Module Display Type: 1.8" Tft
Viewing Direction: 6:00 Lcd Drive Ic: ST7735S
Polarizer Mode: Transmissive/Positive Operating Temp: -20~70 ℃
Storage Temp: -30~80 ℃ Unmarker Tolerance: ±0.2
High Light:

1.8" Mini LCD Display Module

,

ST7735S LCD Display Module

,

ST7735S LCD Screen Panel

Product Description

Custom 1.8" Mini LCD Display Module ST7735S Drive IC TFT Screen Panel



1.8" Mini Lcd Display Module Custom 24 Pin Tft Screen Panel With ST7735S Drive IC



 1. Specification of Min Lcd Display Module



Mode  CH180QQ20A
Display Area (W*H)mm  28.032*35.04
Color  65K
Display Mode  Normally White TN,Transmissive
Viewing Direction  6:00
Connection  Connector
Pin number  24
Interface  8bit 8080 system interface
Module Size   1.8 inch



 2. Product Description

* ChengHao Display model CH180QQ20A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving IC, a back-light and FPC.
* This TFT LCD has a 1.8 (vertical screen) inch diagonally measured active display area
 with 128*160 resolution.
* The driver used for this project is the ST7735S or compatible and can display 16M colors
 by R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module.
* In addition,FPC can also be customized according to customer requirements, such as
modifying back-light and FPC structure,interface definition, etc.
* RoHS Compliance & Halogen Free.



 3. Product Drawings

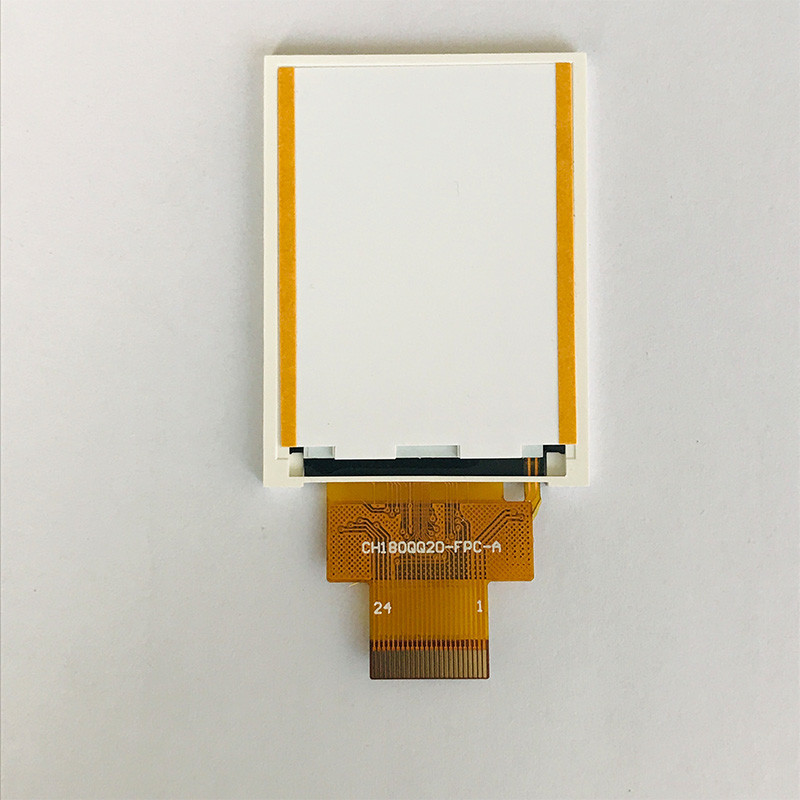

Custom 1.8" Mini LCD Display Module ST7735S Drive IC TFT Screen Panel 0



 4. FAQ

1. who are we?
We are based in Guangdong, China, start from 2016, sell to North America(15.00%), Eastern Europe
 (14.00%),Western Europe(13.00%),Eastern Asia(8.00%),South Asia(8.00%),Oceania(8.00%),Southeast Asia(8.00%),Southern Europe(6.00%),Northern Europe(6.00%),South America(5.00%),Mid East(5.00%), Central America(2.00%),Domestic Market(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

3.what can you buy from us?
LCD display,LCD screen,Tft

4. why should you buy from us not from other suppliers?
Chenghao Optoelectronics can provide one-stop color TFT module solutions for various shapes, and
can change FPC, pin definition, driver and motherboard according to customers' requirements.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,D/P D/A,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,
 Hindi,Italian



 5. Our WorkShop

Custom 1.8" Mini LCD Display Module ST7735S Drive IC TFT Screen Panel 1

Custom 1.8" Mini LCD Display Module ST7735S Drive IC TFT Screen Panel 2



 6. Merchant recommendation



Module Type Display Area Display Mode
1.44 inch 25.50 * 26.50 mm Normally White IPS, Transmissive
1.44 inch 25.50 * 26.50 mm Normally White TN, Transmissive
1.50 inch 29.76 * 22.32 mm Normally Black IPS, Transmissive
1.54 inch 27.72 * 27.72 mm Normally Black IPS, Transmissive
1.54 inch 27.74 * 27.74 mm Normally Black IPS, Transmissive
1.77 inch 28.03 * 35.04 mm Normally White TN, Transmissive
1.80 inch 28.03 * 35.04 mm Normally White TN, Transmissive
2.00 inch 30.60 * 40.80 mm Normally White TN, Transmissive
2.10 inch Circular display area Normally White IPS, Transmissive
2.31 inch 46.75 * 35.06 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White IPS, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White TN, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White IPS, Transmissive
3.00 inch 36.72 * 65.28 mm Normally Black IPS, Transmissive
3.20 inch 48.60 * 64.80 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally Black IPS, Transmissive
4.00 inch 51.84 * 86.4 mm Normally Black IPS, Transmissive
4.00 inch 71.86 * 70.18 mm Normally Black IPS, Transmissive
4.30 inch 95.04 * 53.86 mm Normally White TN, Transmissive
4.30 inch 95.04 * 53.86 mm Normally Black IPS, Transmissive
5.00 inch 110.88 * 62.83 mm Normally White TN, Transmissive
5.00 inch 108.00 * 64.8 0mm Normally Black IPS, Transmissive
5.50 inch 68.04 * 120.96 mm Normally Black IPS, Transmissive
6.00 inch 74.52 * 132.48 mm Normally Black IPS, Transmissive
7.00 inch 154.08 * 85.92 mm Normally White TN, Transmissive
7.00 inch 153.6 * 90 mm Normally White TN, Transmissive
7.00 inch 154.21 mm * 85.92 mm Normally Black IPS, Transmissive
8.00 inch 107.64 * 172.22 mm Normally Black IPS, Transmissive
9.00 inch 196.61 * 114.15 mm Normally White TN, Transmissive
10.1 inch 135.36 * 216.58 mm Normally Black IPS, Transmissive
