Mcu Spi 3.5in Tft Lcd Display Module 280cd/m2 Dot Matrix Tft Screen
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsApp : +8615919862398
| Minimum Order Quantity : | 2 PCS | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7 - 15 working days |
| Payment Terms : | T/T | Supply Ability : | 200K PCS / Month |
| Place of Origin: | ShenZhen , China | Brand Name: | OEM |
|---|---|---|---|
| Certification: | ROHS 、ISO9001 、CE | Model Number: | CH350QV06A |
|
Detail Information |
|||
| LCD TYPE: | TFT | POLARIZER TYPE: | TRANSMISSIVE |
|---|---|---|---|
| DISPLAY TYPE: | POSITIVE | LCD COLOR: | 320x240 |
| VIEWING ANGLE: | 6:00 | OPERATING TEMP: | -20°C ~ +70°C |
| STORAGE TEMP: | -30°C ~ +80°C | ||
| High Light: | Ips Square Tft Screen Module,320x240 Square Tft Screen Module,3.5 Inches FPC Tft Lcd Module |
||
Product Description
3.5 Inches Color Lcd Display Custom Full Hd Ips Square Tft Screen Module
1.Product parameter
| LCD TYPE | TFT |
| POLARIZER TYPE | TRANSMISSIVE |
| DISPLAY TYPE | POSITIVE |
| LCD COLOR | 320*3(RGB)*240 |
| VIEWING ANGLE | 6:00 |
| OPERATING TEMP | -20°C ~ +70°C |
| STORAGE TEMP | -30°C ~ +80°C |
2. Product Drawings
3.Product Description

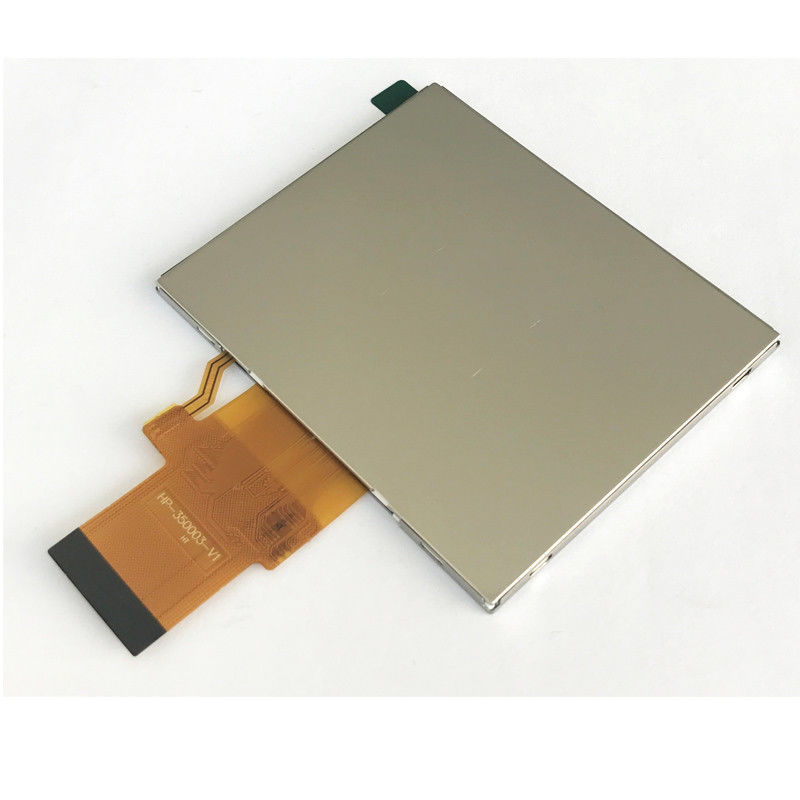

ChengHao Display model CH350QV06A is a color active matrix thin film transistor (TFT)
liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This
model is composed of a TFT LCD panel, a driving IC, a back-light and FPC.
This TFT LCD has a 3.5 (Square screen) inch diagonally measured active display area
with 320*3(RGB)*240 resolution.
The driver used for this project is the HX8238D or compatible and can display 65k/262k
colors by R.G.B. signal input. The driver is mounted on the glass and the interconnection
via FPC including components to drive the display module.
In addition, FPC can also be customized according to customer requirements, such as
modifying back-light and FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.
TFT LCDs (Thin Film Transistor LCDs) give your product a beautiful appearance with high
-resolution, full-color graphics. Our modern, automated LCD factories can customize them
for extreme temperature functionality, sunlight readability, custom FPC, custom backlight,
and other value-added features to suit your needs. Whether you need a stand-alone display
or fully integrated assembly with touch and cover lens, our experienced team can develop
the right solution for your project
| Module Type | Display Area | Display Mode |
| 1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.1 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
