Mcu Spi 3.5in Tft Lcd Display Module 280cd/m2 Dot Matrix Tft Screen
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
Minimum Order Quantity : | 100 pcs | Price : | / |
---|---|---|---|
Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
Place of Origin: | ShenZhen, China | Brand Name: | Chenghao/Oem |
---|---|---|---|
Certification: | ROHS、ISO9001、CE | Model Number: | CH350HV37A-CT |
Document: | Product Brochure PDF |
Detail Information |
|||
MODEL NO.: | CH350HV37A-CT | Module Type: | 3.5 Inch |
---|---|---|---|
Operating Temperature: | -20~+70 ℃ | Storage Temperature: | -30~+80 ℃ |
Back Light: | 6 White LED Inparallel | Weight: | TBD G |
Display Mode: | TN/Transmissive/Normally White | Number Of Dots: | 320*480 |
Interface: | TFT: SPI、MCU、SPI+RGB CTP:I2C | Luminace: | 300nits |
Highlight: | CH350HV37A-CT Sunlight Readable Lcd Module,CTP I2C Sunlight Readable Lcd Module,300nits Tft Lcd Clear Screen |
Product Description
3.5 Tiny Small Lcd Display Module Sunlight Readable Color Tft Lcd
Clear Screen With Capacitive Touch Panel
MODEL NO. | CH350HV37A-CTTCYC-A73VH053HC |
Module type | 3.5 inch |
Operating temperature | -20~+70 ℃ |
Storage temperature | -30~+80 ℃ |
Weight | TBD g |
Display Mode | TN/Transmissive/Normally white |
Number of Dots | 320*480 |
Interface | TFT: SPI,MCU,SPI+RGB CTP:I2C |
1> ISO9001 certificated, Factory Direct Supplied
2> RoHS Compliant, Lead Free, Reach Compliant
3> Competitive Price and Short Lead-time
4> Professional Team with Rich Experiences in Design/Mfg/Quality Control
5> Small MOQ Support & Fast Response to Customers
6> Long Product Life Time

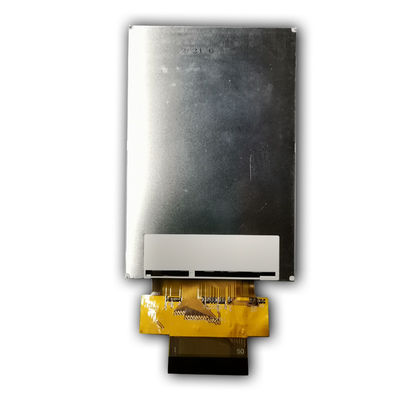

ChengHao Display model CH350HV37A-CT is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving circuit, a high brightness back-light, a capacitive touch screen and FPC.
The TFT display is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This TFT LCD has a 3.5 (3:2) inch diagonally measured active display area with HVGA (320 horizontal by 480 vertical pixel) resolution.
The driver used for this project is the ILITEK ILI9488 or compatible and can display 262K colors by 18 bit R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module. Support SPI, MCU, SPI + RGB interface.
In addition, FPC can also be customized according to customer requirements, such as modifying FPC and LENS structure, interface definition, etc.
RoHS Compliance & Halogen Free.
About Customization:
all of our products can be with or without touch, whatever you choose. Backlight brightness and FPC interface can be customized according to your requirements.
Module Type | Display Area | Display Mode |
1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
2.10 inch | Circular display area | Normally White IPS, Transmissive |
2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
10.10 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
Packaging & Shipping:
Packaging Details:
1. All the products are packed in right way to keep it safe.
2. For small sizes of products we use tray + carton,
3. For bigger sizes we use foam slot + carton.
4. we also design packages according to customers' requirements
