IPS 280cd/m2 Negative Lcd Display Module 240x320 Dot Matrix Lcd Panel

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH240QV52A-CT

Detail Information

LCD Type: 2.4 Inches TFTWith CTP Dot Arrangement: 240(RGB)×320 Dots
Color Filter Array: RGB Vertical Stripe Display Mode: IPS/ Transmission/ NormallyBlack
Viewing Direction: 80/80/80/80 Driver IC: ST7789V
CTPtype: LENS Glass+ITO Film+ Adhesive Surface Treatment: 6H
Luminace: 280cd/m2
High Light:

IPS Negative Lcd Display Module

,

280cd/m2 Negative Lcd Display Module

,

240x320 Dot Matrix Lcd Panel

Product Description

2.4 Inch Negative Lcd Display Module 240*320 Dot Matrix Small Tft Lcd Panel

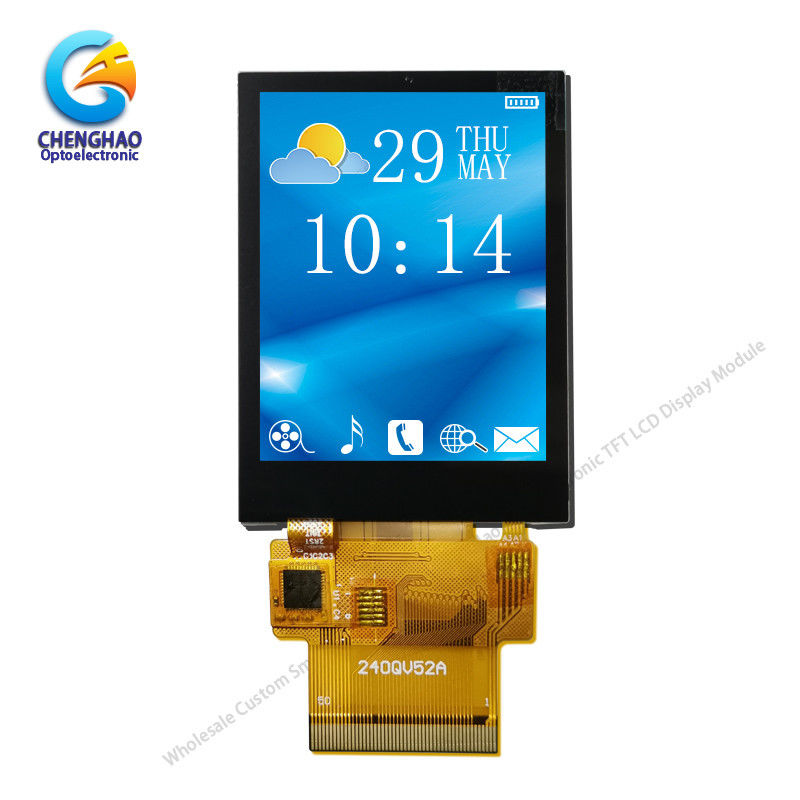

IPS 280cd/m2 Negative Lcd Display Module 240x320 Dot Matrix Lcd Panel 0



LCD type 2.4’’TFTWith CTP
Dot arrangement 240(RGB)×320 dots
Color filter array RGB vertical stripe
Display mode IPS/ Transmission/ NormallyBlack
Viewing Direction 80/80/80/80
Driver IC ST7789V
CTPtype LENS Glass+ITO Film+ Adhesive
Surface Treatment 6H
Luminace 280cd/m2


1> ISO9001 certificated, Factory Direct Supplied
Company Strenghth:



2> RoHS Compliant, Lead Free, Reach Compliant



3> Competitive Price and Short Lead-time



4> Professional Team with Rich Experiences in Design/Mfg/Quality Control



5> Small MOQ Support & Fast Response to Customers



6> Long Product Life Time



IPS 280cd/m2 Negative Lcd Display Module 240x320 Dot Matrix Lcd Panel 1



**ChengHao Display model CH240QV52A-CT is a color active matrix thin film transistor (TFT)

liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model

is composed of a TFT LCD panel, a driving circuit, a high brightness back-light, a capacitive

touch screen and FPC.

**The TFT display is a color active matrix thin film transistor (TFT) liquid crystal display (LCD)

that uses amorphous silicon TFT as a switching device. This TFT LCD has a 2.4 (3:4) inch

diagonally measured active display area with QVGA (240 horizontal by 320 vertical pixel)

resolution.

**The driver used for this project is the Sitronix ST7789V or compatible and can display 262K

colors by 18 bit R.G.B. signal input. The driver is mounted on the glass and the interconnection

via FPC including components to drive the display module. Support SPI, MCU, SPI + RGB interface.

**In addition, FPC can also be customized according to customer requirements, such as modifying

FPC and CTP structure, interface definition, etc.

**RoHS Compliance & Halogen Free.

IPS 280cd/m2 Negative Lcd Display Module 240x320 Dot Matrix Lcd Panel 2



IPS 280cd/m2 Negative Lcd Display Module 240x320 Dot Matrix Lcd Panel 3

IPS 280cd/m2 Negative Lcd Display Module 240x320 Dot Matrix Lcd Panel 4

IPS 280cd/m2 Negative Lcd Display Module 240x320 Dot Matrix Lcd Panel 5













IPS 280cd/m2 Negative Lcd Display Module 240x320 Dot Matrix Lcd Panel 6

About Customization:

all of our products can be with or without touch, whatever you choose. Backlight brightness and FPC

interface can be customized according to your requirements.



IPS 280cd/m2 Negative Lcd Display Module 240x320 Dot Matrix Lcd Panel 7



Module Type Display Area Display Mode
1.44 inch 25.50 * 26.50 mm Normally White IPS, Transmissive
1.44 inch 25.50 * 26.50 mm Normally White TN, Transmissive
1.50 inch 29.76 * 22.32 mm Normally Black IPS, Transmissive
1.54 inch 27.72 * 27.72 mm Normally Black IPS, Transmissive
1.54 inch 27.74 * 27.74 mm Normally Black IPS, Transmissive
1.77 inch 28.03 * 35.04 mm Normally White TN, Transmissive
1.80 inch 28.03 * 35.04 mm Normally White TN, Transmissive
2.00 inch 30.60 * 40.80 mm Normally White TN, Transmissive
2.10 inch Circular display area Normally White IPS, Transmissive
2.31 inch 46.75 * 35.06 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White IPS, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White TN, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White IPS, Transmissive
3.00 inch 36.72 * 65.28 mm Normally Black IPS, Transmissive
3.20 inch 48.60 * 64.80 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally Black IPS, Transmissive
4.00 inch 51.84 * 86.4 mm Normally Black IPS, Transmissive
4.00 inch 71.86 * 70.18 mm Normally Black IPS, Transmissive
4.30 inch 95.04 * 53.86 mm Normally White TN, Transmissive
4.30 inch 95.04 * 53.86 mm Normally Black IPS, Transmissive
5.00 inch 110.88 * 62.83 mm Normally White TN, Transmissive
5.00 inch 108.00 * 64.8 0mm Normally Black IPS, Transmissive
5.50 inch 68.04 * 120.96 mm Normally Black IPS, Transmissive
6.00 inch 74.52 * 132.48 mm Normally Black IPS, Transmissive
7.00 inch 154.08 * 85.92 mm Normally White TN, Transmissive
7.00 inch 153.6 * 90 mm Normally White TN, Transmissive
7.00 inch 154.21 mm * 85.92 mm Normally Black IPS, Transmissive
8.00 inch 107.64 * 172.22 mm Normally Black IPS, Transmissive
9.00 inch 196.61 * 114.15 mm Normally White TN, Transmissive
10.10 inch 135.36 * 216.58 mm Normally Black IPS, Transmissive



Packaging & Shipping:
Packaging Details:

1. All the products are packed in right way to keep it safe.

2. For small sizes of products we use tray + carton,

3. For bigger sizes we use foam slot + carton.

4. we also design packages according to customers' requirements





IPS 280cd/m2 Negative Lcd Display Module 240x320 Dot Matrix Lcd Panel 8
