2.31inch LCD Display Module 36 Pin 320*240 QVGA MCU Interface
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsApp : +8615919862398
| Minimum Order Quantity : | 100 pcs | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
| Place of Origin: | ShenZhen, China | Brand Name: | Chenghao/Oem |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | CH350HV40A-T |
|
Detail Information |
|||
| LCD Type: | 3.5 Inch TFT With RTP | Dot Arrangement: | 320(RGB)×480 Dots |
|---|---|---|---|
| Color Filter Array: | RGB Vertical Stripe | Display Mode: | IPS/ Transmission/ NormallyBlack |
| Viewing Direction: | 80/80/80/80 | Driver IC: | ILI9488 |
| Module Size: | 56.54(W)×84.96(H)×3.5(T)mm | Active Area: | 48.96(W)×73.44(H)mm |
| Dotpitch: | 0.153(W)×0.153(H)mm | Interface: | 4-lines_8bit / 3-lines_9bit SPI 8-/ 9-/16-/18-bit8080system Interface 16-/18-bitRGB Interface |
| Operating Temperature: | -20~+70 ℃ | Storage Temperature: | -30~+80 ℃ |
| Back Light: | 6 White LED Inparallel | Weight: | TBD G |
| High Light: | Mcu Spi Tft Lcd Display Module,3.5in Tft Lcd Display Module,280cd/m2 Dot Matrix Tft Screen |
||
Product Description
3.5 Inch Serial Tft Lcd Display Module Mini Dot Matrix Color Tft Touch
Screen With Mcu / Spi + Rgb Multi-Interface
| LCD type | 3.5’’TFTWith RTP |
| Dot arrangement | 320(RGB)×480 dots |
| Color filter array | RGB vertical stripe |
| Display mode | IPS/ Transmission/ NormallyBlack |
| Viewing Direction | 80/80/80/80 |
| Driver IC | ILI9488 |
| Module size | 56.54(W)×84.96(H)×3.5(T) mm |
| Interface | SPI,MCU,SPI+RGB |
| Luminace | 280cd/m2 |
| Active area | 48.96(W)×73.44(H)mm |
| Dot pitch | 0.153(W)×0.153(H)mm |
| Interface | 4-lines_8bit / 3-lines_9bit SPI 8-/ 9-/16-/18-bit8080system interface 16-/18-bitRGB interface |
| Operating temperature | -20~+70 ℃ |
| Storage temperature | -30~+80 ℃ |
| Back Light | 6 White LED inparallel |
| Weight | TBD g |
Company Strenghth:
1> ISO9001 certificated, Factory Direct Supplied
2> RoHS Compliant, Lead Free, Reach Compliant
3> Competitive Price and Short Lead-time
4> Professional Team with Rich Experiences in Design/Mfg/Quality Control
5> Small MOQ Support & Fast Response to Customers
6> Long Product Life Time

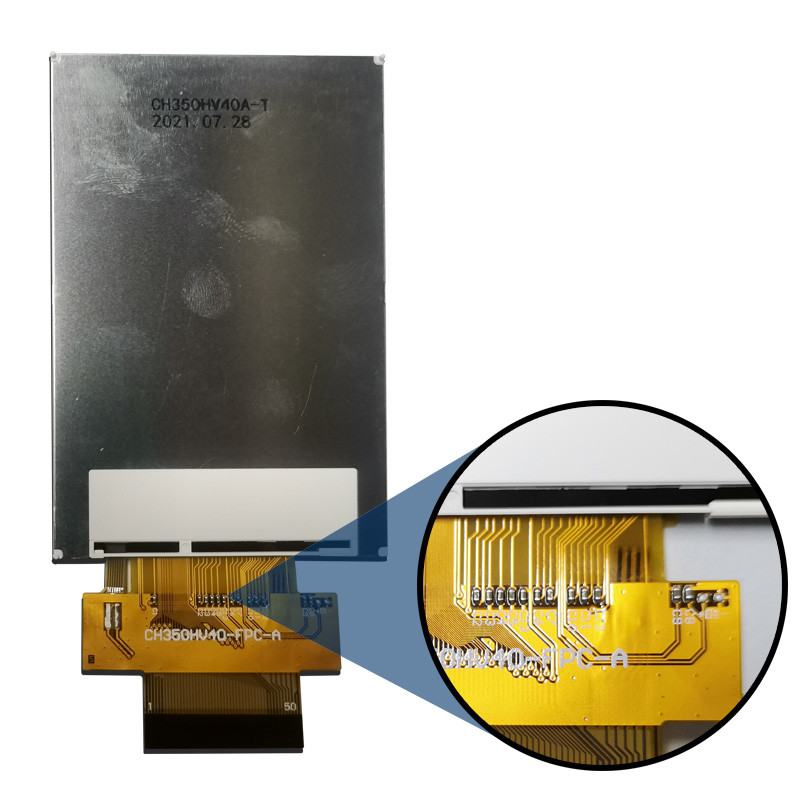

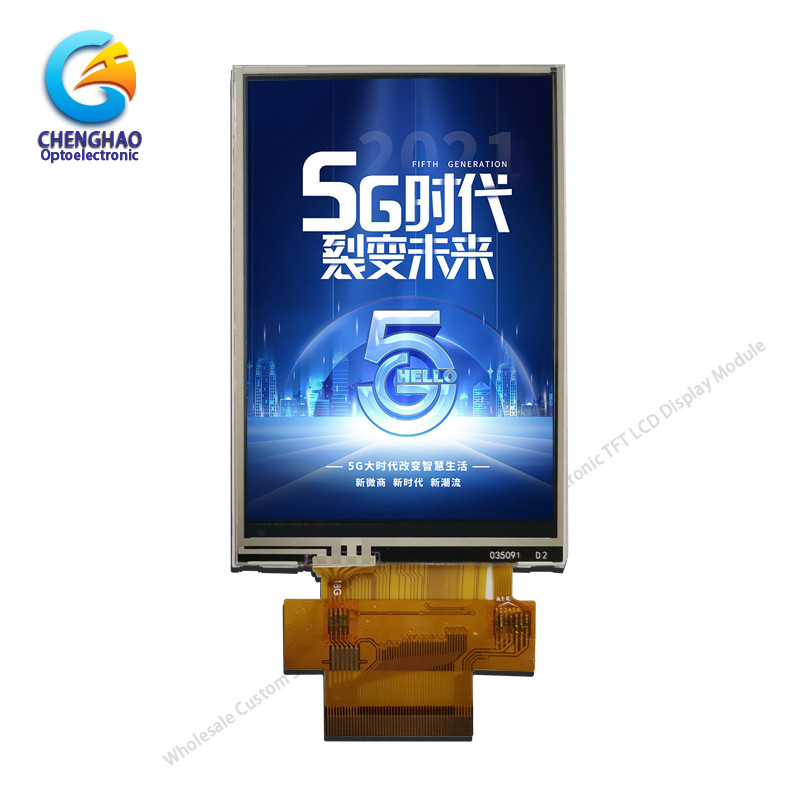

*ChengHao Display model CH350HV40A-T is a color active matrix thin film transistor (TFT) liquid
