200cd/m2 Graphic LCD Display Module CH900WS01A 1024x600 Tft Screen Module
200cd/m2 Graphic LCD Display Module CH900WS01A 1024x600 Tft Screen Module
200cd/m2 Graphic LCD Display Module CH900WS01A 1024x600 Tft Screen Module 200cd/m2 Graphic LCD Display Module CH900WS01A 1024x600 Tft Screen Module 200cd/m2 Graphic LCD Display Module CH900WS01A 1024x600 Tft Screen Module 200cd/m2 Graphic LCD Display Module CH900WS01A 1024x600 Tft Screen Module
Contact Now

200cd/m2 Graphic LCD Display Module CH900WS01A 1024x600 Tft Screen Module

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 15-20 working days
Payment Terms : T/T Supply Ability : 100Kpcs/month
Place of Origin: ShenZhen, China Brand Name: OEM/ODM
Certification: ROHS、ISO9001、CE Model Number: CH900WS01A

Detail Information
Module Type: 9 Inch Interface: 24-bit RGB
Backlight Type: White LED Luminace: 200cd/m2
Resolution: 1024*(RGB)*600 Model Size (W*H*T)mm: 210.7*126.4*3.5
Display Area (W*H)mm: 196.61*114.15 Color: 16.7M
High Light:

200cd/m2 Graphic LCD Display Module

,

Graphic LCD Display Module CH900WS01A

,

1024x600 Tft Screen Module

Product Description

9 Inches Large Graphic LCD Display Module 1024x600 Resolution Colour

Tft Screen Modul

200cd/m2 Graphic LCD Display Module CH900WS01A 1024x600 Tft Screen Module 0



MODEL NO. CH900WS01A
Module type 9 inch
Interface 24-bit RGB
Backlight Type White LED
Luminace 200cd/m2
Resolution 1024*(RGB)*600
Model Size (W*H*T)mm 210.7*126.4*3.5
Display Area (W*H)mm 196.61*114.15
Color 16.7M



200cd/m2 Graphic LCD Display Module CH900WS01A 1024x600 Tft Screen Module 1

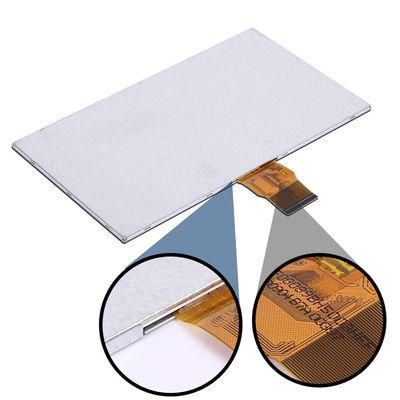

ChengHao Display model CH900WS01A is a color active matrix thin film transistor (TFT) liquid

crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is com

-posed of a TFT LCD panel, a driving IC, a back-light and FPC.
This TFT LCD has a 9 (Horizontal screen) inch diagonally measured active display area with

1024*3(RGB)*600 resolution.
The driver used for this project is the HIMAX or compatible and can display 16M colors by R.G.B.

signal input. The driver is mounted on the glass and the interconnection via FPC including com

-ponents to drive the display module.
In addition, FPC can also be customized according to customer requirements, such as modifying

back-light and FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.

200cd/m2 Graphic LCD Display Module CH900WS01A 1024x600 Tft Screen Module 2

200cd/m2 Graphic LCD Display Module CH900WS01A 1024x600 Tft Screen Module 3

200cd/m2 Graphic LCD Display Module CH900WS01A 1024x600 Tft Screen Module 4

200cd/m2 Graphic LCD Display Module CH900WS01A 1024x600 Tft Screen Module 5



Custom description

FPC can also be customized according to customer requirements, such as modifying

back-light and FPC structure, interface definition, etc.



200cd/m2 Graphic LCD Display Module CH900WS01A 1024x600 Tft Screen Module 6



Module Type Display Area Display Mode
1.44 inch 25.50 * 26.50 mm Normally White IPS, Transmissive
1.44 inch 25.50 * 26.50 mm Normally White TN, Transmissive
1.50 inch 29.76 * 22.32 mm Normally Black IPS, Transmissive
1.54 inch 27.72 * 27.72 mm Normally Black IPS, Transmissive
1.54 inch 27.74 * 27.74 mm Normally Black IPS, Transmissive
1.77 inch 28.03 * 35.04 mm Normally White TN, Transmissive
1.80 inch 28.03 * 35.04 mm Normally White TN, Transmissive
2.00 inch 30.60 * 40.80 mm Normally White TN, Transmissive
2.10 inch Circular display area Normally White IPS, Transmissive
2.31 inch 46.75 * 35.06 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White IPS, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White TN, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White IPS, Transmissive
3.00 inch 36.72 * 65.28 mm Normally Black IPS, Transmissive
3.20 inch 48.60 * 64.80 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally Black IPS, Transmissive
4.00 inch 51.84 * 86.4 mm Normally Black IPS, Transmissive
4.00 inch 71.86 * 70.18 mm Normally Black IPS, Transmissive
4.30 inch 95.04 * 53.86 mm Normally White TN, Transmissive
4.30 inch 95.04 * 53.86 mm Normally Black IPS, Transmissive
5.00 inch 110.88 * 62.83 mm Normally White TN, Transmissive
5.00 inch 108.00 * 64.8 0mm Normally Black IPS, Transmissive
5.50 inch 68.04 * 120.96 mm Normally Black IPS, Transmissive
6.00 inch 74.52 * 132.48 mm Normally Black IPS, Transmissive
7.00 inch 154.08 * 85.92 mm Normally White TN, Transmissive
7.00 inch 153.6 * 90 mm Normally White TN, Transmissive
7.00 inch 154.21 mm * 85.92 mm Normally Black IPS, Transmissive
8.00 inch 107.64 * 172.22 mm Normally Black IPS, Transmissive
9.00 inch 196.61 * 114.15 mm Normally White TN, Transmissive
10.1 inch 135.36 * 216.58 mm Normally Black IPS, Transmissive



200cd/m2 Graphic LCD Display Module CH900WS01A 1024x600 Tft Screen Module 7
