320x240 3.5" TN Ips Tft Screen 1000nits High Backlight Lcd Panel
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsApp : +8615919862398
| Minimum Order Quantity : | 2 PCS | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7 - 15 working days |
| Payment Terms : | T/T | Supply Ability : | 200K PCS / Month |
| Place of Origin: | ShenZhen , China | Brand Name: | OEM |
|---|---|---|---|
| Certification: | ROHS 、ISO9001 、CE | Model Number: | CH800FH03A |
|
Detail Information |
|||
| LCD Type: | 10" TFT | Dot Arrangement: | 800(RGB)×1280 Dots |
|---|---|---|---|
| 800(RGB)×1280: | RGB Vertical Stripe | Display Mode: | Transmissive / Normally Black |
| Viewing Direction: | 85/85/85/85 | Driver IC: | JD9365BC |

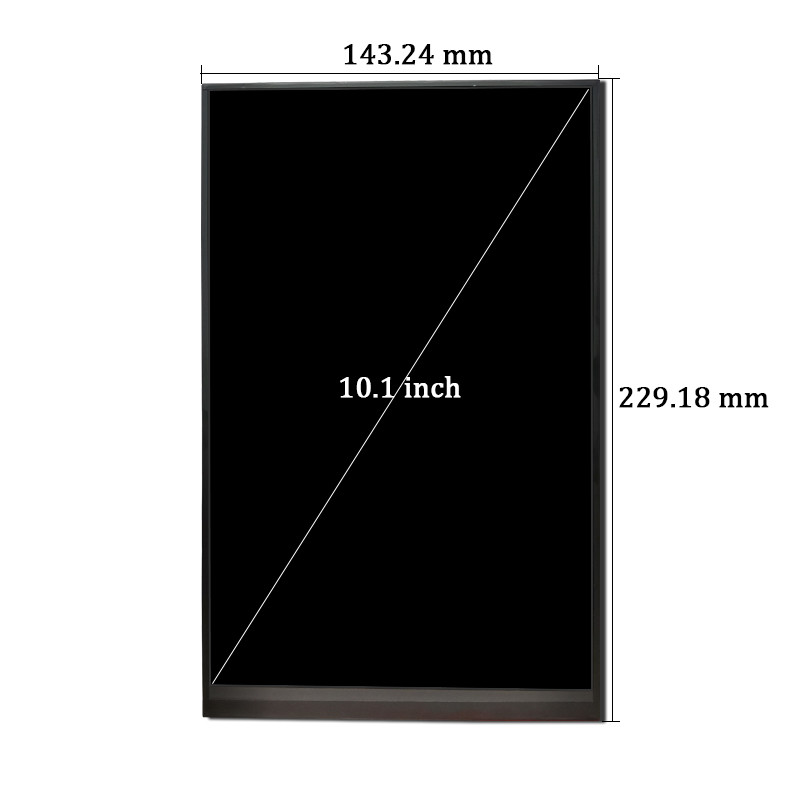

| TFT Size: | 143.24(W)×229.18(H)×2.75(T) Mm | Active Area: | 135.36(W)×216.576(H) Mm |
| Interface: | Mipi /custom | Luminace: | 500nits |
| Backlight Type: | White LED | ||
| High Light: | 10.1in IPS LCD Display,800x1280 IPS LCD Display,JD9365BC IPS LCD Monitor |
||
Product Description
Wholesale Custom 8 Ips Screen 800x1280 Pixel Wide Viewing Angle
Vertical Screen
| MODEL NO. | CH800FH03A |
|
LCD type |
8’’TFT |
| Backlight Type | White LED |
|
Dot arrangement |
800(RGB)×1280dots |
|
Color filter array |
RGB vertical stripe |
|
Display mode |
Transmissive / Normally Black |
| Luminace | 500cd/m2 |
|
Viewing Direction |
85/85/85/85 |
|
Driver IC |
JD9365BC |
|
TFT size |
143.24(W)×229.18(H)×2.75(T)mm |
|
Active area |
135.36(W)×216.576(H)mm |
| Interface | mipi interface |
| Backlight Type | White LED |
| Luminace | 500 nits |
ChengHao Display model CH800FH03A is a color active matrix thin film transistor (TFT) liquid
crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is com
-posed of a TFT LCD panel, a driving IC, a high brightness back-light and FPC.
This TFT LCD has a 8 (16:10) inch diagonally measured active display area with WXGA (800
horizontal by 1280 vertical pixel) resolution.
The driver used for this project is the JD9365BC and can display 16M colors by 24 bit R.G.B. sig
-nal input. The driver is mounted on the glass and the interconnection via FPC including compon
-ents to drive the display module. Support RGB interface.
In addition, FPC can also be customized according to customer requirements, such as modifying
back-light and FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.
| Module Type | Display Area | Display Mode |
| 1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.1 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
