IPS 480*800 IC ST7701S HD TFT Display 2 lane MIPI DSI Interface
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
| Minimum Order Quantity : | 100 pcs | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7 - 15 working days |
| Payment Terms : | T/T | Supply Ability : | 200K PCS / Month |
| Place of Origin: | ShenZhen , China | Brand Name: | OEM |
|---|---|---|---|
| Certification: | ROHS 、ISO9001 、CE | Model Number: | CH800FH03A |
| Document: | Product Brochure PDF |
|
Detail Information |
|||
| Module Type: | 10.1"TFT | Display Mode: | IPS/Transmissive/Normally Black |
|---|---|---|---|
| Number Of Dots: | 800*3(RGB)*1280 | Viewing Direction: | 85/85/85/85 |
| Module Size: | 143.24(W)*229.18(H)*2.75(T)mm | TFT Active Area: | 135.36(W)*216.576(H)mm |
| Interface: | MIPI | ||
| Highlight: | 10.1" IPS TFT Display,800x1280 IPS TFT Display,Mipi IPS TFT LCD Display |
||
Product Description

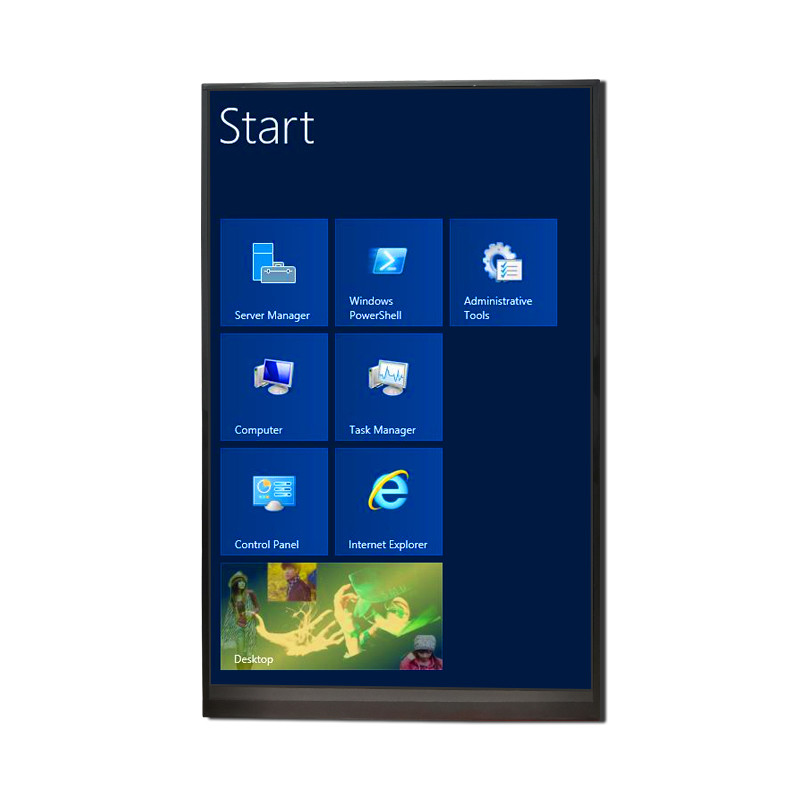

8 Inch IPS HD TFT Display 800*1280 Resolution With Mipi Interface
And White LED Backlight
| MODEL NO. | CH800FH03A |
| Module type | 8"TFT |
| Display Mode | IPS/Transmissive/Normally black |
| Number of Dots | 800*3(RGB)*1280 |
| Viewing Direction | 85/85/85/85 |
| Module size | 143.24(W)*229.18(H)*2.75(T)mm |
| TFT Active area | 135.36(W)*216.576(H)mm |
| TFT Dot pitch | 0.1692(W)*0.1692(H)mm |
| Interface | MIPI |
ChengHao Display model CH800FH03A is a color active matrix thin film transistor (TFT) liquid
crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is com
-posed of a TFT LCD panel, a driving IC, a high brightness back-light and FPC.
This TFT LCD has a 8 (16:10) inch diagonally measured active display area with WXGA (800
horizontal by 1280 vertical pixel) resolution.
The driver used for this project is the JD9365BC and can display 16M colors by 24 bit R.G.B. sig
-nal input. The driver is mounted on the glass and the interconnection via FPC including compon
-ents to drive the display module. Support RGB interface.
In addition, FPC can also be customized according to customer requirements, such as modifying
back-light and FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.
| Module Type | Display Area | Display Mode |
| 1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.1 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
