Sunlight Readable MIPI DSI Industrial LCD Display ST7701S Open Frame
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
| Minimum Order Quantity : | 100 pcs | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7 - 15 working days |
| Payment Terms : | T/T | Supply Ability : | 200K PCS / Month |
| Place of Origin: | ShenZhen , China | Brand Name: | OEM |
|---|---|---|---|
| Certification: | ROHS 、ISO9001 、CE | Model Number: | CH015B4001A |
| Document: | Product Brochure PDF |
|
Detail Information |
|||
| LCD Type: | TFT TRANSMISSIVE | Module Outline (W X HxD): | 37.1x32.7x2.5 Mm |
|---|---|---|---|
| Active Area (WxH): | 29.76x22.32 Mm | Interface Type: | Supports Raw Data And Serial RGB Mode And CCIR656 |
| Input Voltage: | 3.3V | Operating Temperatur: | -10 ~60 ℃ |
| Backlight Type: | LED | Driver IC: | OTA5182A-C2 |
| Storage Temperature: | -20~ 70 ℃ | Number Of Dots: | 480x240 |
| Supply Voltage For Logic: | 3.0 ~3.6 V | ||
| Highlight: | 300nits Medical Lcd Monitor,480x240 Medical Lcd Monitor,3.3V Parallel Industrial Lcd Monitor |
||
Product Description
China Factories 5 Inch Medical Lcd Monitor 480*240 Resolution And
Support Custom Size
| MODEL NO. | CH015B4001A |
| LCD Type | TFT TRANSMISSIVE |
| Backlight | LED |
|
Module outline |
37.1x32.7x2.5 mm |
|
Supply voltage for logic |
-0.3~4.6 V |
|
Active area |
29.76x22.32 mm |
| Viewing direction | 6 o'clock |
| Supply Voltage For logic | 3.3~3.6 V |
| storage temp | -20~70℃ |
| connector | FPC |
| LCD luminance | 300nits |
|
Humidity |
90%(Max60C) |
| Connection mode | Parallel |
| Driver IC | OTA5182A-C2 |
| operative voltage | 2.8 V |

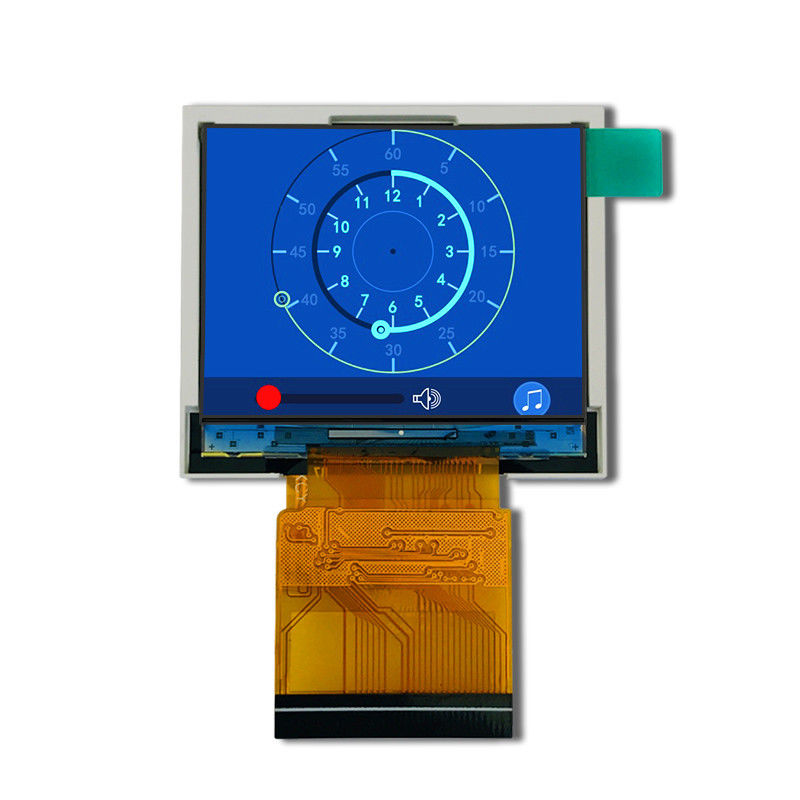

ChengHao Display model CH015B4001A is a color active matrix thin film transistor (TFT)
liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This
model is composed of a TFT LCD panel, a driving IC, a back-light and FPC.
This TFT LCD has a 1.5 (Horizontal screen) inch diagonally measured active display area
with 480*240*3-RGB resolution.
The driver used for this project is the OTA5182A-C2 or compatible and can display 16M
colors by R.G.B. signal input. The driver is mounted on the glass and the interconnection
via FPC including components to drive the display module.
In addition, FPC can also be customized according to customer requirements, such as modi
-fying back-light and FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.
| Module Type | Display Area | Display Mode |
| 1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.1 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
