Sunlight Readable MIPI DSI Industrial LCD Display ST7701S Open Frame
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
Minimum Order Quantity : | 100 pcs | Price : | / |
---|---|---|---|
Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
Payment Terms : | T/T | Supply Ability : | 200Kpcs/month |
Place of Origin: | ShenZhen, China | Brand Name: | 2.8 Inch |
---|---|---|---|
Certification: | ROHS、ISO9001、CE | Model Number: | CH280QV31A |
Document: | Product Brochure PDF |
Detail Information |
|||
Size: | 2.8 Inch Tft Lcd Display | Dot Arrangement: | 240*3(RGB)*320 Resolution |
---|---|---|---|
Display Mode: | TN | Module Size: | 50.0(W)X69.2(H)X2.35(T)~ |
Active Area: | 43.2(W)X57.6(H)~ | Interface: | 16-bit 8080-series |
TFT Dot Pitch: | 0.18(W)X0.18(H) | Viewing Direction: | 6 O'clock |
Gray Scale Inversion Direction: | 12 O'clock | Driver IC: | ST7789V~~ |
Highlight: | ST7789V Industrial LCD Display,ST7789V Industrial LCD Monitor,2.8inch Industrial LCD Display |
Product Description
2.8 Inch 240×320 IC ST7789V Industrial LCD Display White LED Backlight
2.8 Inch TN Industrial LCD Display 240(RGB)×320 Driver IC ST7789V
Details for product:
MODEL NO. | CH280QV31A |
Module type | 2.8"TFT |
Display Mode | TN/Transmissive/Normally white |
Number of Dots | 240*3(RGB)*320 |
Viewing Direction | 6 o'clock |
Gray Scale Inversion Direction | 12 o'clock |
Module size | 50.0(W)*69.2(H)*2.35(T)mm |
TFT Active area | 43.2(W)*57.6(H)mm |
TFT Dot pitch | 0.18(W)*0.18(H)mm |
Interface | 16-bit 8080-series system interface |
Backlight Type | White LED |
Drawing:
Prduct Application:
Chenghao Optoelectronics can provide one-stop color TFT module solutions for various shapes, and can change FPC, pin definition, driver and motherboard according to customers' requirements. High voltage or low voltage can be achieved, the working temperature can be achieved ultra-wide temperature up to -40℃-90℃, the viewing angle can be achieved from 6:00 O’clock to full IPS.
Packaging & Shipping:
Packaging Details:
1. All the products are packed in right way to keep it safe.
2. For small sizes of products we use tray + carton,
3. For bigger sizes we use foam slot + carton.
4. we also design packages according to customers' requirements
Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.
Our services:
1. Why choose ChengHao Optoelectronic?
High Service Quality: OEM & ODM service; Reply in 24 hours; All of our products are up to the international quality standards
High Product Quality: Our well equipment and strict function testing in the productive process guarantee the excellent quality of each product.
Professional Manufacturer: household appliances, industrial control, medical equipment, POS machine, instruments and meters, GPS navigation, financial equipment, consumer equipment, information appliances.
2. Could I order one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. May I have your catalogue and price list for trial order in MOQ quantity?
All our products are displayed on Google platform. Please take a closer look and choose the model you are interested in on our website.
4. If I order big quantity, what's the good price?
Please send the details enquiry to us, such as the item number, quantity for each item, quality request, Logo, payment terms, transport method, discharge place etc. We will make the accurate quotation to you as soon as possible.
5. What are my payment options?
For samples and small acount, it is 100% in advance.
For mass production, it is 30% in advance and 70% balance.
Welcome West Union, TT. bank account and Paypal.
6. How long will it take to ship my order?
As long as there is stock available, ChengHao Optoelectronic usually ships items in 1 to 3 working days for samples and within 7 to 15 days for customized order once receiving the confirmation of a new order. The order will not be confirmed until the payment reaches ChengHao Optoelectronic bank account. If we are temporarily out of stock, we will do our best to inform you of the estimated lead time.
7. What does your warranty cover?
ChengHao Optoelectronic product is backed by a 1-year limited warranty against manufacturing defects (material or workmanship). Missing/lost or worn out parts are not covered under our warranty.

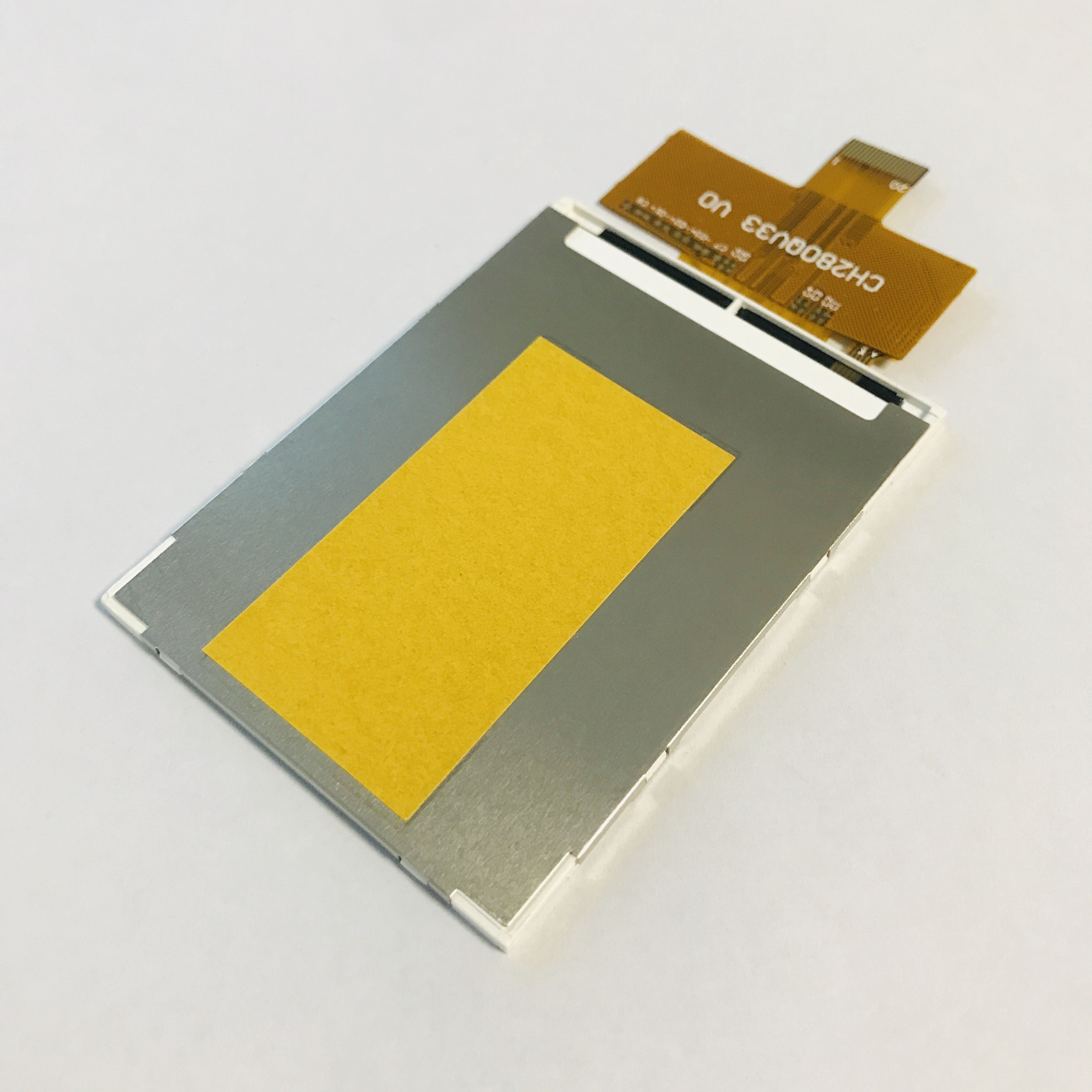

Back side:
