Mcu Spi 3.5in Tft Lcd Display Module 280cd/m2 Dot Matrix Tft Screen
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsApp : +8615919862398
| Minimum Order Quantity : | 100 pcs | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7 - 15 working days |
| Payment Terms : | T/T | Supply Ability : | 200K PCS / Month |
| Place of Origin: | ShenZhen , China | Brand Name: | OEM |
|---|---|---|---|
| Certification: | ROHS 、ISO9001 、CE | Model Number: | CH700WV05A-CT-14 |
|
Detail Information |
|||
| Module Type: | 7 Inches | Display Mode: | Transmissive/Normally White |
|---|---|---|---|
| Number Of Dots: | 800*480*3-RGB | Viewing Direction: | 12O'clock |
| Module Size: | 8.83(T)*183.0(W)*139.0(H) Mm | TFT Active Area: | 85.92(H)*154.08(W) Mm |
| Interface: | TFT: 24bits RGB CTP: I2C | Luminace: | 850cd/m2 |
| High Light: | 800×480 FPC Lcd Screen Module,I2c Ctp Lcd Screen Module,850cd/M2 Lcd Monitor Module |
||
Product Description
7'' White LED Backlight LCD Display Module With I2c Ctp And 24bits
Rgb Interface
| MODEL NO. | CH700WV05A-CT-14 |
| Module type | 7 inches |
| Display Mode | TN / Transmissive |
| CTP type | G+G |
| Number of Dots | 800*480*3(RGB) |
| Viewing Direction | 12 o'clock |
| Gray Scale Inversion Direction | 6 o'clock |
| Module size | 8.83(T)*183.0(W)*139.0(H) mm |
| TFT Active area | 85.92(H)*154.08(W) mm |
| TFT Dot pitch | 0.1926(W)*0.1790(H) mm |
| Interface | TFT: 24bit RGB CTP: I2C |
| Backlight Type | White LED |
| Luminace | 850 cd/m2 |

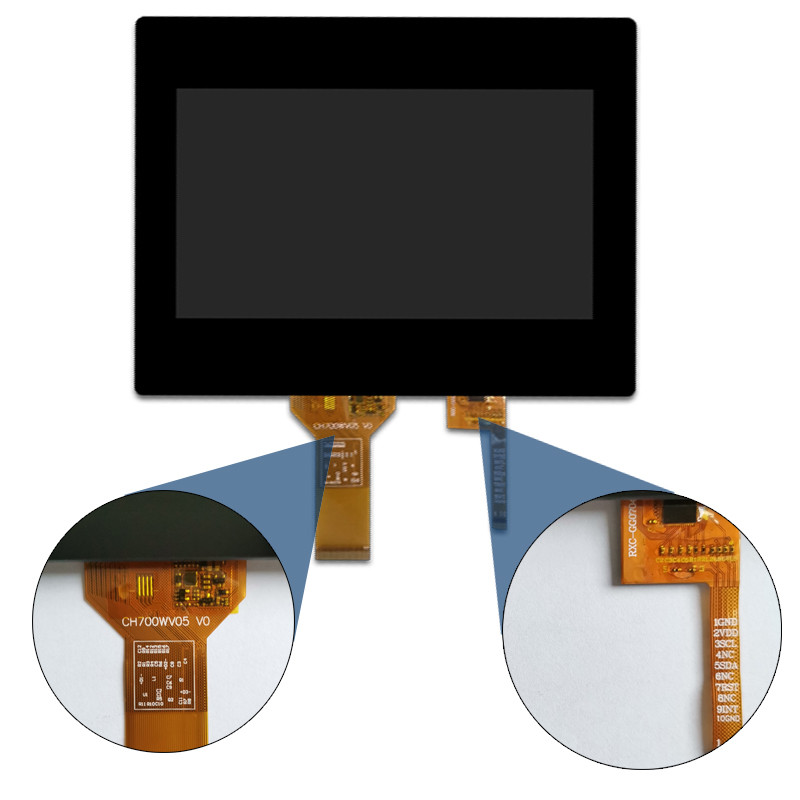

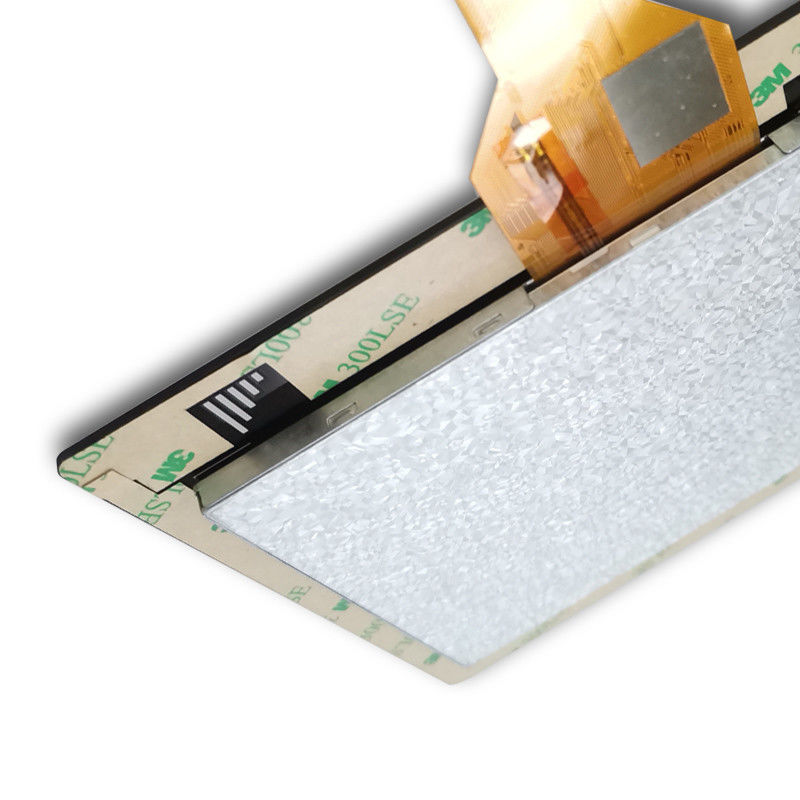

ChengHao Display model CH700WV05A-CT-14 is a color active matrix thin film transistor (TFT)
liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is
composed of a TFT LCD panel, a driving IC, a high brightness back-light, a capacitive touch panel
and FPC.
This TFT LCD has a 7.0 (16:9) inch diagonally measured active display area with WVGA(800
horizontal by 480 vertical pixel) resolution.
The driver used for this project is the Himax and can display 16M colors by 24 bit R.G.B. signal input.
The driver is mounted on the glass and the interconnection via FPC including components to drive
the display module. Support RGB interface.
In addition, FPC can also be customized according to customer requirements, such as modifying
back-light and CTP structure, interface definition, etc.
RoHS Compliance & Halogen Free.
| Module Type | Display Area | Display Mode |
| 1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.1 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
