IPS 480*800 IC ST7701S HD TFT Display 2 lane MIPI DSI Interface
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsApp : +8615919862398
| Minimum Order Quantity : | 2 PCS | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7 - 15 working days |
| Payment Terms : | T/T | Supply Ability : | 200K PCS / Month |
| Place of Origin: | ShenZhen , China | Brand Name: | OEM |
|---|---|---|---|
| Certification: | ROHS 、ISO9001 、CE | Model Number: | CH800FH03A |
|
Detail Information |
|||
| Module Type: | 8 Inches | Brightness: | 300~350cd/m2 |
|---|---|---|---|
| Number Of Dots: | 1200*3(RGB)*1920 | Viewing Direction: | 80/80/80/80 |
| Module Size: | 114.7(W)*184.2(H)*2.5(T)mm | TFT Active Area: | 107.64(W)*172.224(H)mm |
| Uniformity: | 70%~75% | Luminace: | 350cd/m2 |
| High Light: | 350cd/M2 IPS TFT Display,1200x1920 IPS TFT Display,4 Lane Mipi Transmissive LCD Display |
||
Product Description
8'' IPS HD TFT Display 4-lane Mipi Interface Transmissive Display Mode
| MODEL NO. | CH800FH03A-12 |
| Module type | 8"TFT |
| Display Mode | IPS / Transmissive / Normally Black |
| Uniformity | 70%~75% |
| Number of Dots | 1200*3(RGB)*1920 |
| Viewing Direction | 80/80/80/80 |

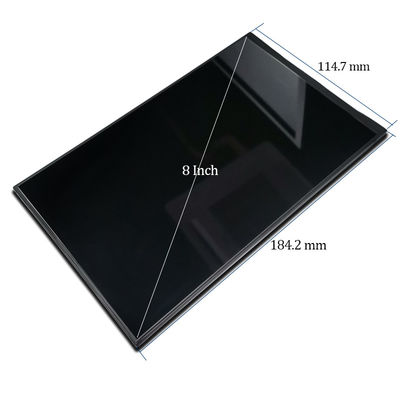

| Module size | 114.7(W)*184.2(H)*2.5(T)mm |
| TFT Active area | 107.64(W)*172.224(H)mm |
| Brightness | 300~350 Nits |
| TFT Dot pitch | 0.0897(W)*0.0897(H)mm |
| Interface | 4-lane MIPI |
| Backlight Type | White LED |
ChengHao Display model CH800FH03A is a color active matrix thin film transistor (TFT) liquid
crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is

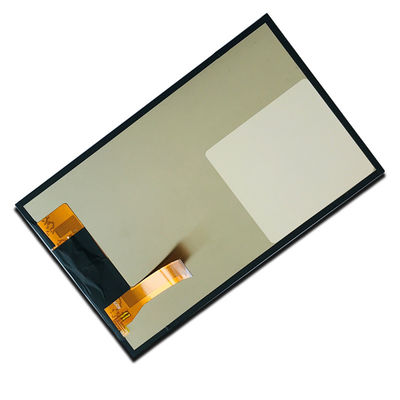

composed of a TFT LCD panel, a driving IC, a high brightness back-light and FPC.
This TFT LCD has a 8 Inch diagonally measured active display area with 1200*1920 resolution.
The driver can display 16.7M colors by 4-lane MIPI R.G.B.signal input. The driver is mounted
on the glass and the interconnection via FPC including components to drive the display module.
Support RGB interface.
In addition, FPC can also be customized according to customer requirements, such as modify
-ing backlight and FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.
| Module Type | Display Area | Display Mode |
| 1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.1 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
