Mcu Spi 3.5in Tft Lcd Display Module 280cd/m2 Dot Matrix Tft Screen
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
| Minimum Order Quantity : | 100 pcs | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7 - 15 working days |
| Payment Terms : | T/T | Supply Ability : | 200K PCS / Month |
| Place of Origin: | ShenZhen , China | Brand Name: | OEM |
|---|---|---|---|
| Certification: | ROHS 、ISO9001 、CE | Model Number: | CH390WQ01A-NT |
| Document: | Product Brochure PDF |
|
Detail Information |
|||
| Module Type: | 3.9 Inches | Display Mode: | Transmissive /Normally Black/IPS |
|---|---|---|---|
| Number Of Dots: | 480 * 3 * 128 | Viewing Direction: | All Viewing Angle |
| Module Size: | 105.5 * 40.64 * 2.95 Mm | TFT Active Area: | 95.04 * 25.344 Mm |
| Interface: | RGB /Oem | Luminace: | 500nits |
| Highlight: | 480x128 LCD Display Module,LCD Display Module 3.9 Inches,500nits Lcd Screen Module |
||
Product Description

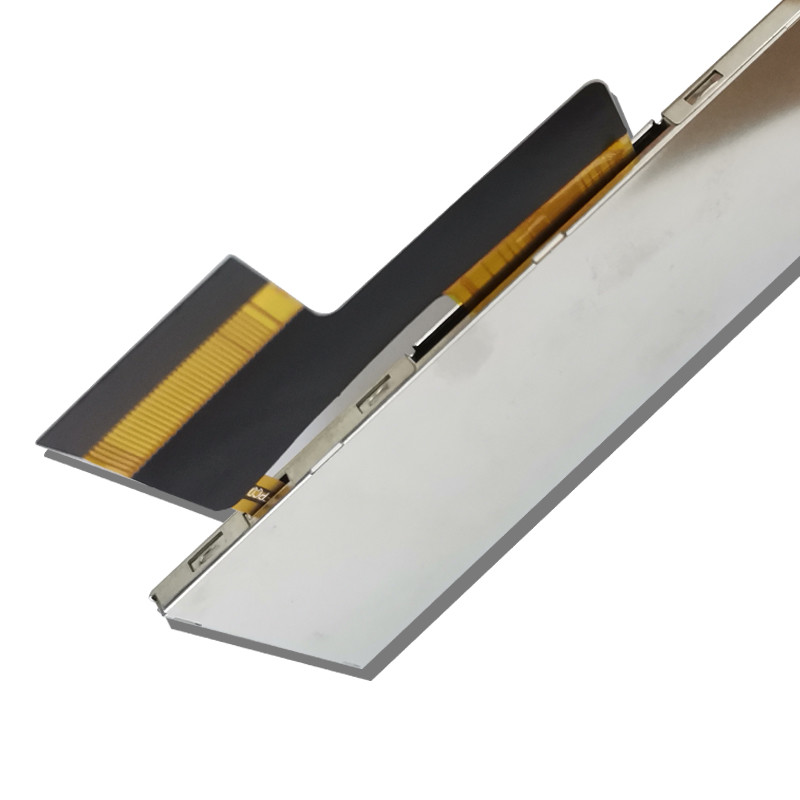

High Brightness LCD Display Module 480*128 All Viewing Angle Truly
Color Screen Panel
| MODEL NO. | CH390WQ01A-NT |
| Module type | 3.9 inch |
| Display Mode | Transmissive/Normally black/IPS |
| Number of Dots | 480 * 3 * 128 |
| Viewing Direction | All viewing angle |
| Module size | 105.5 * 40.64 * 2.95 mm |
| TFT Active area | 95.04 * 25.344 mm |
| Interface | RGB |
| Luminace | 500 Nits |
ChengHao Display model CH390WQ01A is a color active matrix thin film transistor (TFT) liquid cry
-stal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed
of a TFT LCD panel, a driving IC, a high brightness back-light and FPC.
This TFT LCD has a 3.9 (Bar screen) inch diagonally measured active display area with 480*(RGB)
*128 resolution.
The driver used for this project is the SC7283 or compatible and can display 16M colors by 24bit R.G.B.
signal input. The driver is mounted on the glass and the interconnection via FPC including compon
-ents to drive the display module. Support RGB interface.
In addition, FPC can also be customized according to customer requirements, such as modifying back
-light and FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.
| Module Type | Display Area | Display Mode |
| 1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.1 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
