Sunlight Readable MIPI DSI Industrial LCD Display ST7701S Open Frame
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
| Minimum Order Quantity : | 100 pcs | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7 - 15 working days |
| Payment Terms : | T/T | Supply Ability : | 200K PCS / Month |
| Place of Origin: | ShenZhen , China | Brand Name: | OEM |
|---|---|---|---|
| Certification: | ROHS 、ISO9001 、CE | Model Number: | CH700WV02A-NT |
| Document: | Product Brochure PDF |
|
Detail Information |
|||
| Module Type: | 7 Inches | Display Mode: | TransmissiveNormally White-TN |
|---|---|---|---|
| Number Of Dots: | 800*3*480 | Viewing Direction: | 12 O'clock |
| Module Size: | 164.9*100*5.7 Mm | TFT Active Area: | 154.08*85.92 Mm |
| Interface: | 24bits RGB | Luminace: | 250 Nit |
| Highlight: | Transmissive TN Industrial LCD Display,ISO9001 Industrial LCD Display,7 Inches LCD Tft Module |
||
Product Description
24Bits RGB TFT LCD Monitor 12 O'Clock Viewing Direction Active
800*480 Matrix dots
| MODEL NO. | CH700WV02A-NTP |
| Module type | 7" |
| Display Mode | Transmissive/TN/Normally white |
| Number of Dots | RGB-800*3*480 |
| Viewing Direction | 12:00 |
| Gray Scale Inversion Direction | 6:00 |

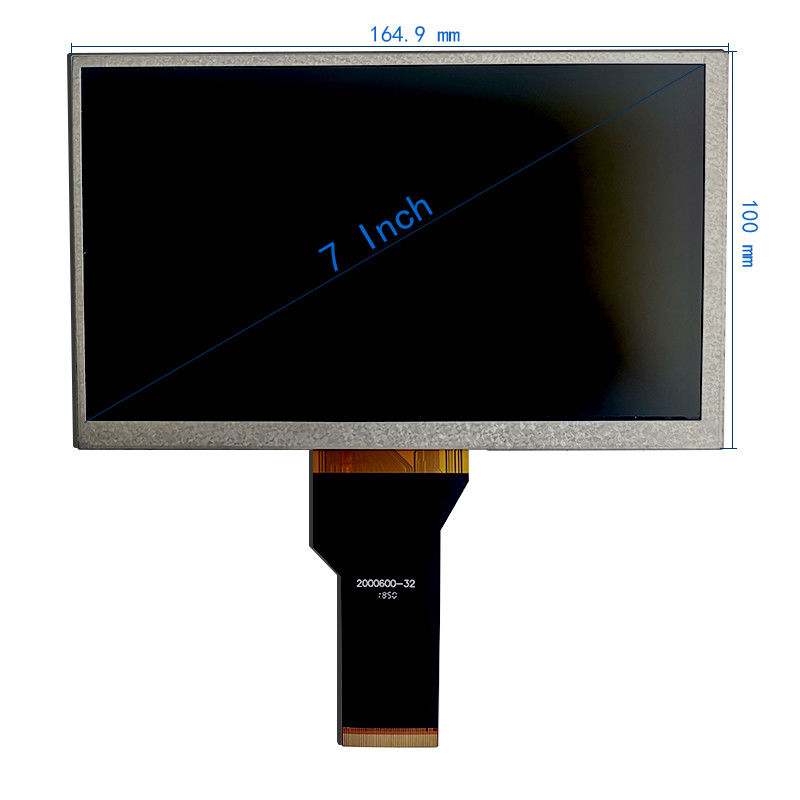

| Module size | 164.9* 100.0* 5.7mm |
| TFT Active area | 154.08*85.92(H)mm |
| TFT Dot pitch | 0.1926* 0.1790mm |
| Interface | 24bit-RGB interface |
| Backlight Type | White LED |
| Luminace | 250cd/m2 |
ChengHao Display model CH700WV02A is a color active matrix thin film transistor (TFT) liquid cry
-stal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed
of a TFT LCD panel, a driving IC, a high brightness back-light and FPC.
This TFT LCD has a 7.0 (16:9) inch diagonally measured active display area with WVGA (800 hori
-zontal by 480 vertical pixel) resolution.
The driver used for this project is the Himax and can display 16M colors by 24 bit R.G.B. signal input.
The driver is mounted on the glass and the interconnection via FPC including components to drive the
display module. Support RGB interface.
In addition, FPC can also be customized according to customer requirements, such as modifying back
-light and FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.
| Module Type | Display Area | Display Mode |
| 1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.1 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
