Mcu Spi 3.5in Tft Lcd Display Module 280cd/m2 Dot Matrix Tft Screen
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsApp : +8615919862398
| Minimum Order Quantity : | 2 PCS | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7 - 15 working days |
| Payment Terms : | T/T | Supply Ability : | 200K PCS / Month |
| Place of Origin: | ShenZhen , China | Brand Name: | 3.5 Inch |
|---|---|---|---|
| Certification: | ROHS 、ISO9001 、CE | Model Number: | CH350HV37A |
|
Detail Information |
|||
| MODEL NO.: | CH350HV37A | Module Type: | 3.5" TFT |
|---|---|---|---|
| Display Mode: | TN/Transmissive/Normally White | Number Of Dots: | 320*3*480 |
| Viewing Direction: | 6 O'clock | Module Size: | 56.54(W)*84.96(H)*2.4(T)mm |
| TFT Active Area: | 48.96(W)*73.44(H)mm | Interface: | SPI、MCU、SPI+RGB |
| Luminace: | 300cd/m2 | Support OEM: | Yes |
| High Light: | 18 Bit MCU LCD Display Module,SPI LCD Display Module,300cd/m2 Lcd Module Display |
||
Product Description

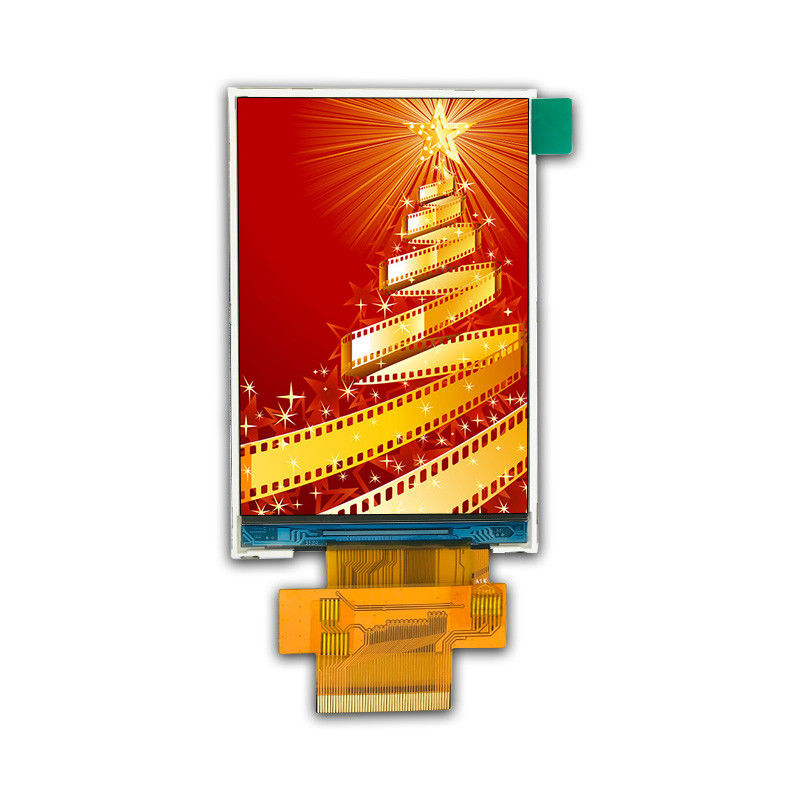

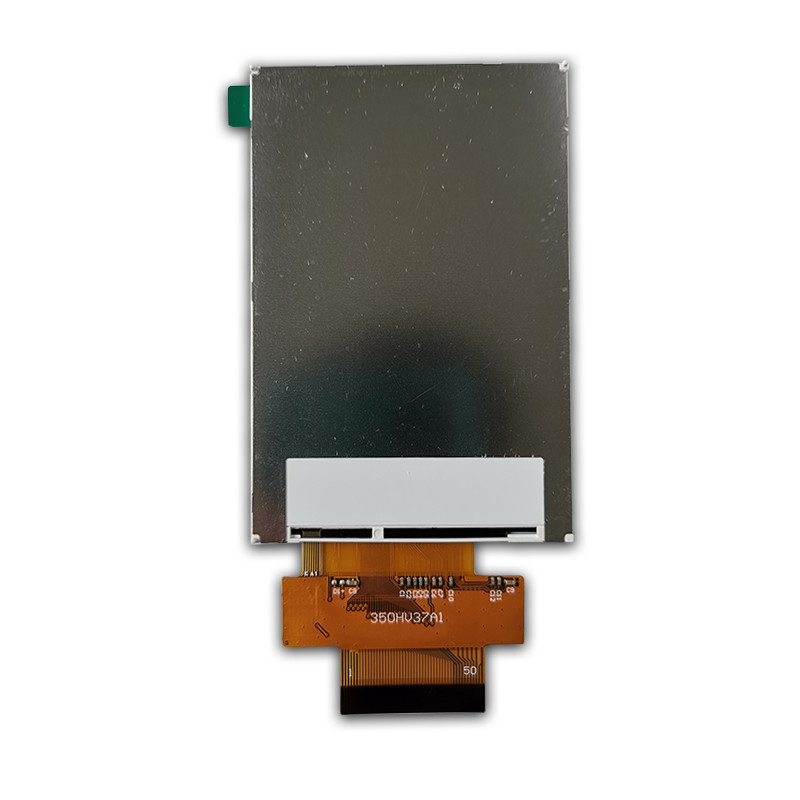

3.5 Inch SPI LCD Display Module 8 / 9 / 16 / 18bit MCU RGB Interface
320 * 480
| MODEL NO. | CH350HV37A |
| Module type | 3.5"TFT |
| Display Mode | TN/Transmissive/Normally white |
| Number of Dots | 320*3(RGB)*480 |
| Viewing Direction | 6 o'clock |
| Module size | 56.54(W)*84.96(H)*2.4(T)mm |
| TFT Active area | 48.96(W)*73.44(H)mm |
| Interface | SPI,MCU,SPI+RGB |
| Luminace | 300cd/m2 |
| ITEM | STANDARD VALUES | UNITS |
| Dot pitch | 0.153(W)×0.153(H) | mm |
| Interface | 4-lines_8bit / 3-lines_9bit SPI 8-/ 9-/16-/18-bit 8080 system interface 16-/18-bit RGB interface |
-- |
| Operating temperature | -20 ~ +70 | ℃ |
| Storage temperature | -30 ~ +80 | ℃ |
| Back Light | 6 White LED in parallel | -- |
| Weight | TBD | g |
| Module Type | Display Area | Display Mode |
| 1.44 inch TFT LCD Display | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch TFT LCD Display | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch TFT LCD Display | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch TFT LCD Display | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch TFT LCD Display | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch TFT LCD Display | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch TFT LCD Display | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch TFT LCD Display | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch TFT LCD Display | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch TFT LCD Display | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch TFT LCD Display | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch TFT LCD Display | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch TFT LCD Display | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch TFT LCD Display | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch TFT LCD Display | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch TFT LCD Display | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch TFT LCD Display | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch TFT LCD Display | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch TFT LCD Display | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch TFT LCD Display | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch TFT LCD Display | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch TFT LCD Display | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch TFT LCD Display | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch TFT LCD Display | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch TFT LCD Display | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch TFT LCD Display | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch TFT LCD Display | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch TFT LCD Display | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch TFT LCD Display | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch TFT LCD Display | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch TFT LCD Display | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.10 inch TFT LCD Display | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
