HX8357D Luminace 350cd 3.5 Inch 350 nit HDMI LCD Display TN Angle

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 200Kpcs/month
Place of Origin: ShenZhen, China Brand Name: 3.5Inch
Certification: ROHS、ISO9001、CE Model Number: CH350HV15

Detail Information

Size: 3.5 Inch Dot Arrangement: 320X3(RGB)X480
Module Size: 55.66(W)X85.04(H)X2.4(T)mm Active Area: 48.96(W)X73.44(H)mm
Brightness: 350(nit) Operating Temperature: - 10 +60
Storage Temperature: - 20 + 70 Driver IC: HX8357D Drive IC
TFT Dot Pitch: 0.153(W)*0.153(H)mm
High Light:

350 Nit HD LCD Display

,

HX8357D HD LCD Display

,

HX8357D Full HD LCD Display

Product Description

HX8357D Luminace 350cd 3.5 Inch 350 Nit HDMI LCD Display TN Angle



3.5 Inch Tft Lcd Display TN Angle 3.5 Inch Tft Lcd Module Luminace 350cd/M2



TFT lcd display

Size: Our standard TFT LCD display size range from 0.96 inch to 10.1 inch(please tell us what you need )
Brightness: can be designed per customer's requirements.
Connection: All kinds of FPC design supported


TFT General Information:

MODEL NO. CH350HV15
Module type 3.5"TFT
Display Mode TN/Transmissive/Normally white
Number of Dots 320*3(RGB)*480
Viewing Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Module size 55.66(W)*85.04(H)*2.4(T)mm
TFT Active area 48.96(W)*73.44(H)mm
TFT Dot pitch 0.153(W)*0.153(H)mm
Interface 4-lines_8bit / 3-lines_9bit SPI
8-/ 9-/16-/18-bit 8080 system interface
16-/18-bit RGB interface
Backlight Type White LED
Luminace 350cd/m2

FAQ:

Q1 : Are you manufactory or trade company?

A1: Shenzhen Chenghao Opelectronics Co., Ltd is a manufactory, We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q2: What payment methods you support ?

A2: We accept the Trade Assurance Order on alibaba , or T/T , PAYPAL and bank transfer.

Q3: What express service can I choose ?

A3: We cooperate with many express companies , for example , FEDEX , DHL , TNT , EMS and China Post Air Mail.
Q4: Could you test my order before shipping ?

A4: Yeah , Don't worry , All the order will be tested ok before shippment .



Chenghao shares LCD viewing angle:

LCD is a kind of backlight display device, and its light is provided by the backlight behind the LCD module, which inevitably leads to the best viewing angle of LCD - face up. When you view from other angles, because the backlight can penetrate through the adjacent pixels and enter the human eye, it will cause color distortion. The undistorted range is the viewing angle of the LCD. The angle of view of LCD is divided into horizontal angle and vertical angle, and the horizontal angle is generally larger than the vertical angle. At present, as long as the horizontal perspective reaches 120 degrees and the vertical perspective reaches 140 degrees, it can meet the application needs of most users. The latest LCD panel is produced with wide viewing angle technology, which can reach 140 degrees up and down and 150 degrees left and right, reducing the inconvenience caused by small viewing angle. Of course, this performance for CRT display close to 180 degrees of view can not be compared, but for most applications, it is more than enough.

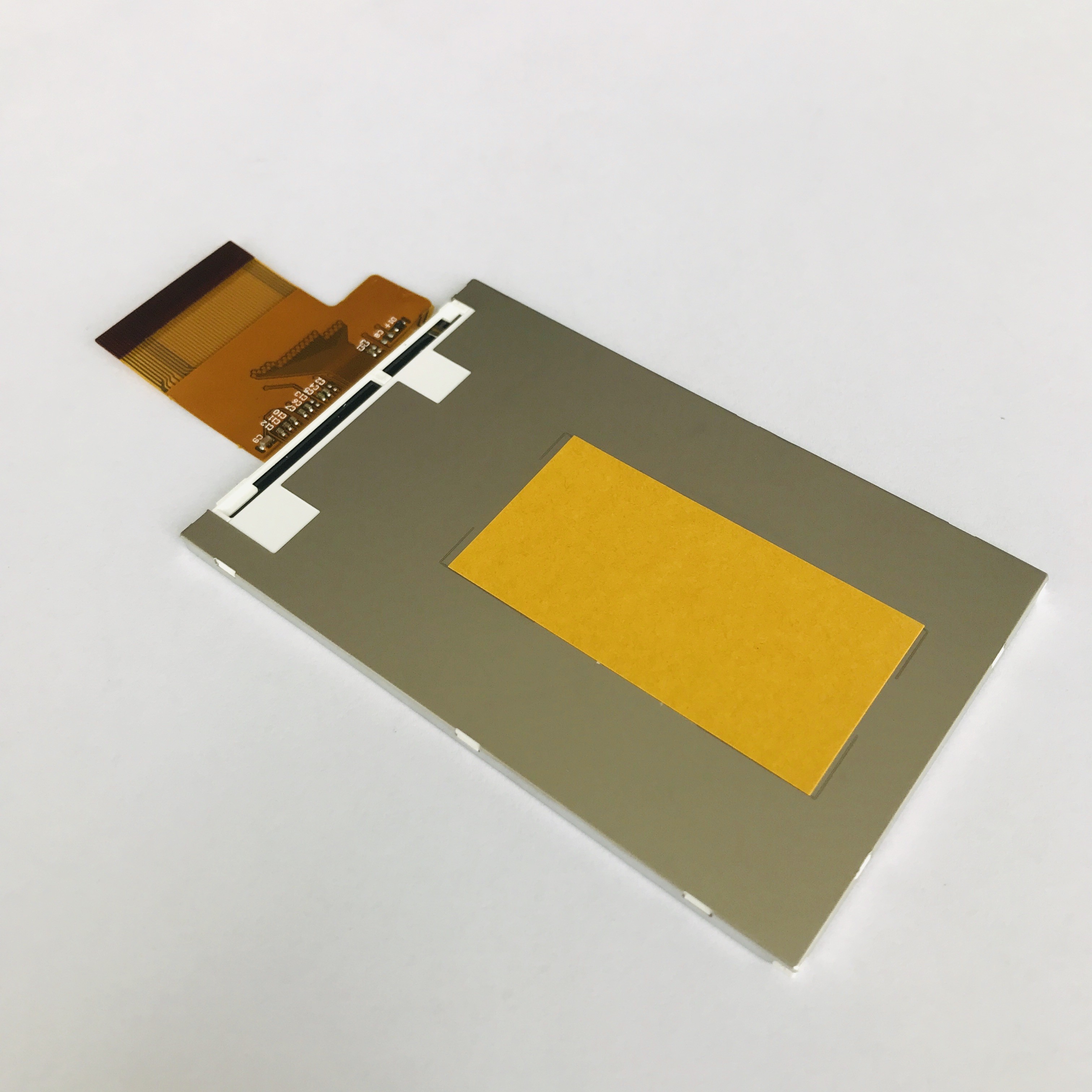

Backside:

HX8357D Luminace 350cd 3.5 Inch 350 nit HDMI LCD Display TN Angle 0





drawing:

HX8357D Luminace 350cd 3.5 Inch 350 nit HDMI LCD Display TN Angle 1

Chenghao Dispaly(CH Dispaly) not only offers a wide range of standard TFT LCD modules, but also provide Custom products with a variety of choices to meet customers’ needs.

HX8357D Luminace 350cd 3.5 Inch 350 nit HDMI LCD Display TN Angle 2
