IPS 480*800 IC ST7701S HD TFT Display 2 lane MIPI DSI Interface
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsApp : +8615919862398
|Minimum Order Quantity :||1PCS||Price :||/|
|Packaging Details :||All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements||Delivery Time :||7-15 working days|
|Payment Terms :||T/T||Supply Ability :||200Kpcs/month|
|Place of Origin:||ShenZhen, China||Brand Name:||3.5Inch|
|Size:||3.5 Inch||Dot Arrangement:||320*3(RGB)*480|
|Module Size:||55.66(W)*85.04(H)*2.4(T)mm||Active Area:||48.96(W)*73.44(H)mm|
|Brightness:||350cd/m2||Interface:||4-lines_8bit / 3-lines_9bit SPI 8-/ 9-/16-/18-bit 8080 System Interface|
|Operating Temperature:||- 10 +60||Storage Temperature:||- 20 + 70|
2.4mm Thick HD TFT Display,
HX8357D HD TFT Display,
3.5inch Color Tft Screen

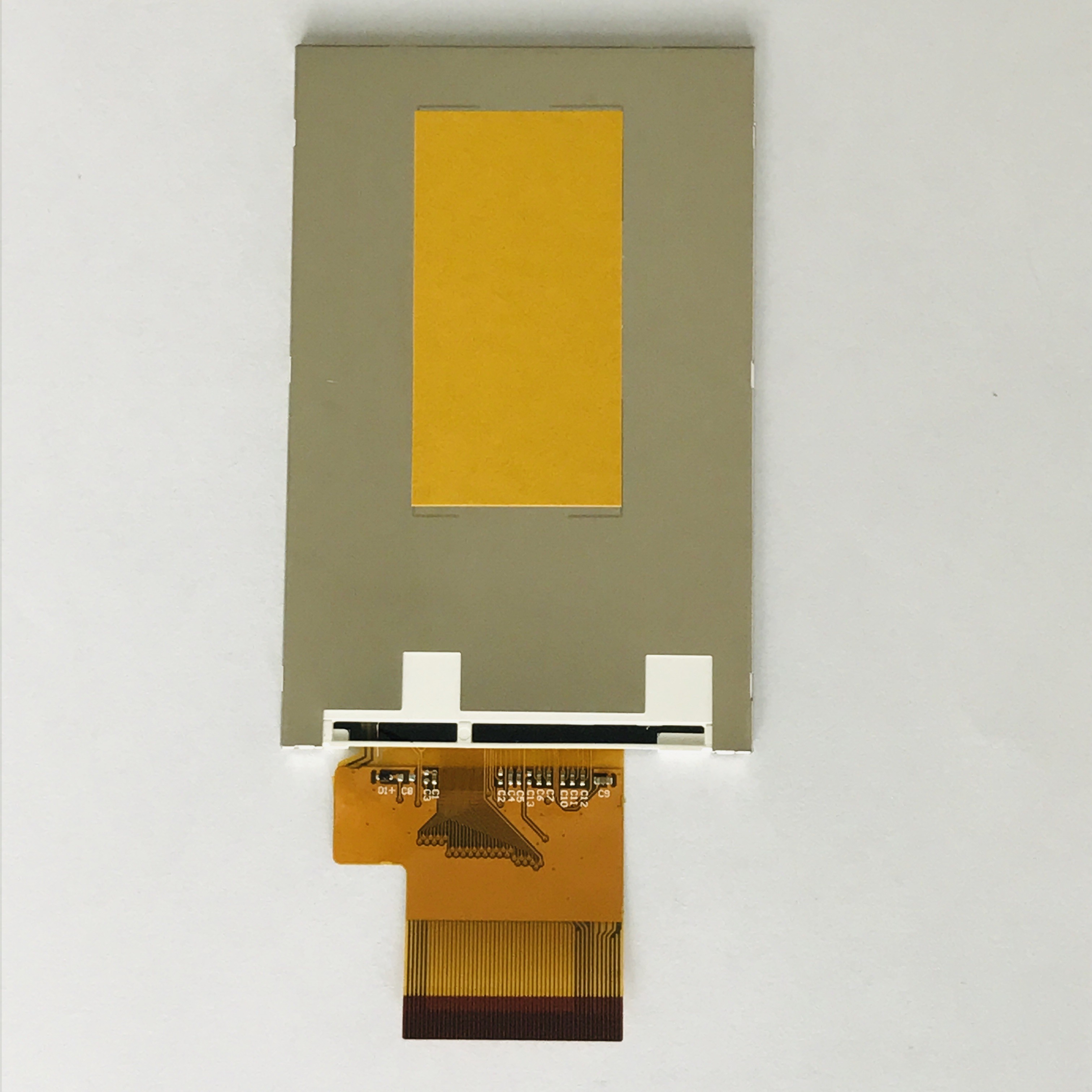

Driver IC HX8357D 2.4mm Thick HD TFT Display 3.5 Inch Color Tft Screen
3.5 Inch Tft Lcd Display 320*3(RGB)*480 Resolution Color Tft Screen
TFT General Information:
|Display Mode||TN/Transmissive/Normally white|
|Number of Dots||320*3(RGB)*480|
|Viewing Direction||6 o'clock|
|Gray Scale Inversion Direction||12 o'clock|
|TFT Active area||48.96(W)*73.44(H)mm|
|TFT Dot pitch||0.153(W)*0.153(H)mm|
|Interface||4-lines_8bit / 3-lines_9bit SPI
8-/ 9-/16-/18-bit 8080 system interface
16-/18-bit RGB interface
|Backlight Type||White LED|
Q1 : Are you manufactory or trade company?
A1: Shenzhen Chenghao Opelectronics Co., Ltd is a manufactory, We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q2: What payment methods you support ?
A2: We accept the Trade Assurance Order on alibaba , or T/T , PAYPAL and bank transfer.
Q3: What express service can I choose ?
A3: We cooperate with many express companies , for example , FEDEX , DHL , TNT , EMS and China Post Air Mail.
Q4: Could you test my order before shipping ?
A4: Yeah , Don't worry , All the order will be tested ok before shippment .
Chenghao shares LCD viewing angle:
LCD is a kind of backlight display device, and its light is provided by the backlight behind the LCD module, which inevitably leads to the best viewing angle of LCD - face up. When you view from other angles, because the backlight can penetrate through the adjacent pixels and enter the human eye, it will cause color distortion. The undistorted range is the viewing angle of the LCD. The angle of view of LCD is divided into horizontal angle and vertical angle, and the horizontal angle is generally larger than the vertical angle. At present, as long as the horizontal perspective reaches 120 degrees and the vertical perspective reaches 140 degrees, it can meet the application needs of most users. The latest LCD panel is produced with wide viewing angle technology, which can reach 140 degrees up and down and 150 degrees left and right, reducing the inconvenience caused by small viewing angle. Of course, this performance for CRT display close to 180 degrees of view can not be compared, but for most applications, it is more than enough.
Chenghao Dispaly(CH Dispaly) not only offers a wide range of standard TFT LCD modules, but also provide Custom products with a variety of choices to meet customers’ needs.
Packaging & Shipping :
1. All the products are packed in right way to keep it safe.
2. For small sizes of products we use tray + carton,
3. For bigger sizes we use foam slot + carton.
4. we also design packages according to customers' requirements
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.
1. Why choose ChengHao Optoelectronic?
High Service Quality: OEM & ODM service; Reply in 24 hours; All of our products are up to the international quality standards
High Product Quality: Our well equipment and strict function testing in the productive process guarantee the excellent quality of each product.
Professional Manufacturer: household appliances, industrial control, medical equipment, POS machine, instruments and meters, GPS navigation, financial equipment, consumer equipment, information appliances.
2. Could I order one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. May I have your catalogue and price list for trial order in MOQ quantity?
All our products are displayed on Google platform. Please take a closer look and choose the model you are interested in on our website.
4. If I order big quantity, what's the good price?
Please send the details enquiry to us, such as the item number, quantity for each item, quality request, Logo, payment terms, transport method, discharge place etc. We will make the accurate quotation to you as soon as possible.
5. What are my payment options?
For samples and small acount, it is 100% in advance.
For mass production, it is 30% in advance and 70% balance.
Welcome West Union, TT. bank account and Paypal.
6. How long will it take to ship my order?
As long as there is stock available, ChengHao Optoelectronic usually ships items in 1 to 3 working days for samples and within 7 to 15 days for customized order once receiving the confirmation of a new order. The order will not be confirmed until the payment reaches ChengHao Optoelectronic bank account. If we are temporarily out of stock, we will do our best to inform you of the estimated lead time.
7. What does your warranty cover?
ChengHao Optoelectronic product is backed by a 1-year limited warranty against manufacturing defects (material or workmanship). Missing/lost or worn out parts are not covered under our warranty.
