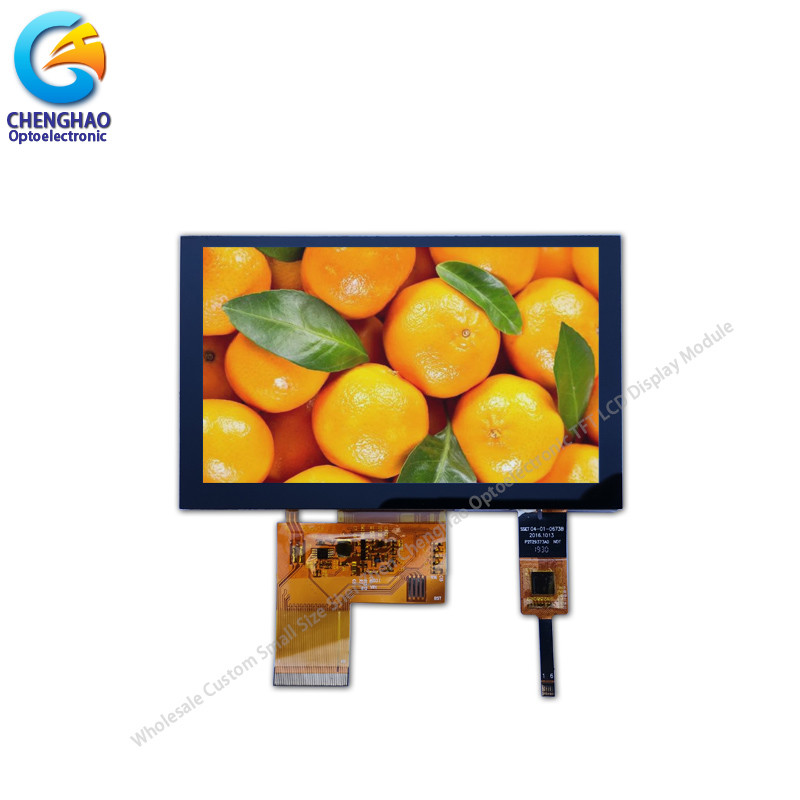

5 Inch 24bit RGB Interface TFT LCD Display Touch Screen Monitor

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH500WV03A-CTB

Detail Information

Product Name: 5 Inch Industrial Grade Touch Screen Monitor TFT Active Area: 108(W)*64.8(H)mm
TFT Dot Pitch: 0.135(W)*0.135(H)mm Interface: TFT: 24-bit RGB CTP: I2C
Backlight Type: White LED Luminace: 300cd/m2
Product Size: 5.0 Inch
High Light:

24bit RGB Interface TFT LCD Display

,

I2C CTP TFT LCD Display

,

24bit LCD Touch Screen Monitor

Product Description

5 Inch 24bit RGB Interface TFT LCD Display Touch Screen Monitor



5 Inch Industrial Grade Touch Screen Monitor 24bit RGB Interface 800x480 Pixel TFT Module With I2c Ctp



1. Specification



Product Name 5 Inch Industrial Grade Touch Screen Monitor
TFT Dot pitch 0.135(W)*0.135(H) mm
Interface TFT: 24-bit RGB CTP: I2C
Backlight Type White LED
Luminace 300 cd/m2
Product Size 5.0 inch
Edge Size 120.7*75.8 *4.65 mm
Display area 108*64.8 mm


2. Description



* 5.0-inch color screen display
* 800*480 Pixel, clear display
* Using 24-bit RGB Interface
* Provide a rich sample program
* Military-grade process standards, long-term stable work
* Provide underlying driver technical support
* Long term stable production and guaranteed supply
* Support customized service! Customizable content includes FPC/backlight brightness/installation of touch panel, etc.



# We also have several other MP products with similar configurations,but with different ◊interface ◊pin map ◊FPC shape ◊outline dimension ◊brightness etc.
Please contact us to provide datasheet for your checking.We can according to your demand to customized your touch screen like customized cover glass's shape,ilk -printing color,touch with wate r ,touch with goves and so on .





3. Drawings



5 Inch 24bit RGB Interface TFT LCD Display Touch Screen Monitor 0


4. Application



5 Inch 24bit RGB Interface TFT LCD Display Touch Screen Monitor 1




5. Our Service



(1) Fully / Semi-automated production line ensure the best quality.
(2) Custom Design,can specially meet your needs.
(3) Fast Delivery ,about 20 days for lead time
(4) Samples available on request; Small MOQ orders can be negotiated.
(5) Provide best pre-sale and after-sale service to you.



6. Our advantage



1. We have a professional technical team with rich TFT-LCD work experience.
2.We have many years of experience in global customer cooperation, and we have the ability to solve the needs of most customers' personalized customized products.
3. We have advanced tft-lcd production equipment and a first-class production team, which can provide customers with high-quality products.
4. We are equipped with a professional after-sales service team, which can provide customers with a full range of after-sales services.
5. We provide a full range of products and services, including display screens and touch screens,
Technical support and customization.
6. We manage strictly in accordance with the ISO9001 management system, and our products conform to Rosh
Certification.



7. FAQ



Q:How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products.
We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
Q: What certification could provide ?
A: Products by RoHS, CE, ISO9001 certification.
Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product related information and test reports.
Q: The product specification is in Chinese or English?
A: The version of product specification is English.
