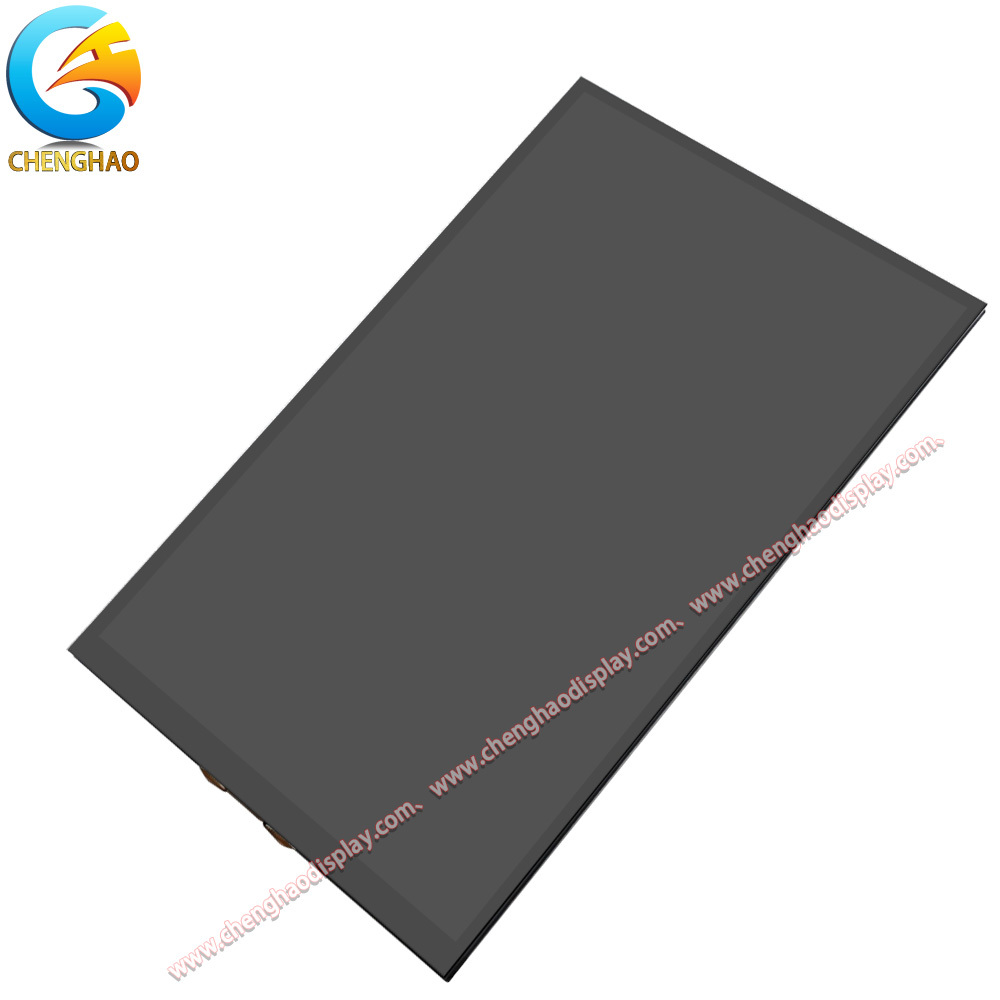

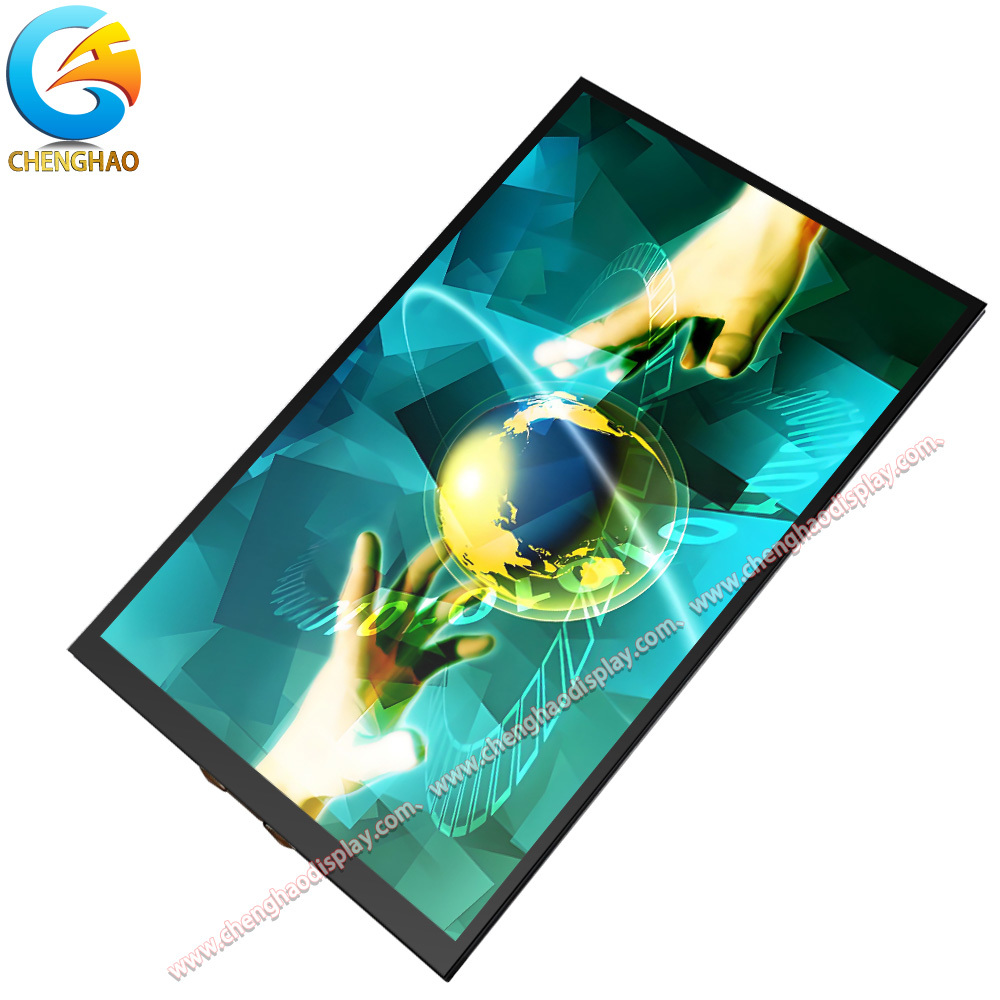

HDMI Display Module 10.1 Inch 800x1280 High Resolution IPS TFT Lcd with Capacitive Touch

Product Description:

The CH101WX05C-CT is a high-performance integrated display module developed by Shenzhen ChengHao Optoelectronic Co., Ltd., combining a 10.1-inch IPS TFT display, a capacitive touch panel (CTP), and an HDMI driver board in one sleek unit. Tailored for multi-system compatibility, it seamlessly works with Windows, Linux, MAC OS, Raspberry Pi, and other mainstream operating systems, making it a versatile choice for diverse electronic device applications. Featuring an IPS/transmissive/normally black display mode, the module delivers exceptional visual performance with a resolution of 800×3(RGB)×1280 dots and a typical luminance of 300 cd/m². Its 80/80/80/80 (U/D/L/R) wide viewing angles ensure consistent color accuracy and clear visibility from any direction, eliminating image distortion or color fading even when viewed off-center. The 0.1692×0.1692mm dot pitch further enhances detail rendering, making text, graphics, and video content sharp and vivid for both professional and daily use. Designed for user-friendliness and easy integration, the module adopts a dual-interface configuration: HDMI for TFT display signal transmission and USB for CTP touch control, supporting plug-and-play functionality that reduces debugging complexity. With a compact and slim structure—boasting key dimensions such as 143.4(W)×228.9(H)×2.6(T)mm for the TFT unit and a total thickness of 5.5±0.3mm (including PCBA and components)—it fits seamlessly into space-constrained devices without compromising performance. Equipped with two white LEDs as the backlight source, it ensures stable brightness output while maintaining energy efficiency.

Features:

• Compact and Adaptable HDMI Driver Board

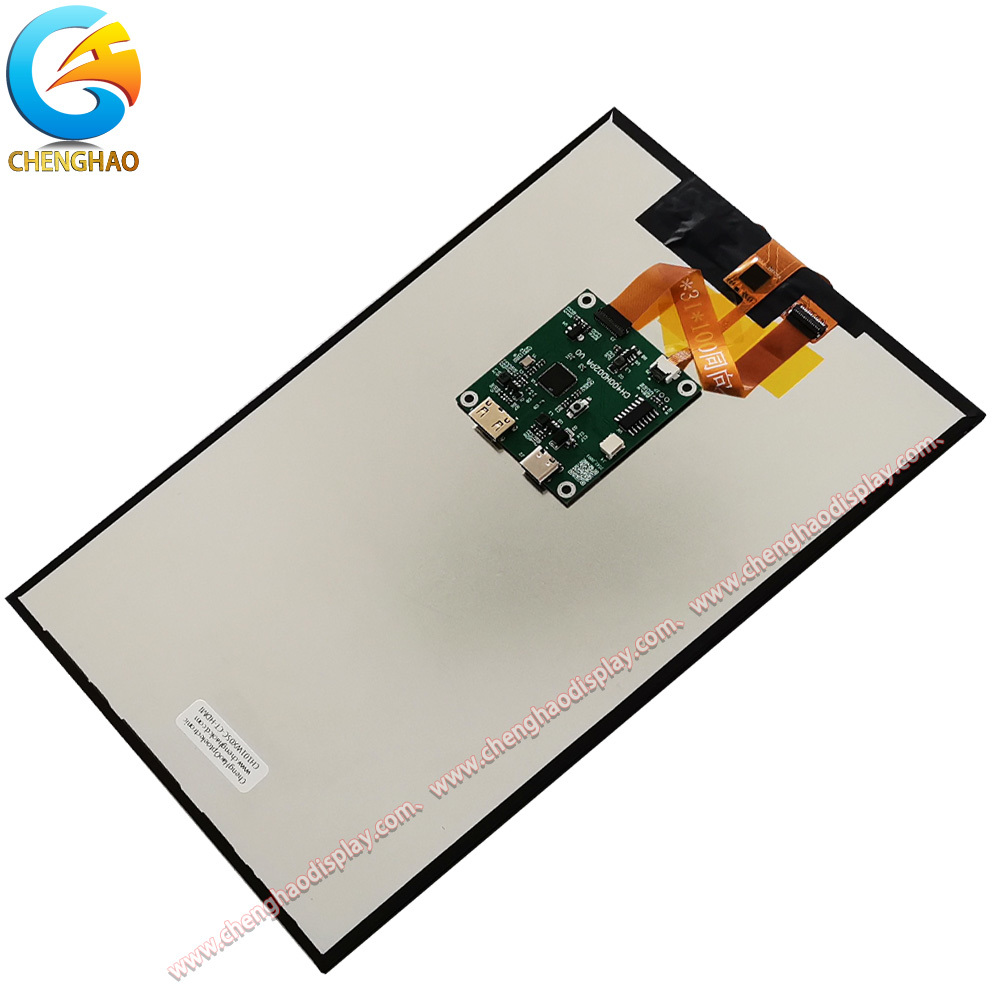

  This module features an HDMI driver board measuring 46 (W) × 50 (H) × 5.0 (D) mm, supporting communication with external devices via the HDMI interface.

• Stable Capacitive Touch (CTP) Functionality
  Integrated CTP functionality, touch signals are transmitted via USB interface, ensuring rapid response.

• 80° Full-Angle Clear Viewing Module
  With an 80/80/80/80 (up/down/left/right) viewing angle, coupled with IPS/transmissive/always-black display modes, this ensures consistent color and clear image from any viewing direction.

Technical Parameters:

Applications:

Industrial Control: Small-Scale PLC Control Cabinet Operation Panels

The CH101WX05C-CT is assembled as the local operation screen on the front panel of wall-mounted small PLC control cabinets (widely used in workshop production lines). Its compact TFT dimensions (143.4W×228.9H×2.6T mm) and total thickness of 5.5±0.3mm fit the limited internal space of control cabinets. The HDMI interface stably transmits real-time data (e.g., temperature, pressure, motor speed) from the PLC host, while the 80/80/80/80 wide viewing angles let workers read parameters clearly from side or lower positions. The CTP touch function (via USB) replaces mechanical buttons, enabling quick adjustment of set values (e.g., temperature thresholds) without physical wear, and it supports Windows CE (a common PLC system) for seamless compatibility.

Medical Equipment: Portable ECG Monitor Display-Touch Modules

In portable ECG monitors (for bedside patient monitoring in general wards), this module is integrated into the front main screen area. Its 10.1-inch IPS screen clearly shows multi-parameter data—real-time ECG waveforms, heart rate, blood oxygen, and blood pressure—with 300cd/m² brightness ensuring visibility under ward fluorescent lights. The wide viewing angles allow medical staff to check data from both sides of the bed without distortion, and the CTP touch panel (with a 1.1mm glass sensor) is easy to wipe and disinfect, reducing cross-infection risk. The HDMI interface transmits high-fidelity data from the monitor’s processor, avoiding delays in critical parameter reading.

Instrumentation: Handheld Environmental Detector Expandable Screens
For handheld environmental detectors (measuring PM2.5, formaldehyde, and temperature-humidity), the module is mounted on a flip-up top panel of the detector. Its slim total thickness (5.5±0.3mm) lets the panel fold flat when unused, saving space. When deployed, the HDMI interface connects to the detector’s Raspberry Pi-based host, displaying detailed data charts (e.g., 1-hour PM2.5 trends) . The CTP touch function enables zooming in on data curves to check minute changes, and the transmissive IPS mode ensures clarity during outdoor fieldwork (e.g., park environmental surveys)
