4.3" LCD Touch Screen Module With I2C Capacitive Touch And IPS Display Mode

Product Description:

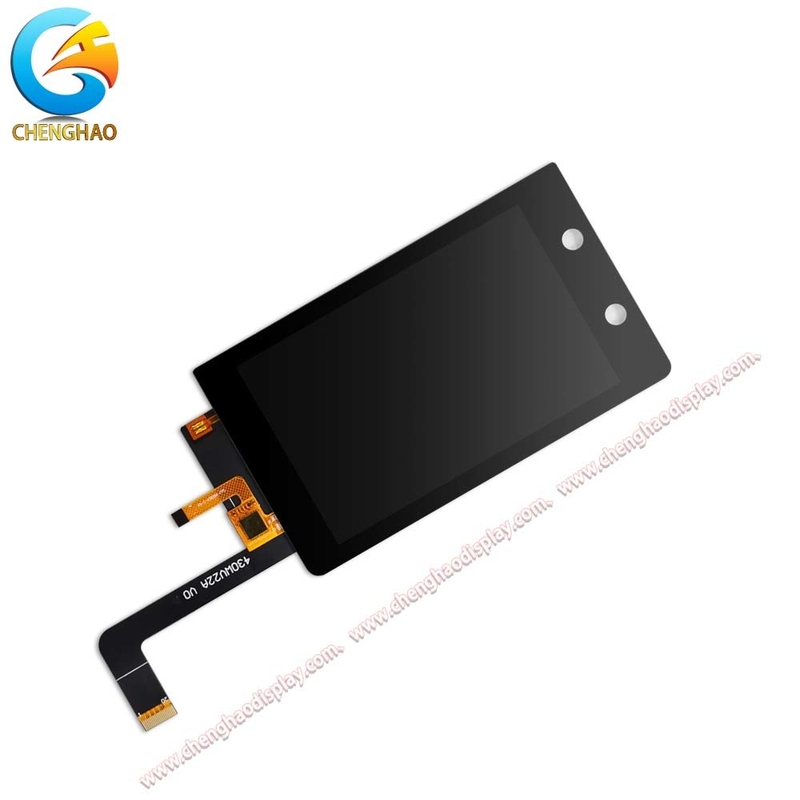

The ChengHao Display model CH430WV22B-CT is a TFT LCD that utilizes amorphous silicon TFT as a switching device and comprises of a TFT LCD panel, a touch panel, a driving IC, a back-light, and FPC.

This TFT Display features a 4.3-inch diagonally measured display with a resolution of 480*800*3-RGB.

The project utilizes the ST7701 driver to display 16M colors via R.G.B. signal input, which is mounted on the glass and interconnected via FPC, including components to drive the display module.

Moreover, the touch panel incorporated in the model is capacitive and employs the GT911 driver IC, with communication and interconnection made possible through the I2C interface. It supports multi-touch, making it an important medium for human-computer interaction.

Additionally, FPC can be customized based on customer requirements, including modifying back-light and FPC structure, interface definition, and more. This model is also RoHS compliant and halogen-free.

Features:



Facial recognition access control equipment is often used both indoors and outdoors, requiring that the installed equipment possess excellent outdoor readability. Chenghao Optoelectronic has developed an LCD touch screen with many technical features specifically for access control systems.

One of the key features is its high resolution. Designed with a resolution of 480*800 and 350 cd/m2 backlight brightness, this touch screen can achieve a clear display in both indoor and low-light outdoor environments.

In addition to high resolution, the touch screen also supports free perspective. It uses IPS display technology to achieve 80/80/80/80 Free Viewing Direction, allowing users to obtain a clear viewing angle effect from different angles. This greatly enhances user experience.

To make the screen more user-friendly, it features screen anti-glare technology. This means that the screen can absorb strong light projected onto it outdoors or in a strong light environment, providing a more comfortable viewing experience and protecting the user's eyes.

Finally, the Chenghao Optoelectronic touch screen is equipped with a capacitive touch panel for human-computer interaction. Users can simply touch the screen with their hand to interact with the device.



Technical Parameters:

Module Name: 4.3 Inch Touch LCD Display Module for Access Control Equipment

This display module, with module number CH430WV22B-CT, is perfect for access control equipment. It features a 4.3 inch TFT + CTP display type that utilizes IPS/Transmissive/Normally Black technology to deliver bright and vibrant images. The resolution of this module is 480*800 dots, with a luminance of 350cd/m2. With its viewing direction of 80/80/80/80, users can enjoy clear and detailed images from all angles.

The viewing area of this module is 56.7*93.9 mm, with an active area measuring 56.16*93.6 mm and a CTP Glass LENS of 0.7 mm. Overall, this module is the perfect choice for developers who need a reliable and high-quality display for their access control equipment.

Applications:

Support and Services:

Our Small LCD Touch Screen product comes with comprehensive technical support and services to ensure that your device functions optimally. Our team of experts is available to assist with any technical issues that may arise during installation or use of the device.

We provide product training and installation guidance to ensure that you can use the device effectively. Additionally, we offer maintenance and repair services to keep your device in top condition.

If you have any questions or concerns about our Small LCD Touch Screen product, please do not hesitate to reach out to our customer support team.

Packing and Shipping:

Product packaging:

This small LCD touch screen is carefully packaged to ensure it arrives safely at your doorstep. It is wrapped in bubble wrap and placed in a cardboard box with extra padding to prevent any damage during shipping.

Shipping:

We offer a variety of shipping options based on your location and urgency. We need 3~5 working days for packaging and shipping, while express shipping takes 7~15 working days. Once your order ships, you will receive a tracking number. Please note that shipping times may vary due to unforeseen circumstances or customs delays.

FAQ:

Q: What is the brand name of this small LCD touch screen?

A: The brand name of this small LCD touch screen is Chenghao Optoelectronic.

Q: What is the model number of this small LCD touch screen?

A: The model number of this small LCD touch screen is CH430WV22B-CT.

Q: Where is this small LCD touch screen manufactured?

A: This small LCD touch screen is manufactured in China Shenzhen.

Q: What certifications does this small LCD touch screen have?

A: This small LCD touch screen has certifications for RoHS, CE, and FCC.

Q: What is the payment term for this small LCD touch screen?

A: The payment term for this small LCD touch screen is TT.
