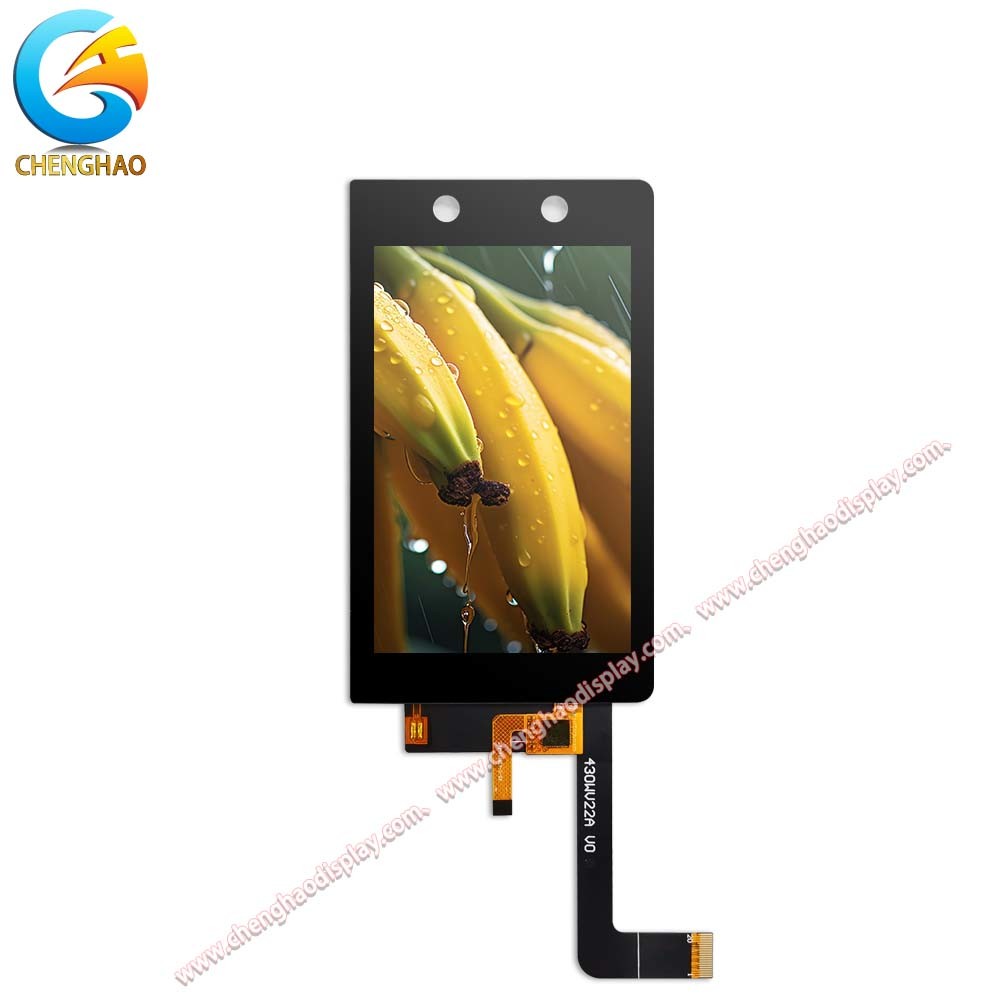

4.3 Inch LCD Touch Screen Module with 800 High Contrast Ratio IPS TFT Display Panel

Product Description:

The ChengHao Display model CH430WV22B-CT is a stunning example of color active matrix thin film transistor (TFT) liquid crystal display (LCD) technology. This particular model uses amorphous silicon TFT as a switching device, and is composed of a TFT LCD panel, a touch panel, a driving IC, a back-light, and FPC.

The TFT Display boasts a 4.3 inch diagonal active display area with a resolution of 480*800*3-RGB. The driver used for this project is the ST7701 or a compatible alternative, providing the ability to display an astonishing 16M colors via R.G.B. signal input. The driver is conveniently mounted on the glass, and interconnects with the display module via FPC.

The touch panel of this model is capacitive and features a GT911 driver IC. The touch panel communicates and interconnects with external devices through the I2C interface, and has support for multi-touch functionality, making it an essential component for human-computer interaction. Additionally, the FPC can be customized to meet the requirements of individual customers, including modifications to the back-light and FPC structure, interface definition, and more.

Overall, this model is fully RoHS compliant and free of halogen, ensuring that it is not only visually impressive but also environmentally safe.

Features:

Facial recognition access control systems are vital for maintaining security both indoors and outdoors alike. To ensure excellent outdoor readability, the equipment must be outfitted with high-quality display screens. Chenghao Optoelectronic has developed an LCD touch screen designed specifically for access control systems which boasts a range of impressive technical features:

• High Resolution - The CH430WV22B-CT boasts a resolution of 480x800, as well as 350 cd/m2 backlight brightness. This ensures clear display in a variety of environments, including indoor and low-light outdoor settings.
• Supports Free Perspective - Featuring IPS display technology, this touch LCD module enables free viewing in all directions. With an 80/80/80/80 free viewing direction, users can achieve a clear viewing angle from any position, greatly enhancing their overall experience.
• Screen Anti-Glare - The display module utilizes advanced screen anti-glare technology, effectively absorbing strong light projected onto the screen in bright outdoor settings. By reducing glare and protecting users’ eyes, this design allows for seamless interaction with the system in all locations.
• Human-Computer Interaction Support - To achieve information interaction with the device, the CH430WV22B-CT features a capacitive touch panel located on the surface of the module. With just a simple touch, users can quickly and easily engage with the access control system.

Technical Parameters:

Module No: CH430WV22B-CT

Module Type: 4.3" TFT + CTP

Display Type: IPS/Transmissive/Normally Black

Resolution: 480*800 Dots

Luminance: 350cd/m2

Viewing Direction: 80/80/80/80

Module Interface: MIPI

Touch Panel Type: Capacitive

Touch Panel Interface: I2C

Operating Temperature: -20~+70℃

Storage Temperature: -30~+80℃

FPC Pin Number: 20Pins

Module Outline Size: 68*120*3.35 mm

Viewing Area: 56.7*93.9 mm

Active Area: 56.16*93.6 mm

CTP Glass LENS: 0.7 mm

Applications:

CH430WV22B-CT is an LCD screen module specifically designed for face recognition access control systems. It has been highly praised by customers due to its reliable performance. As a leading LCD manufacturer, Chenghao Optoelectronic offers customizable modifications for this display module that cater to customer demands. The display module can be tailored to meet various requirements including, but not limited to, industrial control, medical equipment, home appliances, artificial intelligence, and automobile transportation.

With the CH430WV22B-CT LCD screen module, Chenghao Optoelectronic aims to provide customers with the best-in-class display solution for face recognition access control systems. The display module has superior performance and is designed for long-term use. Its durability and reliability make it an exceptional choice for industrial and medical equipment. Moreover, the display's customization abilities enable it to be used in various applications, including AI technology and transportation equipment.

Chenghao Optoelectronic understands the needs of customers for innovative solutions in their respective industries. With the CH430WV22B-CT LCD screen module, customers can expect improved reliability and performance in their systems. The display module is a cost-effective solution that offers exceptional value to customers in various industries. Therefore, Chenghao Optoelectronic is the go-to partner for all your LCD display requirements.

FAQ:

Q: What is the brand name of this product?

A: The brand name of this product is Chenghao Optoelectronic.

Q: What is the model number of this product?

A: The model number of this product is CH430WV22B-CT.

Q: Where is this product made?

A: This product is made in China Shenzhen.

Q: What certifications does this product have?

A: This product has RoHS, CE, and FCC certifications.

Q: What are the packaging details for this product?

A: All the products are packed in the right way to keep them safe. For small sizes of products we use tray + carton, for bigger sizes we use foam slot + carton. We also design packages according to customers' requirements.

Q: What is the delivery time for this product?

A: The delivery time for this product is 3~7 days.

Q: What are the payment terms for this product?

A: The payment terms for this product are TT.

Q: What is the supply ability of this product?

A: The supply ability of this product is 300K pcs/month.
