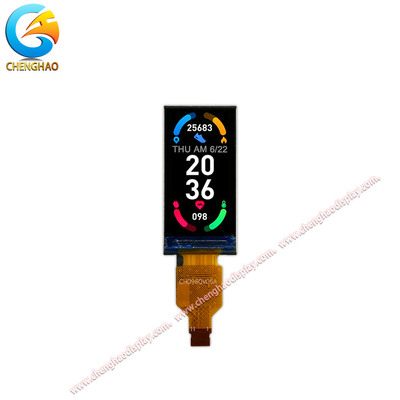

0.96 inch IPS TFT LCD Display 80x160 Resolution with 11pin FPC

Product Description:

CH096QV06A is a remarkable product offered by Chenghao Optoelectronic, designed to meet the diverse needs of various small display devices. With its impressive specifications and features, this 0.96-inch mini TFT LCD display module is a perfect choice for applications such as Bluetooth bracelets, Bluetooth headsets, and more.

• Display Mode: CH096QV06A adopts IPS/Transmissive/Normally Black display mode, ensuring excellent visibility from different viewing angles .
• Resolution: With a resolution of 80x160 dots, this module delivers clear and sharp images .
• Viewing Direction: The module offers a wide viewing angle of 80/80/80/80, allowing users to view the display content with ease  .
• Luminance: Equipped with a high-brightness backlight with a luminance of 500 cd/m2, CH096QV06A ensures excellent visibility even in bright sunlight, making it suitable for outdoor applications [5].
• Module Interface: The module is designed with an SPI interface, providing a convenient and efficient connection to your devices .
• Driver IC: The ST7735S driver IC ensures reliable performance and smooth operation of the display module .
• Operating Temperature: CH096QV06A can operate within a wide temperature range of -20°C to +70°C, making it suitable for various environments .
• Storage Temperature: With a storage temperature range of -30°C to +80°C, the module can be safely stored without compromising its functionality .
• Contrast: The module offers a contrast ratio of 800, ensuring vibrant and vivid display content .
• FPC Pin Number: CH096QV06A features 11pins on its flexible printed circuit (FPC) for easy and secure connectivity .

Features:

High-Brightness Backlight: CH096QV06A is equipped with a 500 cd/m2 high-brightness backlight, ensuring excellent visibility and supporting sunlight readability.

Miniature Size: With a module size of 13.5*27.95*1.9 mm, CH096QV06A is compact and suitable for small display devices .

Wide Application Range: This mini TFT LCD display module can be applied to various devices, including Bluetooth bracelets, Bluetooth headsets, and more .

Chenghao Optoelectronic, as a trusted provider, ensures the highest quality standards for its products . With a commitment to customer satisfaction, Chenghao Optoelectronic offers a one-year product after-sales guarantee service . Additionally, the company provides remote online technical support services and has a professional after-sales service team to assist customers . The display module is carefully packaged to prevent damage during transportation, and customized packaging options are available upon request .

Technical Parameters:

Applications:

Packing and Shipping:

FAQ:

• Q: What is the brand name of this product?
  A: The brand name of this product is Chenghao Optoelectronic.
• Q: What is the model number of this product?
  A: The model number of this product is CH096QV06A.
• Q: Where is this product manufactured?
  A: This product is manufactured in China, specifically in Shenzhen.
• Q: Is this product certified?
  A: Yes, this product is certified with CE and RoHS.
• Q: What is the minimum order quantity for this product?
  A: The minimum order quantity for this product is 1 piece.
• Q: How is the product packaged for shipping?
  A: All products are packed in a safe and secure manner. For small sizes, we use tray + carton packaging, while for bigger sizes we use foam slot + carton. We also offer customized packaging according to customers' requirements.
• Q: What is the estimated delivery time for this product?
  A: The estimated delivery time for this product is 7-15 working days.
• Q: What is the supply ability for this product?
  A: The supply ability for this product is 300,000 pieces per month.
