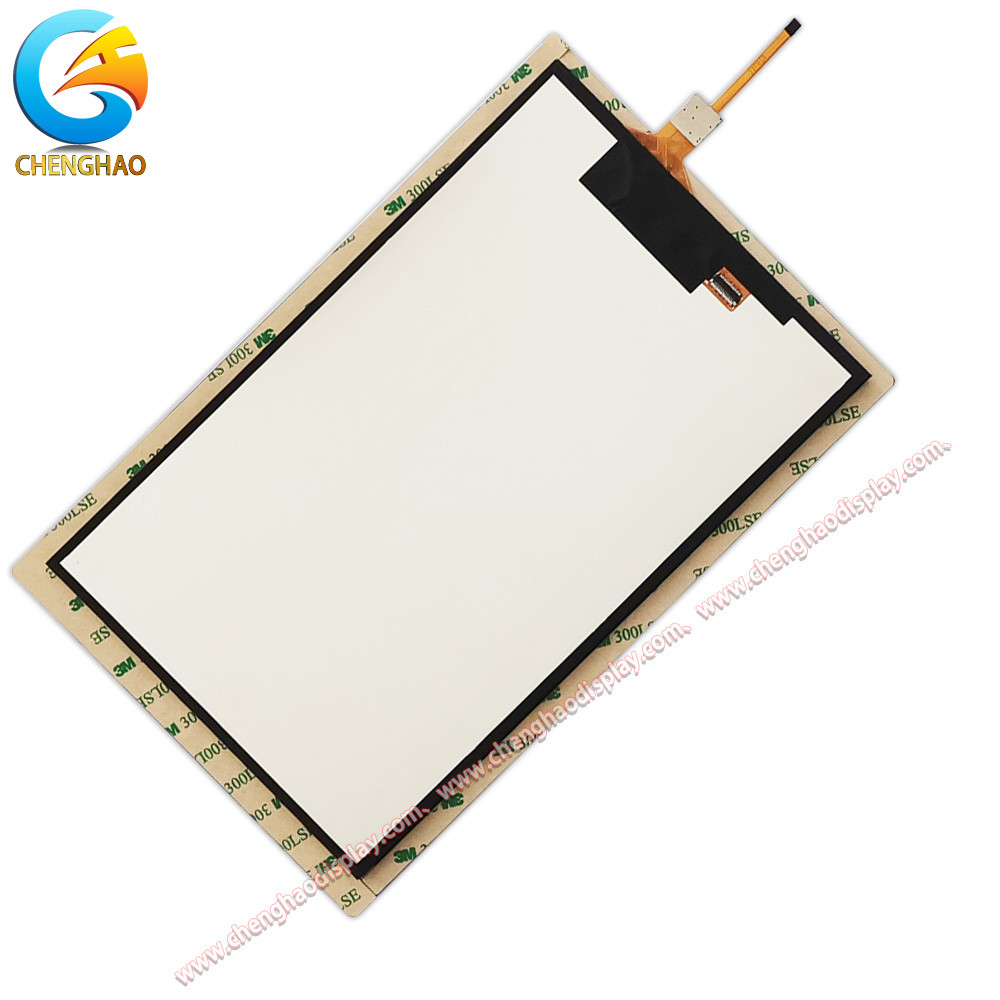

10.1 Inch Capacitive Touch Screen Module 800*1280 Full HD TFT LCD Display
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
| Minimum Order Quantity : | 100 pcs | Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements |
|---|---|---|---|
| Delivery Time : | 3~7 Days | Payment Terms : | TT or Others |
| Supply Ability : | 20000000 pcs/month |
| Place of Origin: | China，Shenzhen | Brand Name: | Chenghao Optoelectronic |
|---|---|---|---|
| Certification: | CE 、RoHS、FCC | Model Number: | CH101WX05A-CTD |
| Document: | Product Brochure PDF |
|
Detail Information |
|||
| Product Name: | Full Color TFT Module | Screen Size: | 10.1 Inch |
|---|---|---|---|
| Storage Temperature: | -30 ~ +80℃ | Warranty: | 12 Months |
| Operating Temperature: | -20 ~ +70 ℃ | Module Outline Size: | 246.16*159*5.8 Mm |
| LCM Connector: | FH26-31S-0.3SHW | Touch Panel Type: | Capacitive |
| Color Saturation: | 16 M | ||
| Highlight: | Full Color TFT Module,10. inch Full Color TFT,FT Module For Medical Equipment |
||
Product Description
Full Color TFT Module is a thin film transistor capacitive touch display with high resolution and excellent performance. Ideal for a variety of applications, it features a 1280x800 pixels TFT LCD display with a contrast ratio of up to 800:1. The viewing angles are excellent, 80/80/80/80. The display mode is Transmissive/IPS/Normal Black, and the connector type is FH26-31S-0.3SHW. The effective display area is 10.1 inches and the brightness is 700 Cd/m2 (optional). This TFT liquid crystal capacitive touch screen can operate in an extremely wide temperature range of -20~+70℃ and is suitable for various applications.
| Module No | CH101WX05A-CTD | -- |
| Viewing Angle | 80/80/80/80 | -- |
| Display Type | 10.1" TFT+CTP | -- |
| Number of dots | 1280x800 | -- |
| Module Size | 246.16*159*5.8 | mm |
| Active Area | 216.576*135.36 | mm |
| Touch Panel Type | Capacitive touch panel | -- |
| Touch Panel Interface | I2C | -- |
| Module Interface | Optional SPI/LVDS/MCU/MIPI/RGB/HDMI... | -- |
| Operating Temperature |
-20 ~ +70 |
℃ |
| Luminance | 700 ( optional 200~2800) | cd/m2 |
| Storage Temperature | -30 ~ +80 | ℃ |
ThisFull Color TFT Module is widely used in the market for its excellent performance and is especially suitable for POS terminals, medical equipment, industrial control, aerospace and navigation, retail, gaming, digital signage and other applications.
As a professional LCD manufacturer, Chenghao Optoelectronic provides customers with highly customized display module services. Our engineering team will redesign the display solution based on CH101WX05A-CTD based on the actual needs of the customer's project and provide samples for customer evaluation. The following is our customized service range:
Display solution customization: We can carry out multiple customizations for CH101WX05A-CTD according to customer requirements. For example, modify the external structure and shape of the FPC, provide a variety of interface type choices (such as SPI, MCU, RGB, MIPI, LVDS, HDMI, etc.), adjust the backlight brightness range (supports brightness adjustment of 200~2800 nits), replace or disassemble Touch screen (CTP, RTP or no touch screen solution), as well as adding anti-glare and other features.
New display solution design: In addition to customization based on CH101WX05A-CTD, we can also design a new display solution for customers based on their special needs. In terms of appearance design, interface type, backlight brightness and touch screen, we will work closely with customers to provide professional technical support and solutions.
We are committed to being your partner and providing you with an excellent product and service experience. Whether you are customizing an existing product or designing a completely new solution, we will support you every step of the way to ensure product quality and customer satisfaction.
TFT LCD Capacitive Touchscreen Technical Support and Services
We are proud to offer technical support and services for our TFT LCD Capacitive Touchscreen products. Our expert team of technicians will be able to assist with installation, setup, troubleshooting, and repair.
We provide software and firmware updates for our products, as well as detailed product manuals and instructions. We also offer a wide range of tutorials and how-to guides that will help you get the most out of your device.
If you have any questions or need help with your TFT LCD Capacitive Touchscreen, please contact us and our customer service representatives will be happy to assist you.
