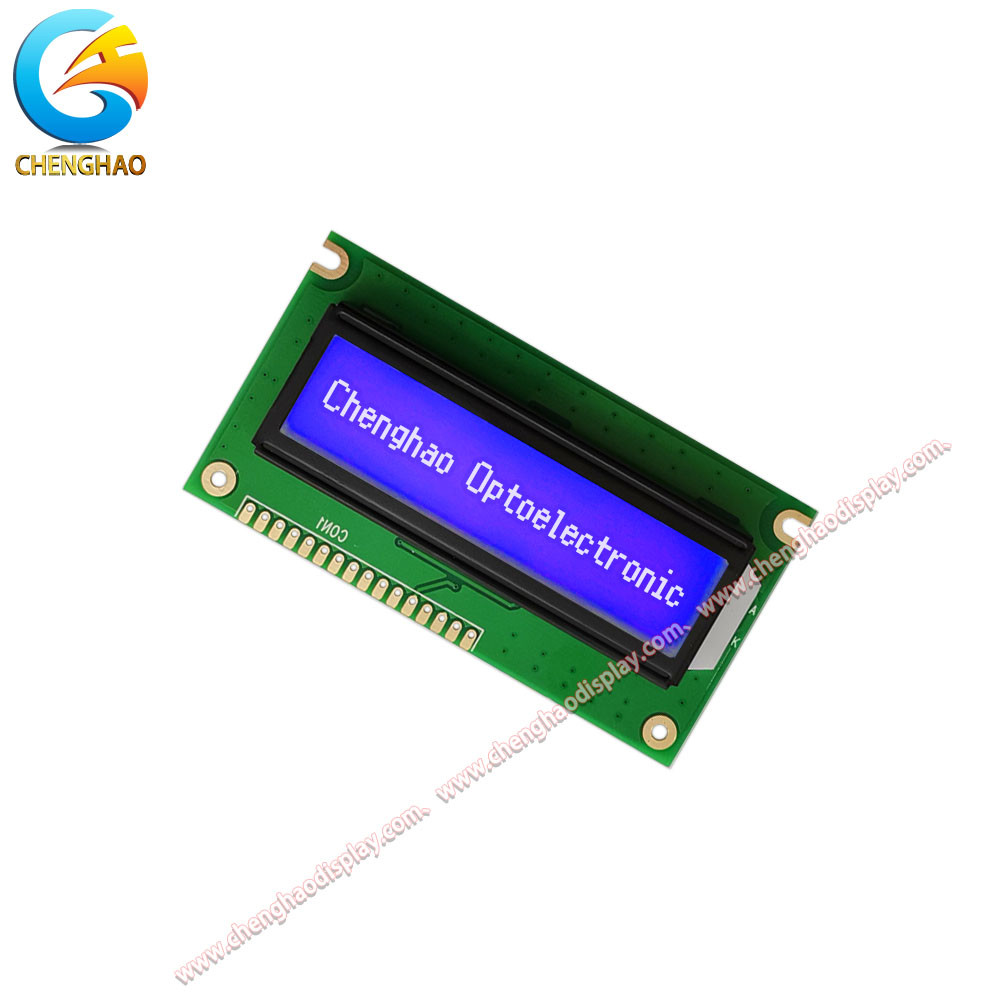

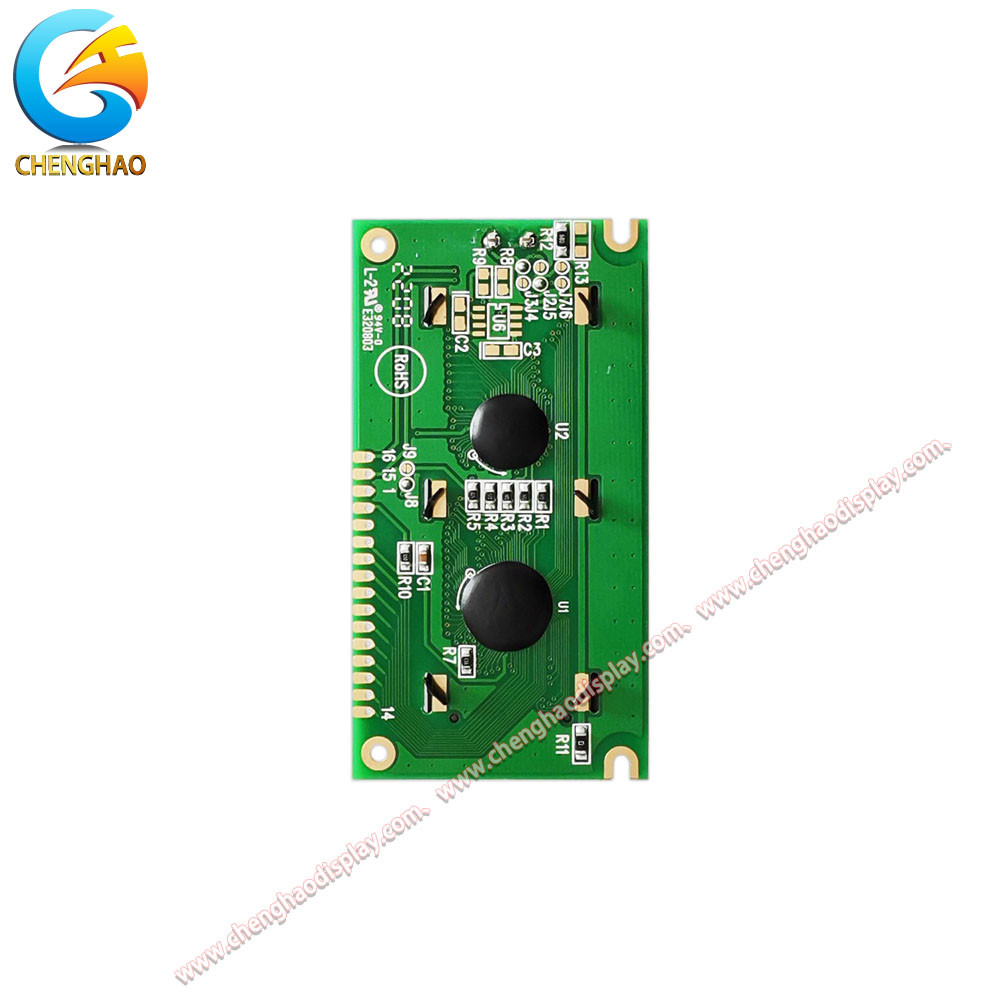

16x2 Custom Lcd Module 1602 Character Serial Blue Backlight

Minimum Order Quantity : 1 Pcs Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements.
Delivery Time : 3~5 working days Payment Terms : TT or negotiation
Supply Ability : 5000K Pcs/Month
Place of Origin: Shenzhen,China Brand Name: Chenghao Optoelectronic
Certification: CE / RoHS / FCC Model Number: CH1602C01A

Detail Information

Product Name: 16x2 Lcd Display Module INPUT DATA: 68 SERIES
EFFECTIVE V/AREA: 56.2(W)×11.5(H) Mm CHARACTER SIZE: 0.55(W)×0.65(H) Mm
DIMENSIONAL OUTLINE: 84.0×44.0×12.5 Mm
High Light:

16x2 custom lcd module


backlight custom lcd module


custom lcd1602 module

Product Description

Product Description:

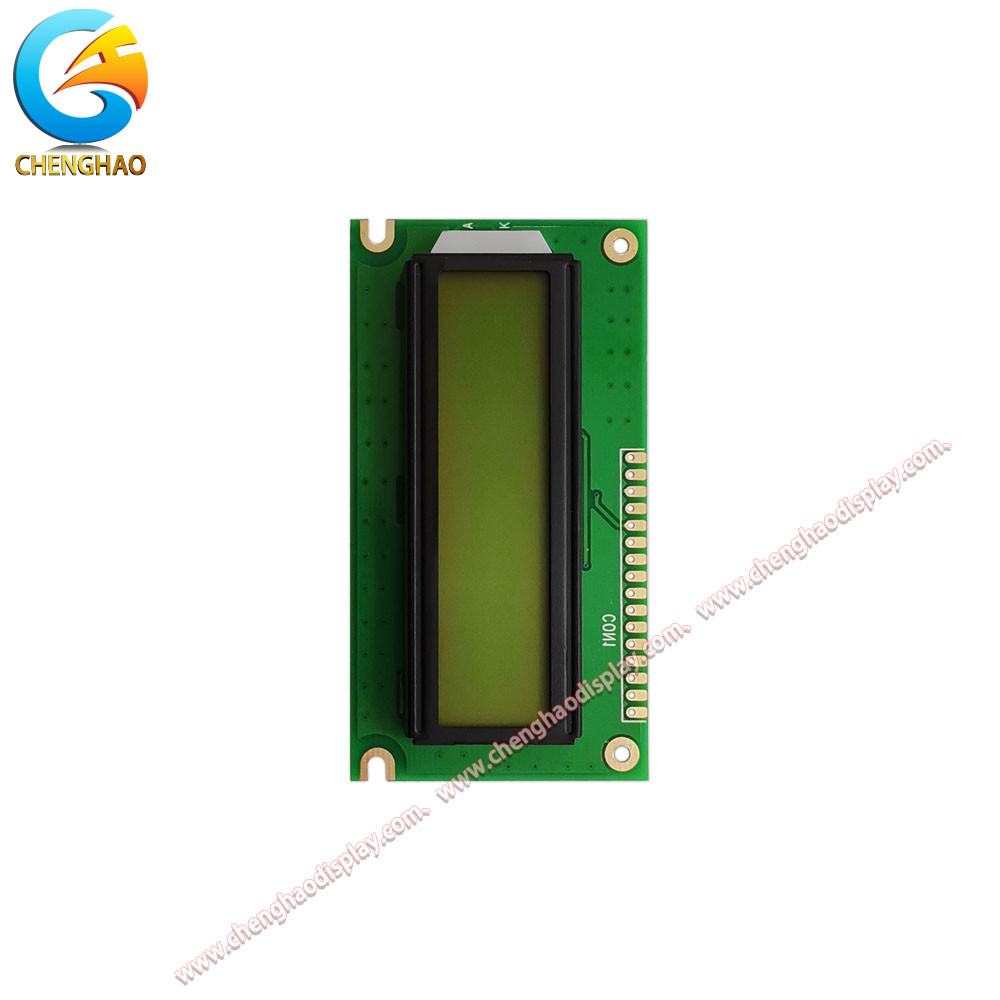

The Monochrome LCD display is a reliable and cost-effective monochrome LCD module with dimensions of 84.0×44.0×12.5 mm. It is widely used in a variety of applications such as industrial control, medical equipment, and consumer electronics. The display points are blue-black, the display background is yellow-green, and the border is 0.6T. The controller is SPLC780D1 or equivalent.#Graphic lcd

This high-performance monochrome LCD module is cost-effective and provides excellent display quality. It also features fast response time, wide temperature range, low power consumption, etc. It is suitable for indoor and outdoor applications and is ideal for industrial controls, medical equipment and consumer electronics.


Technical Parameters:

Features Specifications
Bezel 0.6T
Display Dot Blue-Black
Number of Characters 16 Characters x 2 Lines
Input Data 68 Series
Duty 1/16DUTY
Display Background Yellow-Green
Controller SPLC780D1 or equivalent
Effective V/Area 56.2(W)×11.5(H) mm
Character Size 0.55(W)×0.65(H) mm
Operating Temperature -20 ℃ ~70 ℃
Keywords Graphic lcd display 240x128,Graphic lcd 128x64

Block Diagram


16x2 Custom Lcd Module 1602 Character Serial Blue Backlight 0


Terminal Functions


2 VDD +5.0V Power Supply for logic
3 V0 - Operating voltage for LCD
4 RS H/L H: Data L: Instruction code
5 R/W H/L H: Read L: Write
6 E H-L Chip Enable signal
7~14 DB0~DB7 H/L Data bus line
15 LEDA +5.0V Power Supply for LED Back Light
16 LEDK 0V




Dimensional Outline


16x2 Custom Lcd Module 1602 Character Serial Blue Backlight 1

Support and Services:

Monochrome LCD Display Technical Support & Service
We provide technical support and service for Monochrome LCD Display.

  • Installation and setup guidance
  • Troubleshooting of hardware and software
  • Maintenance and repair services
  • Replacement of defective parts

For any inquiries or questions, please contact our customer service department.


Packing and Shipping:

1. All of our shipping boxes meet the export hardness standards
2. All of our boxes will be padded with foam inside to prevent screen damage
3. Our product packaging adopts a large box with small boxes
4. The weight of each box does not exceed 3.5 kilograms, and the dimensions may vary depending on the standard. We will use pallets or wooden frames for the goods
The above packaging methods are all to prevent damage to the display module during transportation, and we can also package the goods according to the customer's wishes.


Q&A for Monochrome LCD Display
  • Q1: What is the Brand Name of Monochrome LCD Display?
    A1: The Brand Name is Chenghao Optoelectronic.
  • Q2: What is the Model Number of Monochrome LCD Display?
    A2: The Model Number is CH1602C01A.
  • Q3: Where is the Place of Origin of Monochrome LCD Display?
    A3: The Place of Origin is Shenzhen, China.
  • Q4: What are the Certifications of Monochrome LCD Display?
    A4: The Certifications of Monochrome LCD Display are CE / RoHS / FCC.
  • Q5: What is the Minimum Order Quantity of Monochrome LCD Display?
    A5: The Minimum Order Quantity of Monochrome LCD Display is 1 Pcs.
