16x2 1602 Character Alphanumeric Display Lcd White Led Backlight For Arduino
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsApp : +8615919862398
| Minimum Order Quantity : | 1 Pcs | Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements. |
|---|---|---|---|
| Delivery Time : | 3~5 working days | Payment Terms : | TT or negotiation |
| Supply Ability : | 5000K Pcs/Month |
| Place of Origin: | Shenzhen,China | Brand Name: | Chenghao Optoelectronic |
|---|---|---|---|
| Certification: | CE / RoHS / FCC | Model Number: | CH1602C01A |
|
Detail Information |
|||
| Product Name: | Cog Graphic Lcd Module | BACKLIGHT: | LED (YELLOW-GREEN) |
|---|---|---|---|
| VIEW AREA: | 66(W)×16(H) Mm | DISPLAY BACKGROUNTND: | YELLOW-GREEN |
| CHARACTER SIZE: | 0.55(W)×0.65(H) Mm | DUTY: | 1/16DUTY |
| NUMBER OF CHARACTERS: | 16 Characters X 2 Lines | STORAGE TEMPERATURE: | -30 OC ~ 80 ℃ |
| BEZEL: | 0.6T | ||
| High Light: | 1602 graphic lcd module,CH1602C01A graphic lcd module,16x2 cog lcd module |
||
Product Description

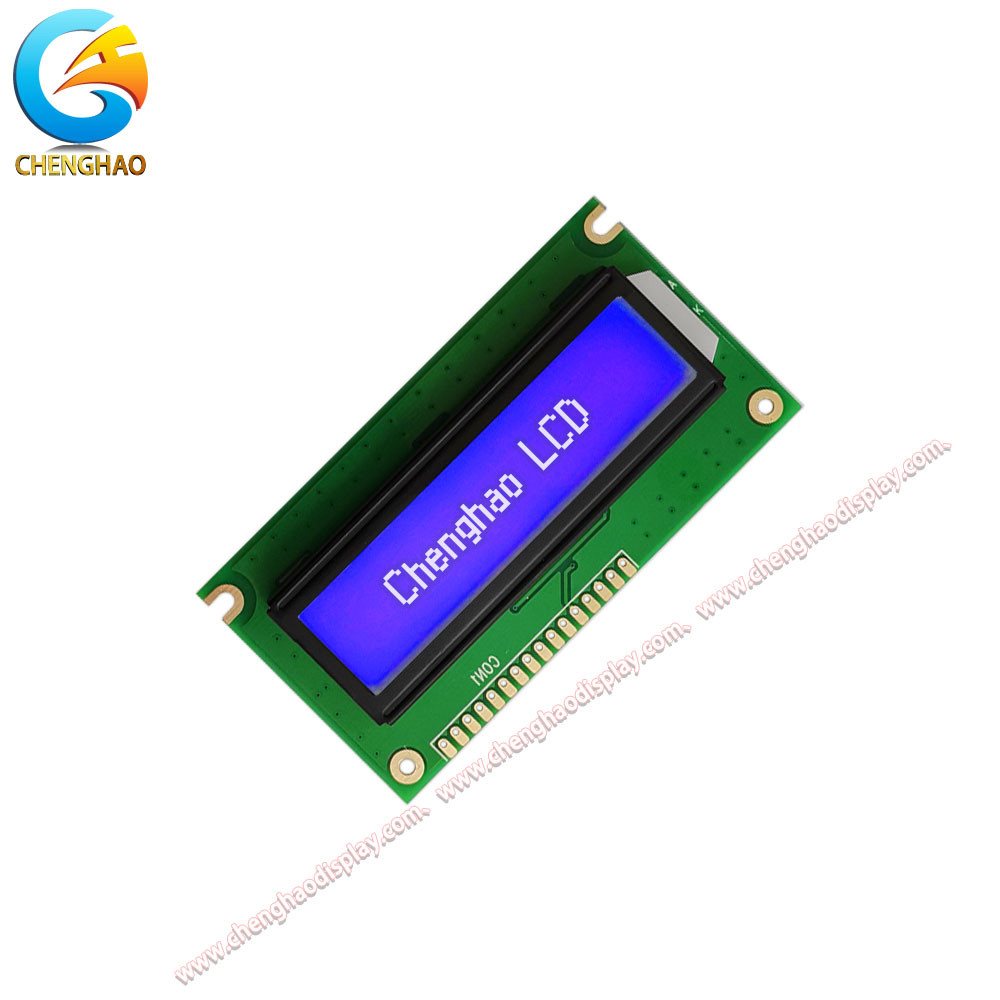

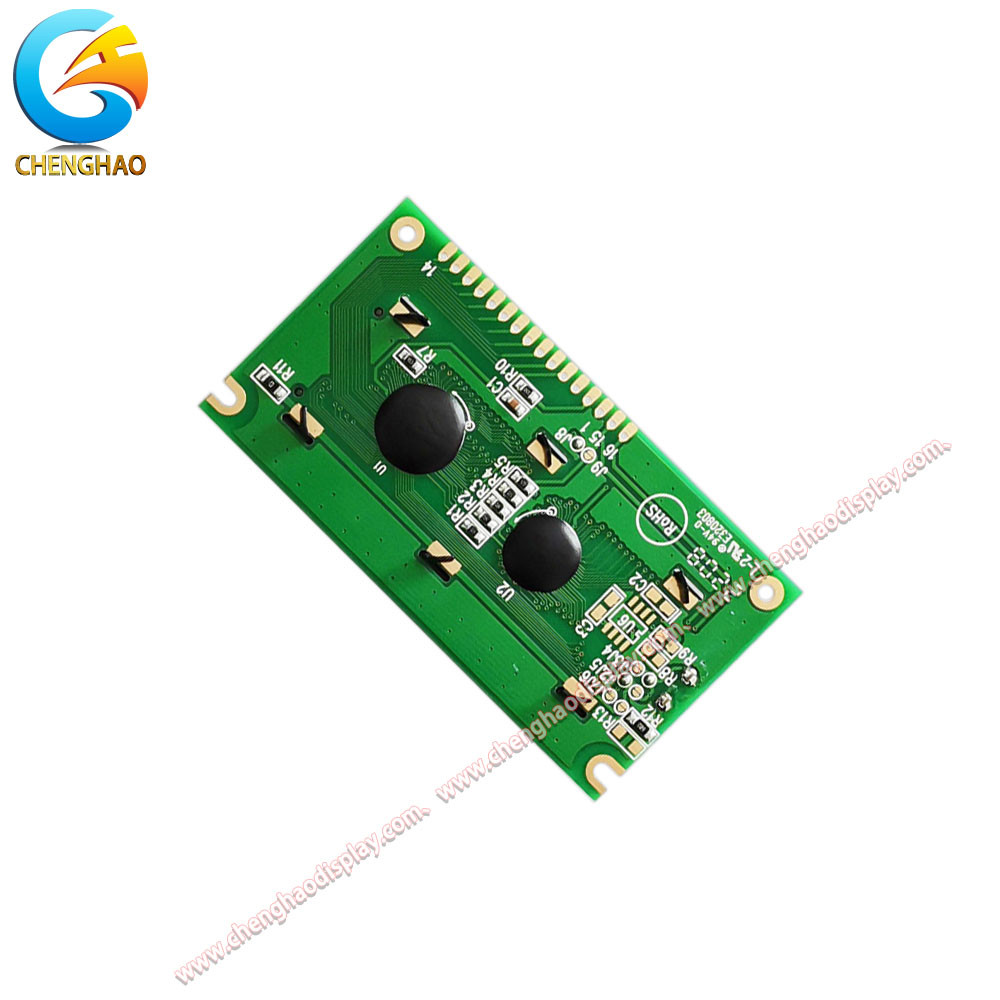

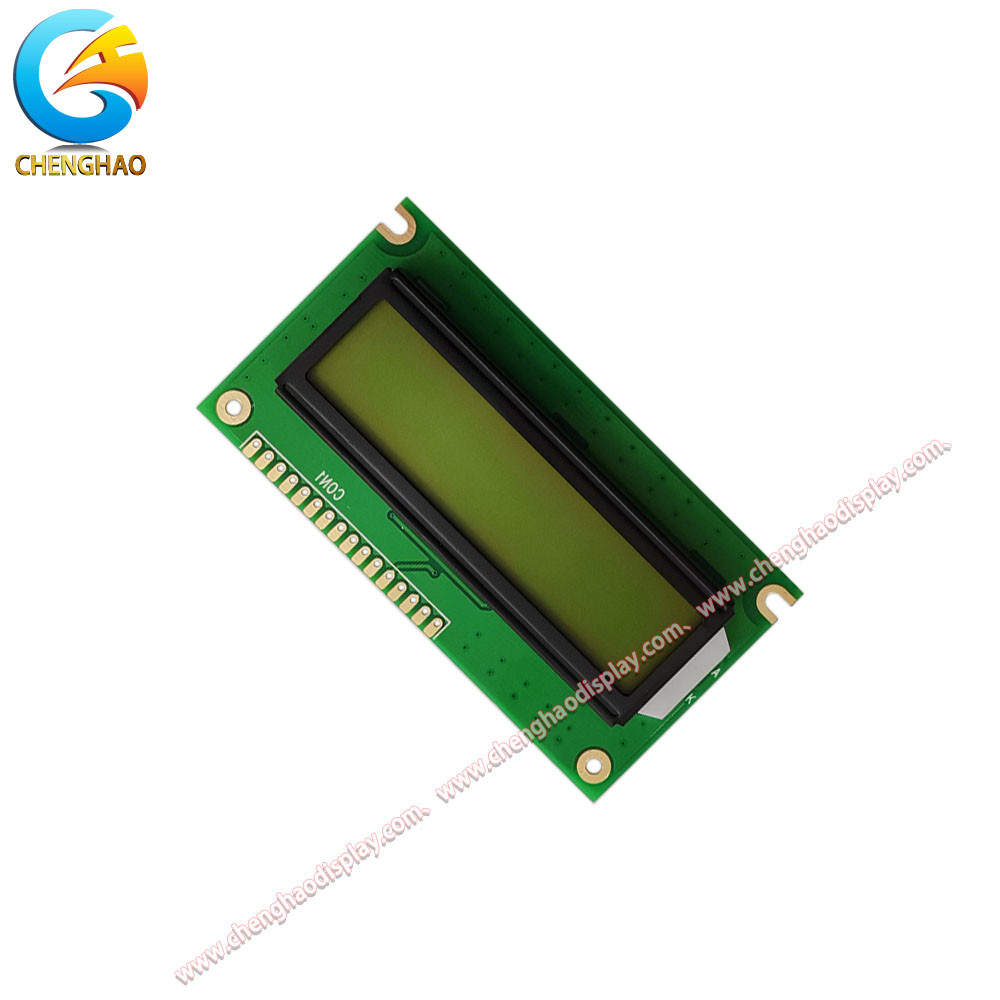

This monochrome LCD display is a high-performance LCD module with LED backlight (yellow-green). Its overall dimensions are 84.0×44.0×12.5 mm, and its working load is 1/16DUTY. The character spacing is 2.95 (width) × 5.55 (height) mm, and the viewing area is 66 (width) × 16 (height) mm. Offering clear viewing and long life, this monochrome LCD screen is reliable and durable, making it an ideal choice for many applications, making it ideal for a variety of applications including industrial, medical, automotive and instrumentation.
| Attributes | Details |
|---|---|
| DUTY | 1/16DUTY |
| STORAGE TEMPERATURE | -30 ~ 80 ℃ |
| CONTROLLER | SPLC780D1 OR EQUIVALENT |
| EFFECTIVE V/AREA | 56.2(W)×11.5(H) Mm |
| DISPLAY DOT | BLUE-BLACK |
| INPUT DATA | 68 SERIES |
| OPERATING TEMPERATURE | -20 ~70 ℃ |
| DIMENSIONAL OUTLINE | 84.0×44.0×12.5 Mm |
| VIEW ANGLE | 6 O'CLOCK |
| BACKLIGHT | LED (YELLOW-GREEN) |
|
Other Lcd module |
Graphic lcd display 320x240 & Graphic lcd module |
Chenghao Optoelectronics monochrome LCD display CH1602C01A is a reliable and high-quality product made in Shenzhen, China. It has passed CE, RoHS and FCC certification. With the advantages of 50000H ultra-long service life and low power consumption, it is an ideal choice for automotive electronics, telecommunications, aerospace , medical equipment, industrial control and other applications.
Terminal Functions
| PIN NO. | SYMBOL | LEVEL | FUNCTION |
| 1 | VSS | 0V | GND |
| 2 | VDD | +5.0V | Power Supply for logic |
| 3 | V0 | - | Operating voltage for LCD |
| 4 | RS | H/L | H: Data L: Instruction code |
| 5 | R/W | H/L | H: Read L: Write |
| 6 | E | H-L | Chip Enable signal |
| 7~14 | DB0~DB7 | H/L | Data bus line |
| 15 | LEDA | +5.0V | Power Supply for LED Back Light |
| 16 | LEDK | 0V |
Power Supply And Contrast Adjust Circuit
Absolute Maximum Ratings
| PARAMETER | SYMBOL | RATINGS | UNITS |
| POWER SUPPLY FOR LOGIC | VDD-VSS | -0 .3~ 7.0 | V |
| POWER SUPPLY FOR LCD DRIVER | VDD～V5 | 0 ~ 10.0 | V |
| INPUT VOLTAGE | VIN | VSS ~ VDD | V |
| OPERATING TEMPERATURE | Topr | -20 ~70 | ℃ |
| STORAGE TEMPERATURE | Tstg | -30 ~ 80 | ℃ |
We provide technical support and services for monochrome LCD monitors. Our technical support team is available 24/7 to assist you with any questions or concerns you may have. In addition, we provide a variety of services, including troubleshooting, repairs, and software debugging, to help you use our monochrome LCD monitors quickly and correctly to provide you with the best customer experience.
Q1:What is the brand of the Monochrome LCD Display?
A1:The brand of the Monochrome LCD Display is Chenghao Optoelectronic.
Q2:What is the model number of the Monochrome LCD Display?
A2:The model number of the Monochrome LCD Display is CH1602C01A.
Q3:Where is the Monochrome LCD Display from?
A3:The Monochrome LCD Display is from Shenzhen,China.
Q4:What certifications does the Monochrome LCD Display have?
A4:The Monochrome LCD Display has CE / RoHS / FCC certifications.
Q5:What is the minimum order quantity for the Monochrome LCD Display?
A5:The minimum order quantity is 1 Pcs.
