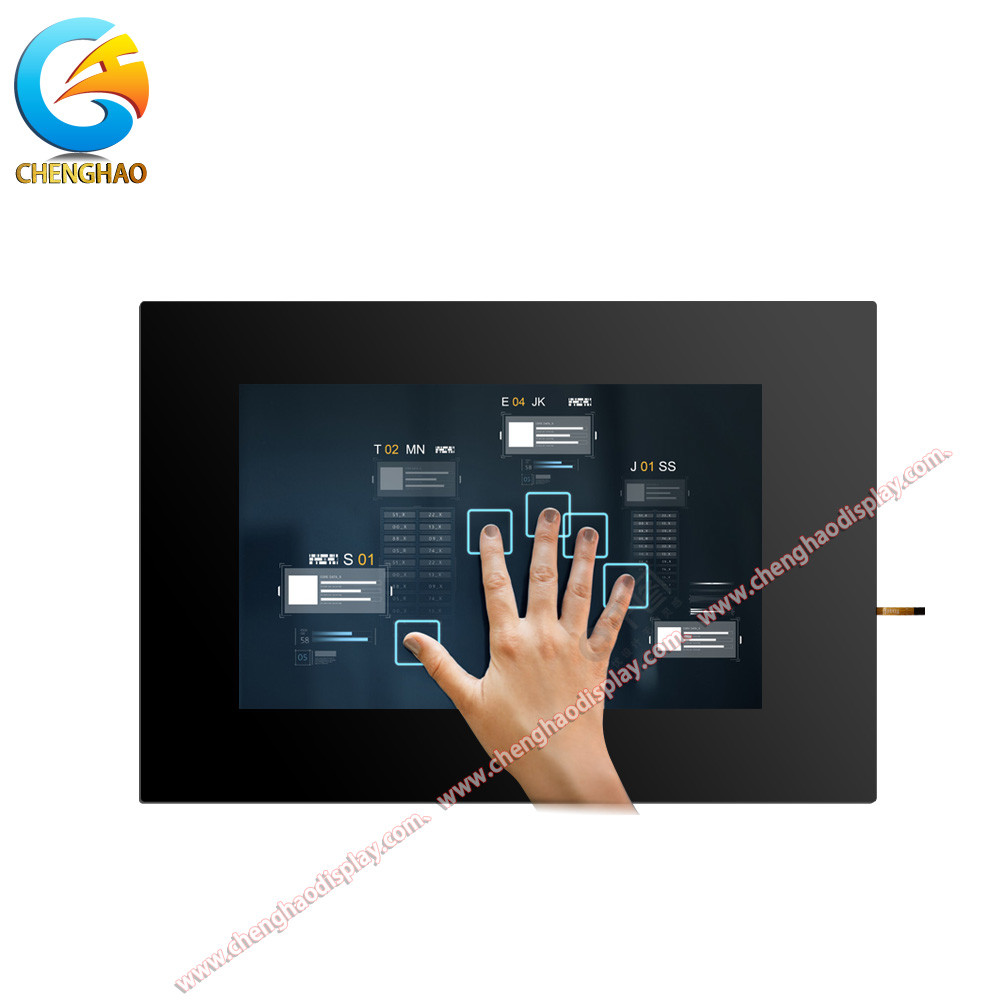

10.1 Inch Capacitive Touch Screen Module 800*1280 Full HD TFT LCD Display

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH101WX05A-CTB

Detail Information

Product Name: 10.1 Inch Touch Screen Display Resolution: 800*1280 Dots
Viewing Angle: 80/80/80/80 Operation Temp.:: -20℃~+70℃
Luminance: 300cd/m2 Display Mode: IPS
Storage Temp: -30℃~+80℃ Color: 16M
High Light:

10.1 inch Capacitive Touch Screen Module


Capacitive Touch TFT LCD Display


800*1280 TFT LCD Display

Product Description

10.1 inch Capacitive Touch Screen Module 800*1280 Full HD Tft Lcd Display


Description of 10.1 inch tft lcd10.1 Inch Capacitive Touch Screen Module 800*1280 Full HD TFT LCD Display 0


Introducing the Full HD 10.1 inch lcd Module with TP, Model No. CH101WS05A-CTB, a high-quality display module that is perfect for elevators. The module boasts a resolution of 800*1280 pixels and features IPS/Transmissive/Normally Black display technology, providing clear and vibrant images from any angle with a viewing direction of 80/80/80/80.

The module has a module size of 2043095.53mm and a viewing area of 135.66(W)×216.88(H)mm, with an active area of 135.36(W)×216.576(H)mm. It can withstand a wide range of temperatures, with an operating temperature range of -20 ~ +70 ℃ and a storage temperature range of -30 ~ +80 ℃. With a life span of 30000 hours, this display module is built to last.



Specification of 10.1 inch lcd display


Module No CH101WS05A-CTB
Resolution 800*1280 Pixels
Viewing Direction  80/80/80/80
Display Mode IPS/Transmissive/Normally Black
Luminance 300 cd/m2
Operating Temp -20 ~ +70℃

Storage Temp

-30 ~ +80℃
Module Size 204*309*5.53 mm



Quick detail of 10.1 inch lcd display module


10.1 Inch Capacitive Touch Screen Module 800*1280 Full HD TFT LCD Display 1

Keywords: 10.1 inch lcd display module

Lcd Type:10.1” TFT+CTP

Display Mode:Transmissive/Normally Black/IPS

Number of dots:800*(RGB)*1280

Viewing Direction:80/80/80/80

Operation temp.:-20℃~+70℃,≤90%RH
Storage temp.:-30℃~+80℃,≤90%RH
The general tolerance is ±0.3mm
All material in the drawing comply with the RoHS
ITO Glass: 0.55mm
Lens Glass: 2.0mm
IC: GT911
2.Operation Voltage:2.8V-3.3 V
10.1 Inch Capacitive Touch Screen Module 800*1280 Full HD TFT LCD Display 2
4.The cover hardness:6H

Luminance:300 cd/m2

Lens Outline Size:204*309*5.53 mm

TFT Outline Size:143*228.6 mm

Sensor Outline Size:144*227.2 mm

Viewing Area:135.66*216.88 mm




About After-sales


This product is certified with RoHS, CE, and FCC, ensuring its compliance with international safety and quality standards. It is available for delivery in 7-15 working days and can be shipped to Shenzhen, China.

For payment, we accept T/T, a secure and reliable method of payment. In addition, we offer one-year warranty service and remote online technical support to ensure complete customer satisfaction.

We offer flexible packaging options to suit your needs, including tray + carton for small sizes and foam slot + carton for larger sizes. We can also customize the packaging to meet your specific requirements.



10.1 Inch Capacitive Touch Screen Module 800*1280 Full HD TFT LCD Display 3




Q: What is the production capacity of Chenghao Optoelectronic?
A: Chenghao Optoelectronic has a production capacity of 300K pcs/month.


Q: Does Chenghao Optoelectronic provide OEM and ODM services?
A: Yes, Chenghao Optoelectronic does provide OEM and ODM services.

Q: What kind of LCD solutions does Chenghao Optoelectronic provide?
A: Chenghao Optoelectronic provides one-stop liquid crystal display solutions.

Q: Does Chenghao Optoelectronic have an R&D technical team?
A: Yes, Chenghao Optoelectronic has an R&D technical team.

Q: What are the advantages of buying from Chenghao Optoelectronic?
A: Customers can enjoy factory direct selling prices, engineers directly connect with customers and assist in solving customer problems, and there is a long-term and stable supply.

Q: What is the delivery period for Chenghao Optoelectronic products?
A: The delivery period for Chenghao Optoelectronic products is 7-15 working days.
