4 Line 8bits SPI 240x320 TFT LCD Screen 2 Inch Free Viewing Angle With I2C PCAP TP

Product Description

4 Line 8bits SPI 240x320 Tft Lcd 2 Inch Free Viewing Angle With I2C Pcap TP

Description of 240x320 lcd

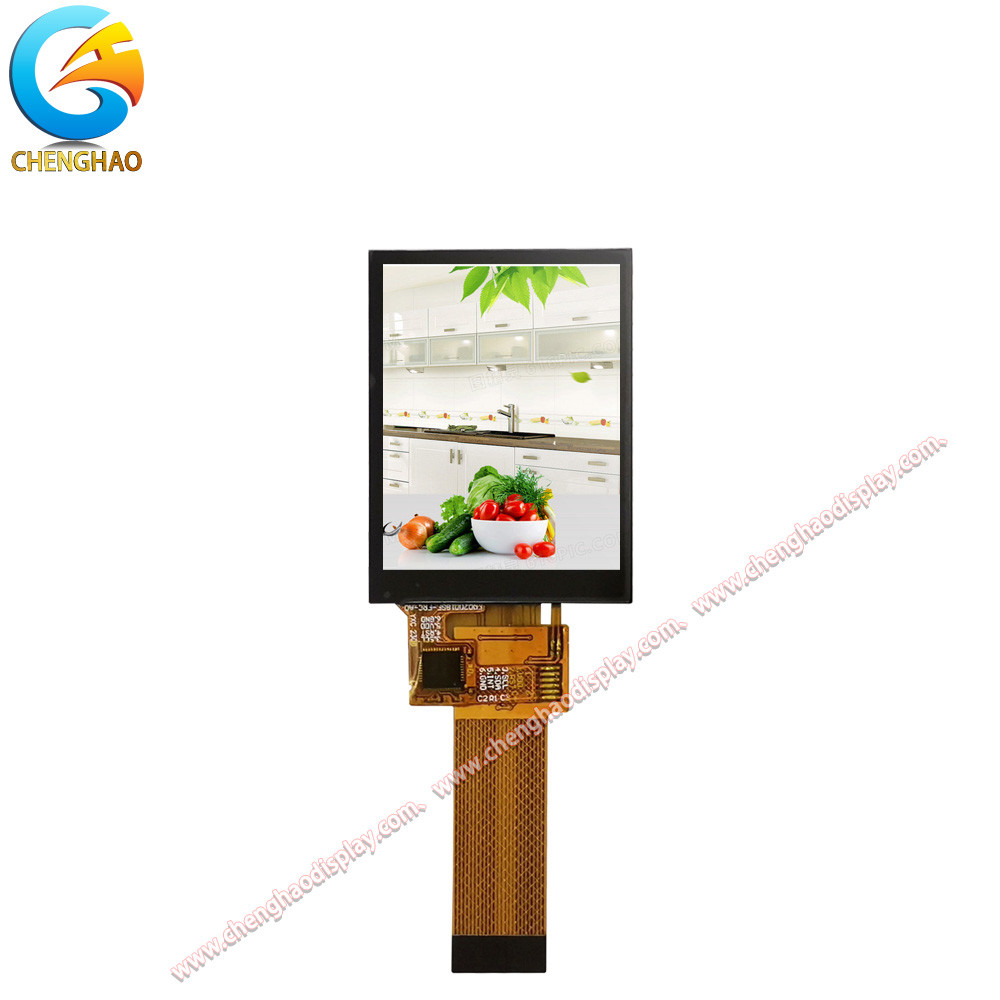

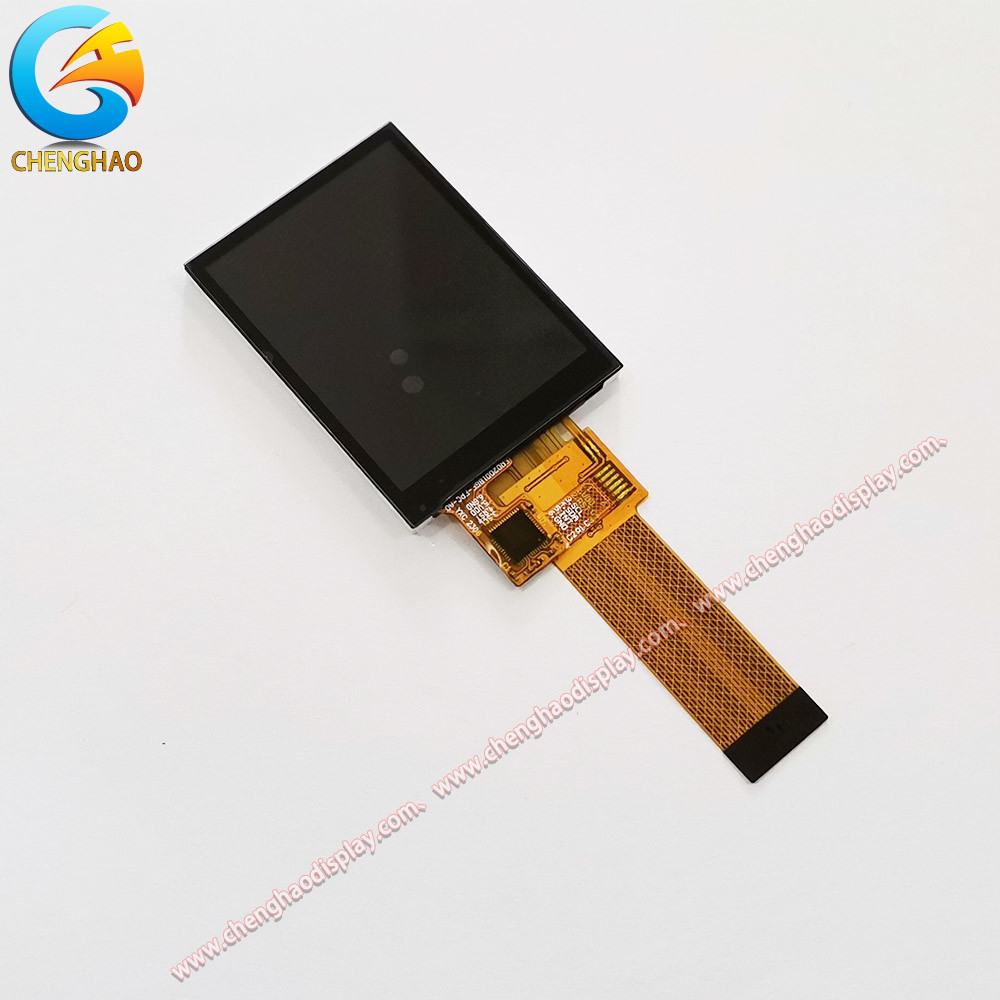

Introducing the CH200QV16A-CT, a 2 inch LCD display module that boasts a resolution of 240*320 dots, making it perfect for a wide range of applications. This display module is a top-of-the-line product that features IPS/Transmissive/Normally Black technology, ensuring that you get the best possible viewing experience. With a viewing direction of 80/80/80/80, you'll be able to view the display from almost any angle.

The CH200QV16A-CT is compact and measures just 34.6(W)×47.8(H)×3.13(T) mm, making it perfect for use in small devices. The viewing area of the display is 31.1(W)×41.3(H)mm, while the active area is 30.6(W)×40.8(H)mm. The display is capable of operating in temperatures ranging from -20 to +70 ℃, and can be stored in temperatures ranging from -30 to +80 ℃. With a life span of 30000 hours, this display module is built to last.

Specification of 240x320 lcd display

Quick Detail of lcd display module 240x320

Product Name: tft lcd touch screen module

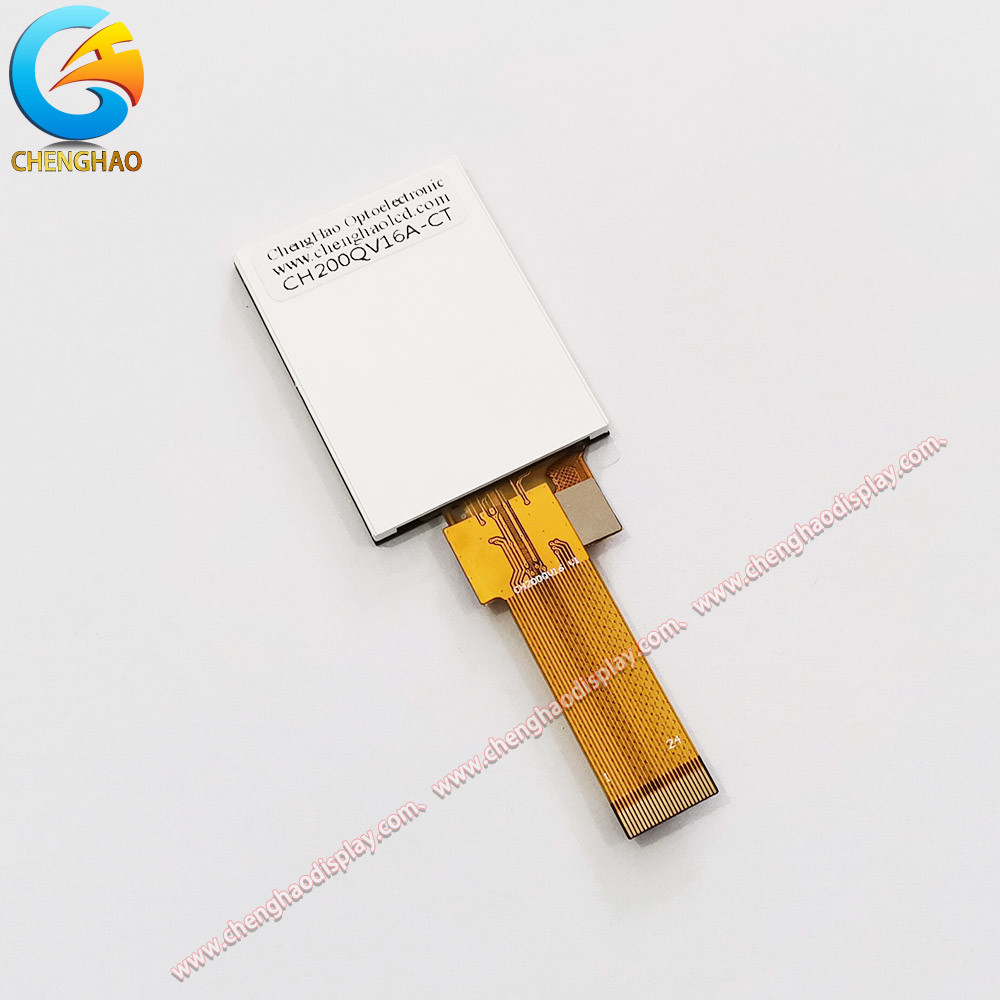

Module No:  CH200QV16A-CT

LCD type: 2" IPS TFT+CTP

Dot arrangement: 240*320 dots

Display Mode: IPS/Transmissive/Normally Black

Viewing Direction: 80/80/80/80

Luminance: 260 cd/m2

Life Time: 30000

Operating temperature: -20 ~ +70 ℃

Color filter array: RGB vertical stripe

Driver IC: ST7789V

CTP type: LENS Glass + ITO Film + Adhesive

Storage temperature: -30 ~ +80 ℃

Surface Treatment: 6H

CTP Driver IC: FT6336

Backlight Color: White

Module size: 34.6(W)×47.8(H)×3.13(T) mm

Dot pitch: 0.1275(W)×0.1275(H) mm

LENS viewing area: 31.1(W)×41.3(H) mm

TFT Interface:  4-line 8bits SPI

Active area: 30.6(W)×40.8(H) mm

Application of small tft display

The CH200QV16A-CT is perfect for use in a wide range of applications. It can be used in pulse detectors, as well as in other devices that require a high-quality display. The MOQ for this product is just 1 piece, and we offer regular packaging that is designed to keep the product safe during shipping. For small sizes of products, we use tray + carton, while for bigger sizes, we use foam slot + carton. We also design packages according to customers' requirements.

Overall, the CH200QV16A-CT is a top-of-the-line product that is perfect for use in a wide range of applications. With its high resolution, IPS/Transmissive/Normally Black technology, and excellent viewing angle, this display module is sure to meet all your needs.

Advantages of 240x320 spi tft lcd

This product comes with RoHS, CE, and FCC certificates, ensuring that it meets all the necessary safety and quality standards. We offer a delivery period of 7-15 working days, and shipping to Shenzhen, China is available. Our payment method is T/T, and we offer after-sale protection in the form of a one-year warranty service and remote online technical support.
