300nits SPI Circular Tft Lcd Display 40P Open Frame Lcd Module
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
Minimum Order Quantity : | 100 pcs | Price : | / |
---|---|---|---|
Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
Place of Origin: | ShenZhen, China | Brand Name: | Chenghao/Oem |
---|---|---|---|
Certification: | ROHS、ISO9001、CE | Model Number: | CH700WS02D-CTG |
Document: | Product Brochure PDF |
Detail Information |
|||
Product Name: | High Brightness LCD Monitor | Resolution: | 1024*600 Dots |
---|---|---|---|
Viewing Angle: | 80/80/80/80 | Display Mode: | IPS /|Transmissive/Normally Black |
Luminance: | 1000cd/m2 | Storage Temp: | -20~+70 ℃ |
Operating Temp: | -30~+80 ℃ | TP Interface: | I2C |
Highlight: | 1000cd/m2 LCD Touchscreen Display,Customized LCD Touchscreen Display,IPS TFT LCD Touchscreen Display |
Product Description
1000cd/m2 LCD Touchscreen Display Customized 7 inch 1024*600 Pixels Tft
Description of Medical LCD Monitor

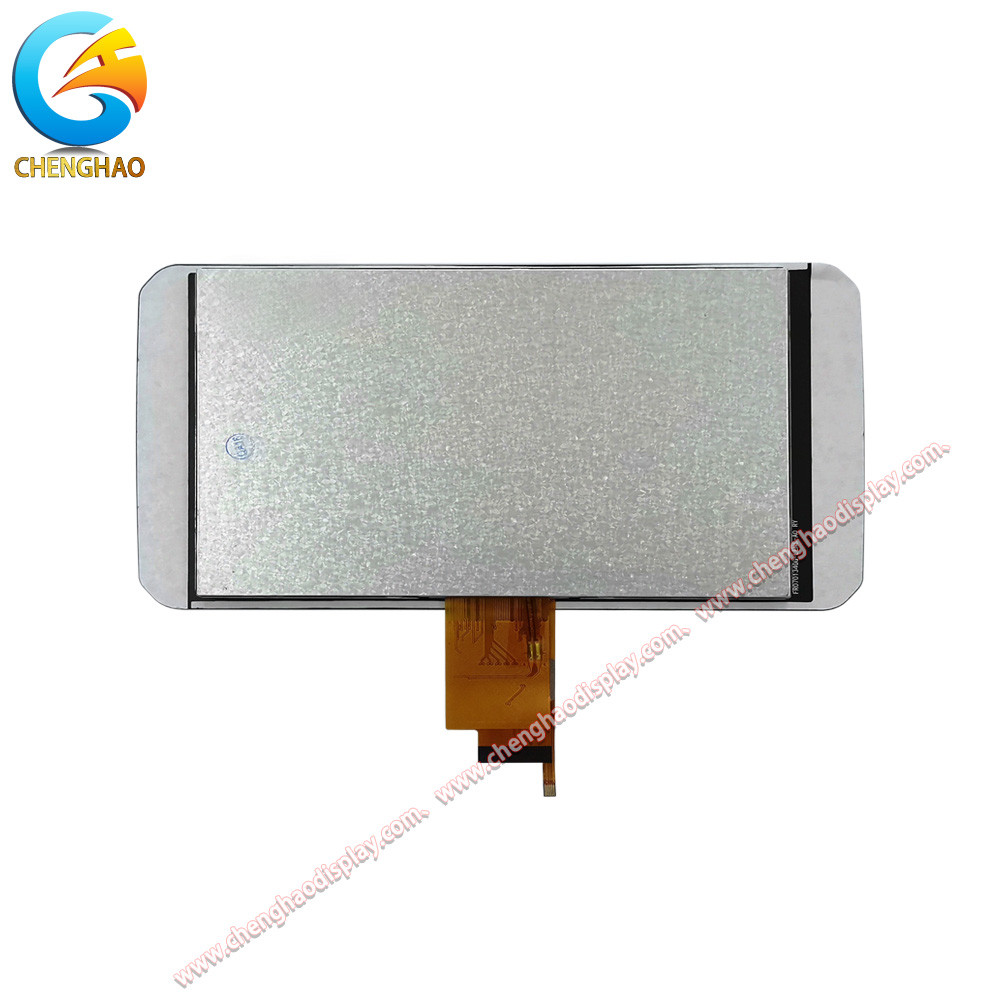

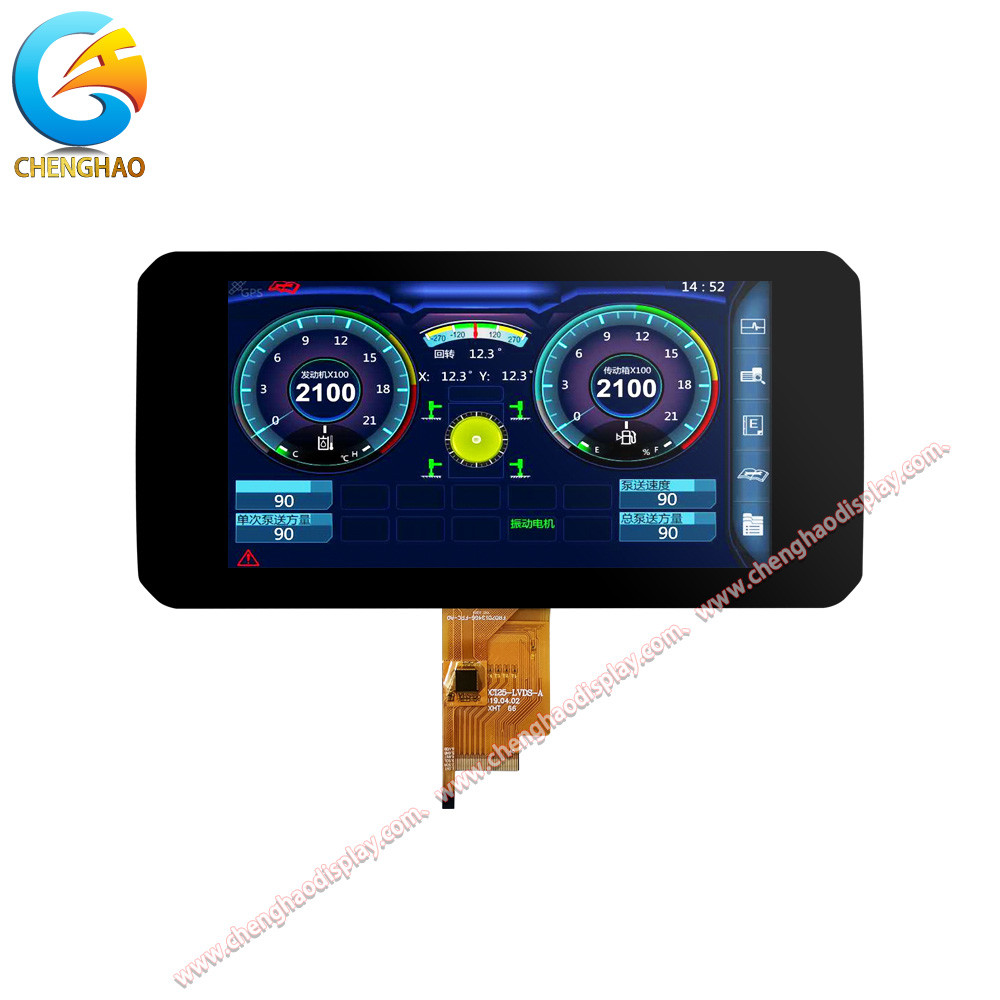

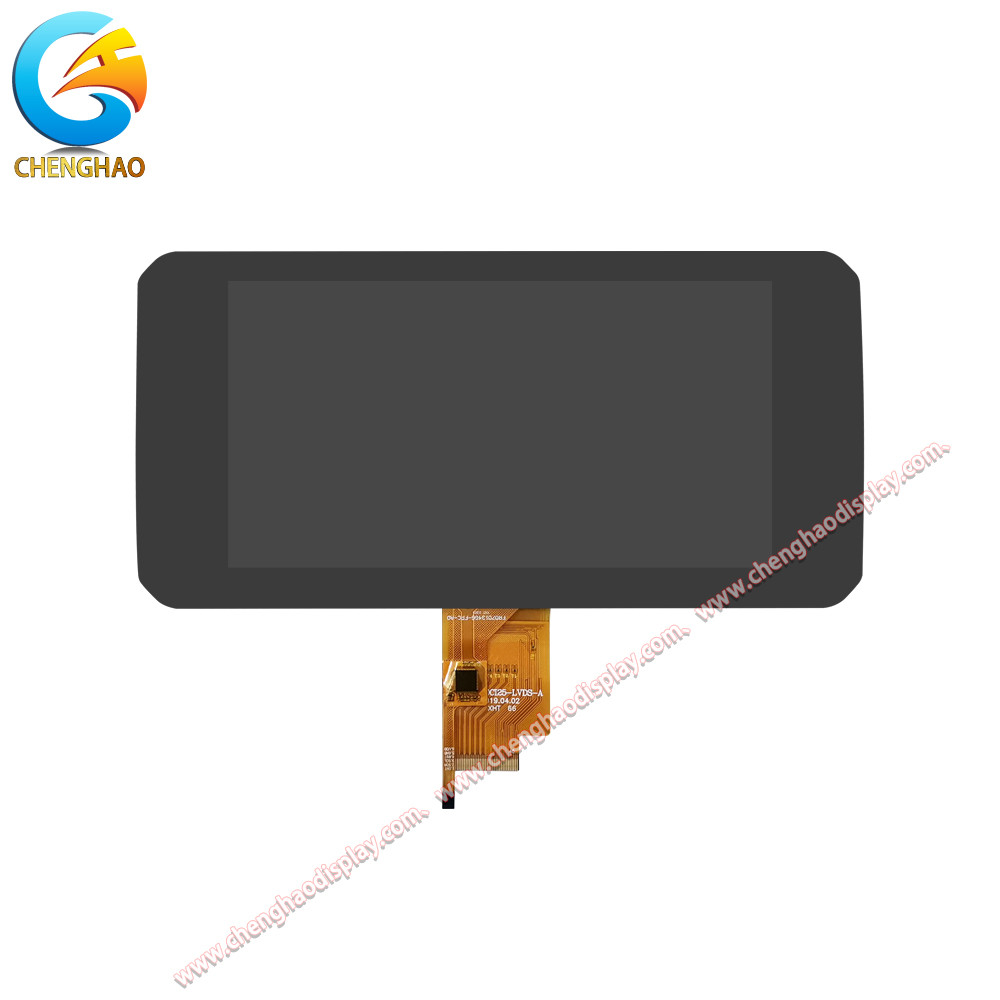

The CH700WS02D-CTG is a high-grade 7-inch capacitive touchscreen module, designed for reliability and superior performance in a wide range of applications. With a resolution of 1024 x 600 pixels, it provides clear, vibrant visuals and a premium user experience.
The module uses IPS display technology to ensure excellent image quality and uniform color reproduction at all viewing angles, boasting a wide viewing angle of 85/85/85/85 degrees.
The CH700WS02D-CTG measures 205.32mm x 106.45mm x 8.23mm, with a viewing area of 154.81mm x 86.52mm. It is compact and versatile, making it suitable for many applications, particularly as a car central control display screen.
One of the key features of this module is its robustness. It supports a wide temperature range, functioning efficiently in environments ranging from -20°C to +70°C. This makes it adaptable to various climatic conditions and ideal for use in automotive systems. The storage temperature extends even further, from -30°C to +80°C.
Another notable feature is its sunlight readability. This makes it suitable for outdoor applications or environments with high ambient light, ensuring the screen remains clear and readable at all times.
The CH700WS02D-CTG has a lifetime of 30,000 hours, offering
long-term reliability and value. It also comes with a 12-month warranty, providing additional peace of mind.
This module is certified by RoHS, CE, and FCC, demonstrating its compliance with international safety and environmental standards.
Finally, we offer OEM and ODM customized services, allowing the CH700WS02D-CTG module to be tailored to your specific requirements. Whether you need a unique solution for your product or want to incorporate your brand elements into the design, we have the capabilities to meet your needs.
In conclusion, the CH700WS02D-CTG is a durable, high-performing 7-inch capacitive touchscreen module that is versatile and customizable, making it the perfect choice for your next project.
Specification of Car Monitor Screen
Module No | CH700WS02D-CTG |
Resolution | 1024*600 Pixels |
Viewing Direction | 80/80/80/80 |
Touch Type | Capacitive Touch Panel |
Luminance | 1000 cd/m2 |
Module Size | 205.32*106.45*8.23 mm |
Viewing Area | 154.81*86.52 mm |
Quick Detail of IPS TFT LCD Display
Product Name: TFT Display Module
Module No: CH700WS02D-CTG
Lcd Type: 7" IPS TFT+CTP
Display Mode: IPS/Transmissive/Normally Black
Number of dots: 1024*3(RHB)*600
Viewing Direction: 80/80/80/80
TP Type: CTP
TP Interface: I2C
Outline Size: 205.32*106.45*8.23 mm
Active Area: 154.2144*85.92 mm
Operating Temp: -20~ +70℃
Storage Temp: -30~ +80℃
BL Current:
VF=8.4~10.2 V,IF=300 mA
Backlight Brightness= 1000 cd/m2
CTP NOTE:
1.Glass LENS+Glass sensor+FPC
Glass LENS: 1.8mm
Glass sensor: 0.55mm
IC:GT911
2.Operation Voltage:2.8V-3.3 V
3.Transmittance:≥85%
4.The cover hardness:6H
Advantages of high brightness lcd module
CH700WS02D-CTG is a full-color LCD module with 1000 cd/m2 High Brightness, supports Sunlight Readable and IPS free viewing angle. The display module can provide customers with RoHS /FCC/CE certification and one-year warranty service. In addition, in order to better meet the individual needs of customers, Chenghao Optoelectronic can provide customers with customized services about CH700WS02D-CTG. We can modify the components or functions in the module according to your requirements, such as the shape and structure of FPC, The brightness of the backlight, TFT interface and touch glass cover, etc.
In addition, Chenghao Optoelectronic has its own technical team, which can provide customers with remote online technical support services. The advantage of the source factory ensures that we can provide customers with sufficiently competitive prices and stable product supply.
