Small 4line SPI IPS TFT LCD Display With 80 Degree Viewing Direction

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH110T001A

Detail Information

Backlight: White LED Brightness: 600 Cd/m2
Colors: 65K Contrast Ratio: 800:1
Display Type: TFT LCD Interface: 4line SPI
Operating Temperature: -20 ~ +70 ℃ Resolution: 96x96 Pixels
Size: 1.5 Inch Storage Temperature: -30 ~ +80 ℃
Viewing Angle: 80/80/80/80
High Light:

Small IPS TFT LCD Display


4line SPI TFT LCD Display


65K Colors IPS LCD Display

Product Description

Small 4line SPI IPS TFT LCD Display With 80 Degree Viewing Direction

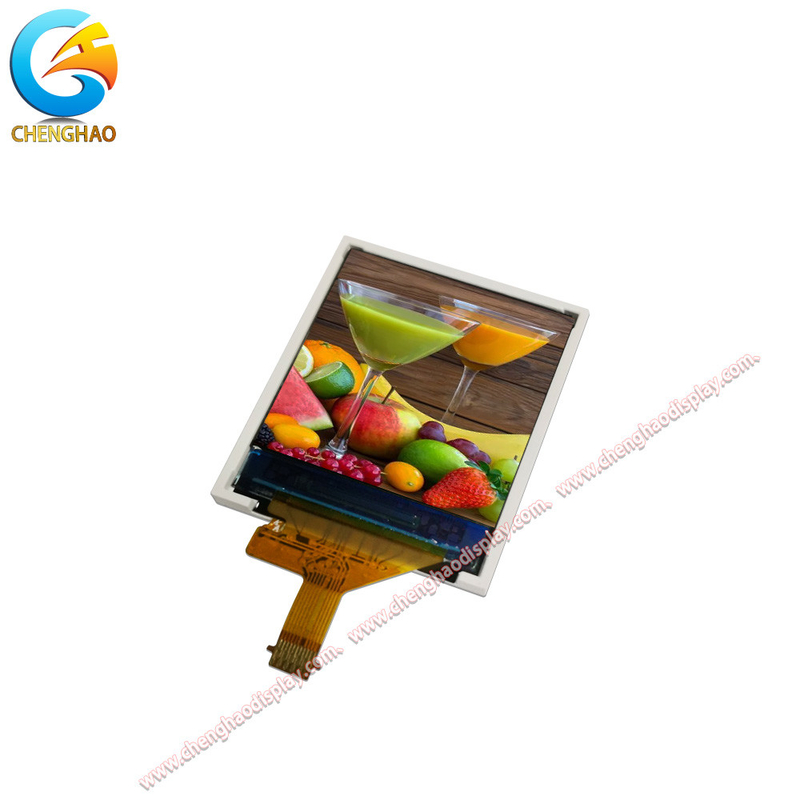

Description of Small TFT DisplaySmall 4line SPI IPS TFT LCD Display With 80 Degree Viewing Direction 0


Chenghao Optoelectronic CH110T001A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses ammonium silicon TFT as a switching device. The display module includes a TFT LCD panel, a backlight component, a driver ICD, and an FPC. The tft LCD panel has a square display area that can display color images of 96x96 pixels. Thanks to the IPS/Transmissive/Normally Black display mode design, this Tiny LCD Display supports free viewing angles. The FPC can be designed according to customer project requirements, including the design of the FPC's appearance and structure.

In addition, this IPS tft LCD display uses a wide temperature resistance design, and its normal operating environment temperature is -20~+70 ℃, which can be stored in an environment of -30~+80 ℃.

Parameter of TFT LCD Module


Module Size CH015B4001A
Lcd Type 1.5" TFT
Dot arrangement
96(RGB)×96 dots
Color filter array
RGB vertical stripe
Display mode
IPS / Transmissive / Normally Black
Viewing Direction
Driver IC
Module size
25.46(W)×29.54(H)×2.3(T) mm
Active area
19.87(W)×19.87(H) mm
Dot pitch
0.207(W)×0.207(H) mm
4line SPI
Operating temperature
-20 ~ +70
Storage temperature
-30 ~ +80
Back Light
White LED
FPC Pin Number 11



Feature of IPS LCD Module
Small 4line SPI IPS TFT LCD Display With 80 Degree Viewing Direction 1



*Supports full perspective

Chenghao Optoelectronic CH110T001A uses IPS display technology to support full view.

*Support for Sunlight Readable

This Tiny LCD screen has an ultra-high brightness backlight component that can be clearly displayed in outdoor environments.

*Supports a wide temperature environment

This Square Display Screen features a wide temperature resistance design and can operate normally in environments ranging from -20 to+70 degrees Celsius.





*Support customization

In order to improve the compatibility of display modules with more devices, Shanghai Optoelectronic CH110T001A can be modified and customized according to customer requirements, including BL, FPC, TFT Interface, screen anti glare, etc



Application field of Mini LCD Display


Chenghao Optoelectronic CH110T001A is a small size LCD display used in forehead temperature guns. The display can be widely used in various instruments and equipment, such as telephones, motion counters, heart rate monitors, metal detectors, children's toys, sweeping robots


Small 4line SPI IPS TFT LCD Display With 80 Degree Viewing Direction 2


About Chengdu Optoelectronic


Chenghao Optoelectronic is an LCD manufacturer from Shenzhen, China. It not only has advanced LCD manufacturing equipment, but also has its own research and development technology team. We can provide customers with various tft lcds, mono lcds, and OLED displays in sizes ranging from 0.91 to 10.1 inches. At the same time, all of our display modules can provide customers with online technical support and corresponding CE and RoHS certificates.



Q: Are you an LCD manufacturer
A: Yes! We have our own LCD factory and welcome you to visit us anytime.

Q: How to ensure the quality of your products?
A: We have an ISO9001 certified LCD manufacturing factory, and our products can provide customers with RoHS and CE certifications that comply with European and American regulations, as well as a 12 month warranty service.

Q: Do you support sample services?
A: Of course! Most of our LCD models have a small amount of sample inventory, and you can contact our online customer service for relevant information.
