10.1 Inch IPS TFT LCD Capacitive Touchscreen For Wide Temp Environment

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH101WX05A-CTB

Detail Information

Backlight: White LED Brightness: 1000cd/m2
Contrast Ratio: 800:1 Dimensions: 204*309*5.53 Mm
Display Size: 135.36*216.57 Mm Display Type: TFT LCD
Interface: MIPI Operating Temperature: -20~+70℃
Resolution: 800(RGB)*1280 Dots Response Time: 20 Ms
Storage Temperature: -30~+80℃ Viewing Angle: Free Viewing Angle
Weight: NA Product Name: Vertical LCD Screen
High Light:

IPS TFT LCD Capacitive Touchscreen


10.1inch TFT LCD Capacitive Touchscreen


MIPI Capacitive Touch Screen Display

Product Description

10.1 Inch IPS TFT LCD Capacitive Touchscreen For Wide Temp Environment


Description of tft display module


CH101WX05A-CTB is a full color touch LCD display module independently designed and produced by Shanghai Optoelectronic. This display module has a 10.1 "vertical display area with a resolution of 800x1280 pixels, which can display color images with 16M colors. To better improve the user experience, this Touch Screen LCD Module uses a Transmission/Normally Black/IPS design, which not only has ultra-high contrast but also supports free viewing angle (80/80/80/80).

In addition, this LCD Display Module can be used in a wide temperature environment (-20~+70 ℃), with a working life of over 30000 hours, and can be stored in an environment of -30~+80 ℃.

Parameter of IPS TFT Display

Part No

Lcd Type 10.1" IPS TFT + CTP
Display Mode Transmissive / IPS / Normally Black
Number of dots 800(RGB)x1280
Display Viewing Direction 80/80/80/80
Operating Temp -20 ~ +70℃
Storage Temp -30 ~ +80℃
Luminance 300 cd/m2
Module Size 204*309*5.53 mm
Active Area 135.36*216.57 mm
TFT Interface MIPI
Touch Panel Type Capacitive Touch Panel
TP Interface I2C
FPC Pin Number 31

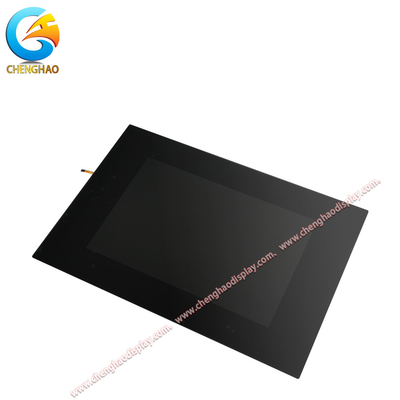

Feature of MIPI LCD Display10.1 Inch IPS TFT LCD Capacitive Touchscreen For Wide Temp Environment 0


*Support for a free perspective
This Color TFT LCD Display adopts IPS/Transmissive/Normally Black display mode and supports all viewing direction.
*Support for screen touch control
This ips display screen surface is equipped with a capacitive touch panel that supports I2C interface and supports Multi-touch.
*Supports a wide temperature environment
This IPS LCD module adopts a wide temperature resistance design and can operate normally in an environment of -20~+70 ℃.
*Support modification and customization
CH101WX05A-CTB is a Custom LCD Module that can be customized according to customer requirements, including FPC and backlight brightness

Drawing of IPS LCD Screen


Chenghao Optoelectronic CH101WX05A-CTB is an Industrial LCD Display designed and customized for elevator equipment. The display can provide CE, FCC, RoHS, and other certifications to customers, and can be widely used in various industry equipment, such as industrial control equipment, medical equipment, home equipment, etc

10.1 Inch IPS TFT LCD Capacitive Touchscreen For Wide Temp Environment 1



Q: Are you an LCD manufacturer
A: Yes! We have multiple tft LCD production lines and welcome customers to visit us at any time.
Q: How to ensure the quality of your products?
A: All of our LCD products can provide customers with CE and RoHS certificates that comply with European and American regulations, as well as a one-year warranty service.
Q: How to handle technical issues encountered after purchasing your product?
A: We have a professional technical team who can provide you with remote online technical support services at any time, and all your technical questions will receive professional answers.
