4.3inch 55pin SPI MCU TFT LCD Display Resistive Touch Screen Monitor

Product Description

4.3inch 55pin SPI MCU TFT LCD Display Resistive Touch Screen Monitor

4.3 inch Resistive Touch Screen Monitor 480x800 55pin SPI MCU RGB Interface

Description of TFT LCD Module

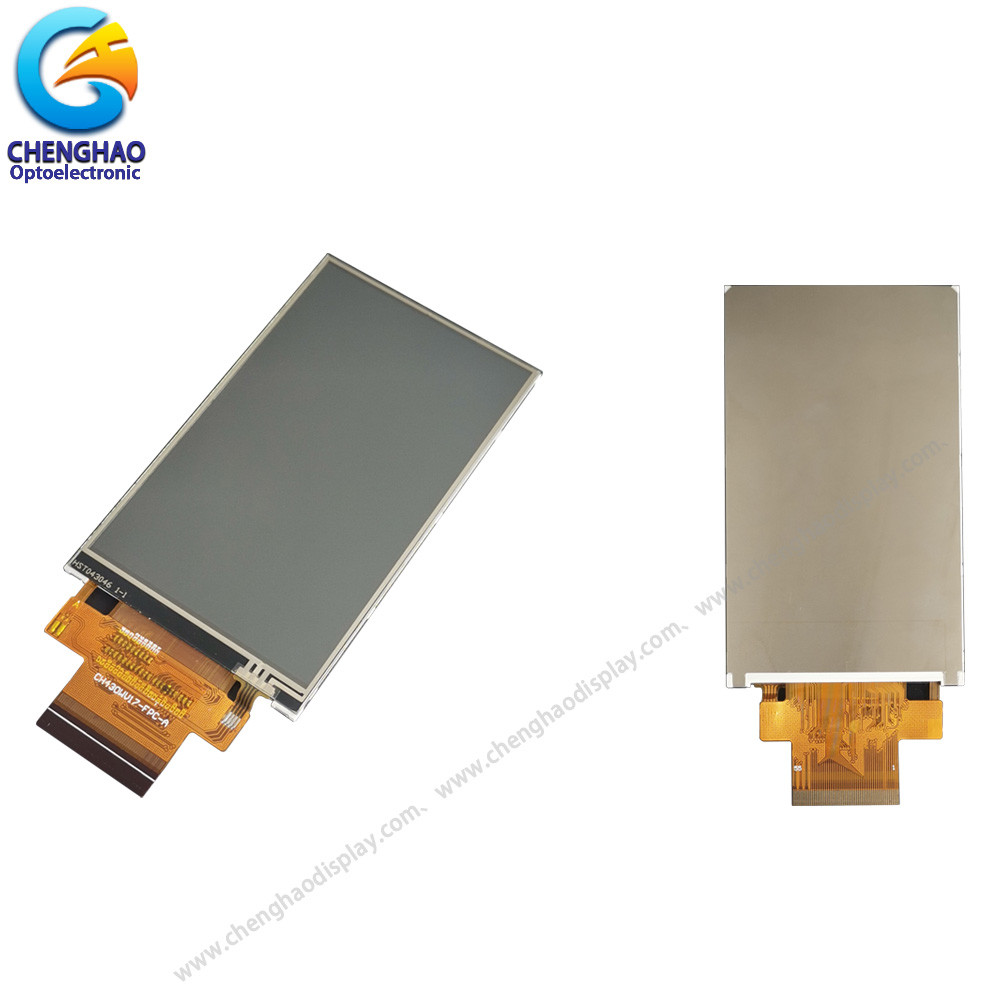

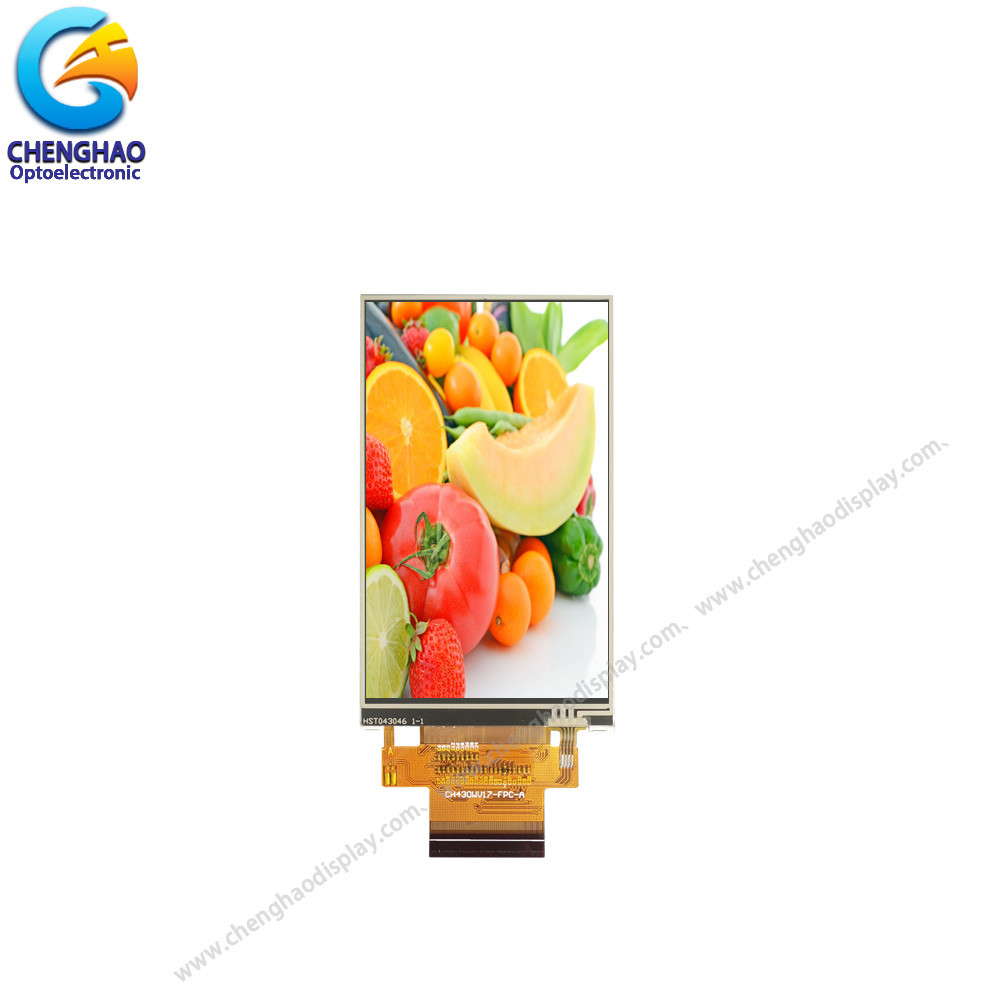

Chenghao Optoelectronic CH430WV17A-T is a 4.3 inch Resistive Touch Screen Lcd Display Module. The display module has a vertical screen display area with a diagonal measurement of 4.3 inches, which can display images of 480*800 pixels. In order to improve customer experience, this color display module adopts IPS display mode design, which has super high contrast and supports free viewing angle.

A resistive touch panel is installed on the surface of the module, which supports communication and interconnection with external devices through the USB interface. As a wide temperature LCD monitor, CH430WV17A-T can operate normally for more than 30000H in the environment of -20~+70 degrees Celsius, and can be stored in the environment of -30~+80 degrees Celsius.

It is worth mentioning that, as a Custom LCD Display, CH430WV17A-CT can be modified and customized according to customer requirements. The customized content includes FPC shape structure, TFT interface customization, backlight brightness modification, etc.

Specification of Small LCD Screen

Quick detail of tft lcd touch screen

TFT Interface:
4-lines_8bit / 3-lines_9bit SPI
8-/ 9-/16-/18-bit 8080 system interface
16-/18-bit RGB interface

LCD type: 4.3’’TFT
Dot arrangement: 480(RGB)×800 dots
Color filter array: RGB vertical stripe

Driver IC: NT35510
Module size: 61.56(W)×104.65(H)×3.25(T) mm
Active area: 56.16(W)×93.6(H) mm
Dot pitch: 0.117(W)×0.117(H) mm

FPC Pin NUmber:55pin

Operating temperature: -20 ~ +70 ℃

Display mode: IPS/ Transmission / Normally Black
Viewing Direction: 80/80/80/80
Storage temperature: -30 ~ +80 ℃

Back Light: 8 White LED in serial
Weight: TBD g

TP Interface: I2C

TP Type: Resistive Touch Panel

Keyword: TFT Resistive Touchscreen

LCM No: CH430WV17A-T

Application of IPS LCD Screen

Chenghao Optoelectronic CH430WV17A-T is a full color lcd touch screen Display designed and customized for installation on 3D printers. It can provide customers with CE, FCC, RoHS certificates and 12-month warranty service. It can be widely used in various display needs Devices with color view, such as industrial equipment, medical equipment, household equipment, etc.
