4 Inch TFT LCD Capacitive Touch Screen 480*800 25pin 2 Lane MIPI DSI

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH400WV22A-CT

Detail Information

Product Name: Touch Screen Module Lcd Type: 4.0 Inch TFT+CTP
Display Mode: Transmissive/IPS/Normally Black Resolution: 480*800
Viewing Direction: 85/85/85/85 FPC Pin Number: 25
Storage Temp: -30 ~ +80℃ Color: 16M
High Light:

MIPI DSI LCD Capacitive Touch Screen


25pin LCD Capacitive Touch Screen


Capacitive MIPI DSI Touch Screen

Product Description

4 Inch TFT LCD Capacitive Touch Screen 480*800 25pin 2 Lane MIPI DSI


4 Inch LCD Capacitive Touch Screen 480*800 25pin 2 Lane MIPI DSI TFT
Description of lcd touch screen
Chenghao Optoelectronic CH400WV22A-CT is a 4.0-inch TFT LCD screen. The display module contains two main modules: a TFT LCD Panel and a Capacitive Touch Panel.
The TFT LCD Panel has a vertical display area with a diagonal length of 3.97 inches, which can display 480 x 800 pixel views. Thanks to the design of the IPS display mode, the TFT LCD Panel has an ultra-high contrast ratio (800:1) and supports free viewing angles (85/85/85/85).
The Capacitive Touch Panel contains a glass panel and a capacitive sensing module. The glass panel can be provided by the customer or designed by our company according to their requirements. The capacitive sensing module uses the I2C interface and supports multiple touch points, responsible for collecting touch signal from the screen, and is an important medium for achieving human-computer interaction.
To cope with the changing environmental temperature, CH400WV22A-CT uses a wide-temperature design. It performs well in environments ranging from -20°C to +70°C, and has a service life of over 30,000 hours.
It is worth mentioning that Chenghao Optoelectronic, as a long-time LCD manufacturer serving global customers, can provide various customized services such as FPC, TFT interface, and backlight luminance to customers. All of our LCD products can provide customers with FCC, RoHS, and CE certificates and a one-year quality guarantee.
Specification of Sunlight Readable LCD Module


Product Name Mini LCD Display Module
Module No CH400WV22A-CT
Lcd Type 4 inch TFT+CTP
Display Mode IPS/Transmissive/Normally Black
Resolution 480*3(RGB)*800 dots
Viewing Direction Free Viewing Angle

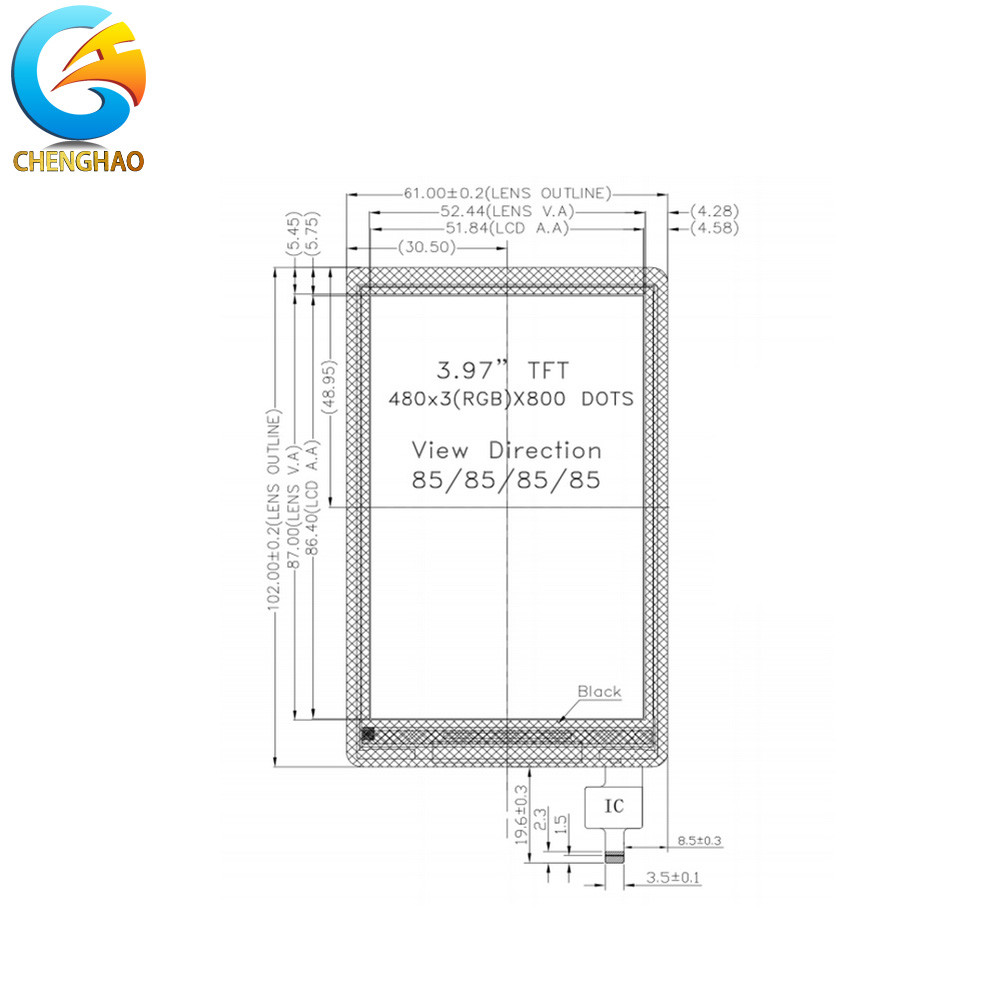

Module Size
61(W)×102(H)×3.74(T) mm
TFT size
57.14(W)×96.85(H)×2.0(T) mm
LENS Viewing area
52.44(W)×87(H) mm
TFT Active area
51.84(W)×86.4(H) mm

4 Inch TFT LCD Capacitive Touch Screen 480*800 25pin 2 Lane MIPI DSI 0Quick Detail of  Capacitive LCD Screen
Keyword Small LCD Display Screens
Operating temperature -20 ~ +70 ℃
Storage temperature -30 ~ +80 ℃
Back Light 8 White LED
Weight TBD g
LCD type 3.97’’TFT + CTP
Dot arrangement 480(RGB)×800 dots
Color filter array: RGB vertical stripe
Display mode: IPS / Transmissive / Normally Black
Viewing Direction: 85/85/85/85
Driver IC TFT: ST7701S
CTP: GT911
CTP type G+F+F mm
LENS surface hardness 6H mm
Module size 61(W)×102(H)×3.74(T) mm
TFT size 57.14(W)×96.85(H)×2.0(T) mm
LENS Viewing area 52.44(W)×87(H) mm
TFT Active area 51.84(W)×86.4(H) mm
Dot pitch 0.108(W)×0.108(H) mm
Interface TFT: 2-lane_MIPI DSI
Feature of Touch Screen LCD Module
* Support human-computer interaction
CH400WV22A-CT is equipped with an extremely sensitive capacitive touch panel, which can collect user touch information and transmit it to an external controller through the I2C interface, thereby realizing human-computer interaction.
* Support free view
This TFT Color Display adopts IPS display technology, which promotes the viewing angle of the display screen to be expanded to 85/85/85/85, which means that users can read information on the screen with a more flexible and free viewing angle.
* Support use in wide temperature environment
This display module adopts a wide temperature resistance design, which can run smoothly in the environment of -20~+70 degrees Celsius.
* Long service life
CH400WV22A-CT has a long service life, and it can run continuously for more than 30000H in an environment that meets the requirements.
* CE, RoHS certificates are available
4 Inch TFT LCD Capacitive Touch Screen 480*800 25pin 2 Lane MIPI DSI 1
Our Service
As an optoelectronic manufacturer based in Shenzhen, Chenghao Optoelectronic offers a wide range of products including TFT-LCDs, OLEDs, and other related components. With a 供货能力 of 300,000 units per month, we are committed to providing high-quality products to our customers at competitive prices.
What sets us apart from other manufacturers is our comprehensive service package. Our team of professional customer service representatives is available 24/7 to answer your questions and provide guidance on product selection and installation. We also offer remote technical support from our engineers, who can help resolve any issues that may arise during the life of your product.
In addition to our high-quality products, our service package also includes a one-year warranty on all products. This warranty covers manufacturing defects in materials and workmanship, and provides customers with peace of mind when it comes to their investment.
One of the key advantages of working with Chenghao Optoelectronic is our close relationship with our customers. Our engineers are directly connected to our customers, and they are able to participate in the design and development of customer displays, helping to ensure that the final product meets the customers' exact needs.
We also offer a variety of services such as OEM and ODM, which allow our customers to create their own unique products based on our designs. This allows our customers to save time and money while still ensuring that their products are of the highest quality.
In summary, our service package is designed to provide our customers with the best possible experience. Our team of professional customer service representatives, remote technical support, and one-year warranty are all designed to protect our customers' investment and ensure a smooth and enjoyable shopping experience.
