24bit RGB 320*240 Small LCD Touch Screen 3.5inch TFT Resistive Touchscreen

Minimum Order Quantity : 100 pcs Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH350QV11C-T

Detail Information

Product Name: Color Lcd Monitor Display Mode: IPS/Normally Black/Transmissive
Number Of Dots: 320*240 Lcm Size: 3.5 Inch
Viewing Direction: 80/80/80/80 FPC Pin Number: 54piin
Operating Temp: -20 ~ +70℃ Storage Temp: -30~ +80℃
High Light:

24bit RGB Small LCD Touch Screen

,

320*240 Small LCD Touch Screen

,

3.5inch TFT Resistive Touchscreen

Product Description

24bit RGB 320*240 Small LCD Touch Screen 3.5inch TFT Resistive Touchscreen



24bit RGB Tft Resistive Touchscreen 3.5 Inch 54Pin 320*240 Horizontal Screen



Specification of ips lcd monitor



Display No CH350QV11C-T
Display Type 3.5”TFT+RTP
Display Mode Transmission/IPS/Normally Black
Number of dots 320(RGB)*240
Viewing Direction 80/80/80/80
Touch Panel  Resistive Touch Panel
Touch Panel Interface USB
FPC Pin Numbers 54pin



Description of tft lcd ips lcd

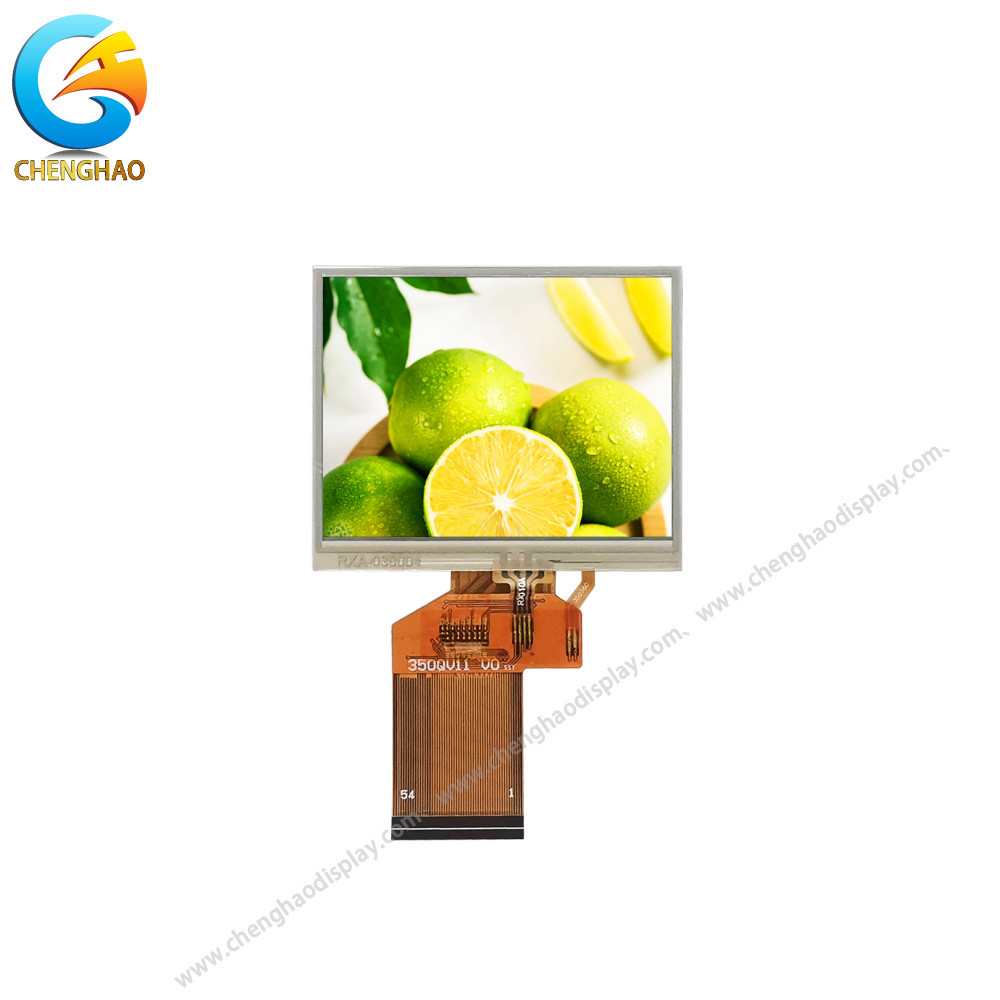

24bit RGB 320*240 Small LCD Touch Screen 3.5inch TFT Resistive Touchscreen 0

CH350QV11C-T is a 3.5 inch touch screen lcd display designed by Chenghao Optoelectronic Company, using 24 bit RGB interface, the screen luminance reaches 300 cd/m2, and supports all viewing angles. There is a 3.5 inch horizontal screen display area of this tft touch screen display, which can display videos or images with 320*240 pixels and 262K colors. Ultra-high contrast ratio (800:1) and wide temperature resistance make this tft lcd display show superior performance.





Quick detail of touchscreen resistive



Keywords: monitor tft lcd

Manufacture:Chenghao Optoelectronic

Lcd No:CH350QV11C-T

Lcd Type:3.5”TFT+RTP

Display Mode:Transmission/IPS/Normally Black

Number of dots: 320(RGB)*240

Viewing Angle: 80/80/80/80

Lcd Size: 76.9(W)×63.9(H)×4.35(T)  mm

Active Area: 70.08(W)×52.56(H) mm



Dot pitch:0.219(W)×0. 219(H) mm

 Interface:24bit RGB interface

Touch Panel: Resistive

Touch Interface: USB

Operating Temperature: -20 ~ +70℃

Storage Temperature: -30 ~ +80℃

Color:262K

Contrast:800:1

FPC Pin:54pin

Life Time:50000

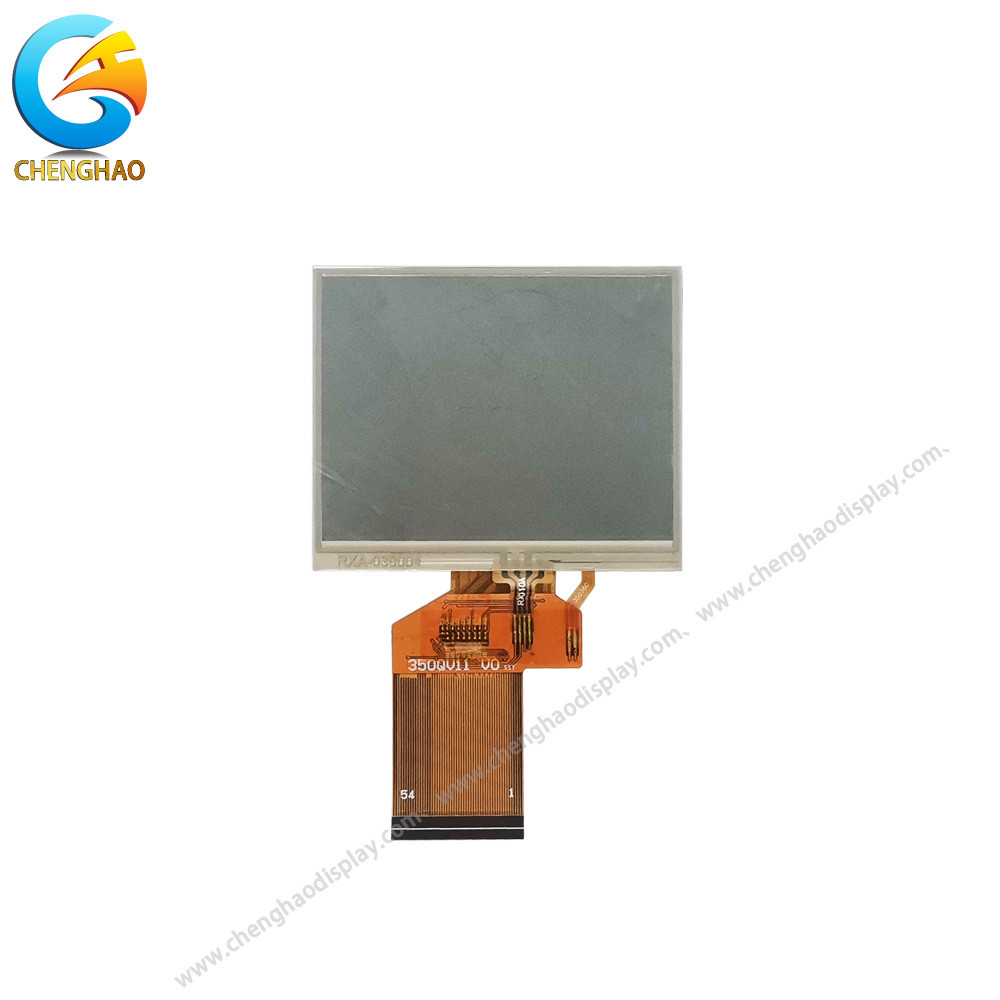

24bit RGB 320*240 Small LCD Touch Screen 3.5inch TFT Resistive Touchscreen 1







Application of multi touch resistive touch screen



CH350QV11C-T is a tft lcd color monitor designed and customized for installation in printer equipment. It can modify and customize FPC, interface and other content according to customer requirements. It can be widely used in industrial control, medical display, artificial intelligence, Internet of Things, etc. industry equipment.



24bit RGB 320*240 Small LCD Touch Screen 3.5inch TFT Resistive Touchscreen 2



Our Service



(1) OEM/ODM service
Chenghao Optoelectronic is an enterprise integrating industry and trade, with its own TFT Lcd manufacturing plant, R&D technical department team, and sales team. We support OEM, ODM services and provide customers with one-stop LCD display solutions. Whether it is specification customization, color customization or other customized services, we will do our best to provide customers with the best service and the highest quality products.
(2) 24 hours online customer service
We provide professional, one-to-one, 24-hour online customer service. No matter when and where customers need help, we will respond and provide solutions as soon as possible. Customers can contact us through our website, telephone, email and other ways, and we will do our best to provide customers with the best service.

(3) Engineer remote online technical support
We provide customers with remote online technical support services of engineers. Customers can connect remotely through the network to directly communicate with our engineers and obtain technical support. Our engineers will provide customers with the most accurate solutions and assist customers in solving technical problems.

(4) One year warranty
Chenghao Optoelectronic provides customers with one-year product warranty service. During the warranty period, customers can enjoy our product quality problem repair or replacement service. We will do our best to ensure the quality and stability of products, and provide customers with the best product protection.

(5) Long-term and stable supply
Chenghao Optoelectronic has long-term and stable supply capacity. We have a supply capacity of 300K pcs/month, which can meet the different needs of customers. We will continue to provide customers with the highest quality products and the most stable supply services, so that customers can use our products with peace of mind.



try again





FAQ



(1) How about your product price?
Reply: Our product prices are relatively favorable and more competitive than other peers. At the same time, we also provide customized services to formulate the most cost-effective solutions for customers according to their needs.

(2) Is your product quality guaranteed?
Reply: The quality of our products has been strictly controlled and inspected, and all products meet international certification standards, including CE, FCC and RoHS, etc. At the same time, we also provide a one-year warranty period to guarantee the quality of the products sold by customers.

(3) How about your logistics service?
Reply: We provide fast and efficient logistics services, and customers can place orders with confidence. Our logistics companies are strictly screened and trained by us to ensure the safe and timely arrival of goods.

(4) What is your payment method?
Reply: Our payment method is to accept T/T payment. After the order is confirmed, the customer can first pay the payment to our company by bank transfer, and then our company arranges the shipment as soon as possible after receiving the payment.

(5) How about your after-sales service?
Reply: We attach great importance to customers' shopping experience and provide customers with professional, fast and efficient after-sales service. After purchasing our products, customers can contact our customer service staff at any time to consult and solve problems.

(6) What is the shipping time of your products?
Reply: Depending on the quantity of the product and the logistics company, the shipping time of our products will also be around 7-15 days. After the order is confirmed, we will promptly feedback the specific shipping time to the customer.

(7) I need an invoice, can you provide it?
Reply: Yes, we are able to provide invoicing services. After the order is confirmed, the customer can provide us with information such as title and amount, and we will issue an invoice for you and send it to you as soon as possible.
