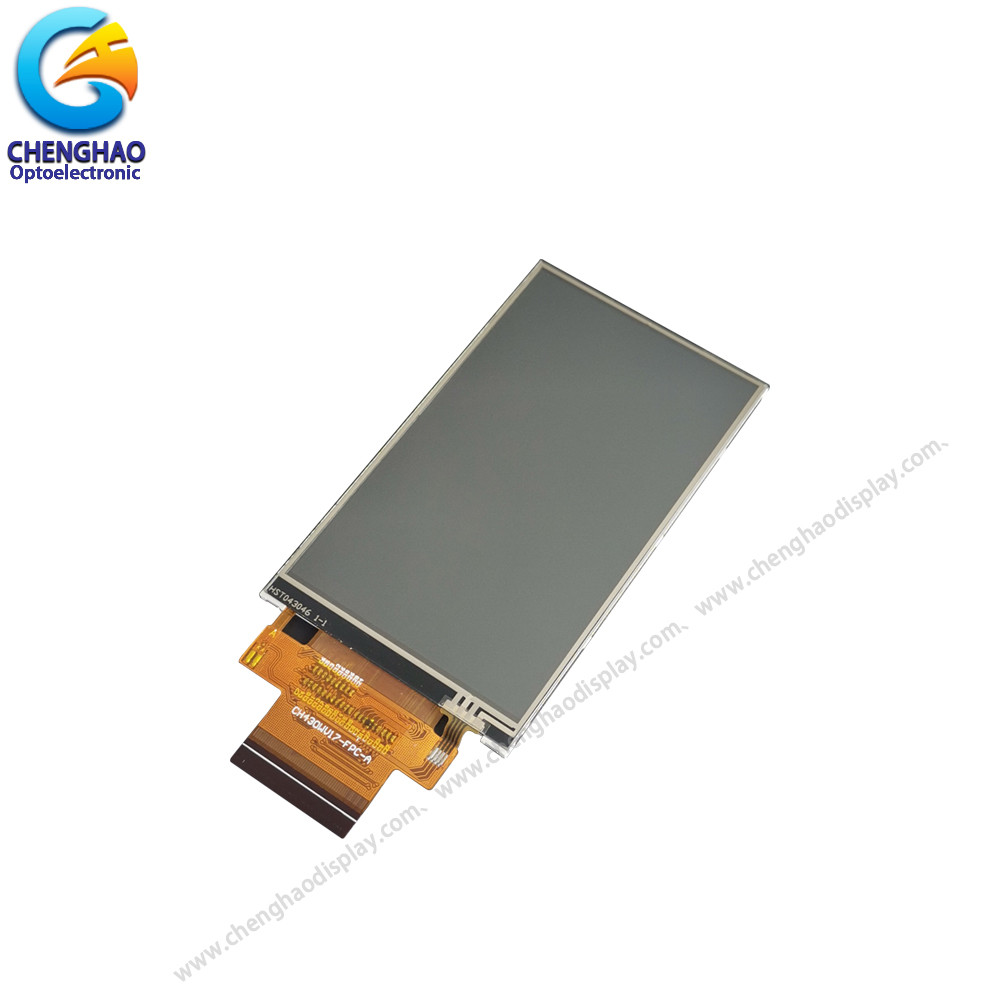

55pin Small LCD Touch Screen Module 4.3 Inch 480x800 Resolution

Product Description

55pin Small LCD Touch Screen Module 4.3 Inch 480x800 Resolution

All Viewing Angle Monitor Lcd 4.3 Inch 480x800 Resolution 55pin

Quick details of 4.3 inch tft lcd module


Manufacturer: Chenghao Lcd
Module Name: 4.3 inch tft lcd display
LCD type: 4.3”TFT
Resolution: 480*800 dots
Viewing Direction: 80/80/80/80 (all viewing angles)
Driver IC TFT: NT35510
Interface: SPI, MCU, RGB (support Multi-interface)
Touch Panel Type: Resistive Touch Panel
Luminance: 350 cd/m2 High Brightness
Back Light: 8 White LEDs in serial
Life Time: 20000 hours
Application fields: industrial equipment, medical equipment, office equipment, laboratory equipment, etc.
Certificate: RoHS, CE
MOQ: 1 pcs
Delivery period: 7-15 working days
Payment method: T/T

Specification of 800x480 display

Module No.: CH430WV17A-T
Display mode: IPS / Transmissive / Normally Black
Module size: 61.56(W)×104.65(H)×3.25(T) mm
Active area: 56.16(W)×93.6(H)mm
FPC Pin NUmber: 55pin
Operating temperature: -20 ~ +70 ℃ (wide temperature)
Storage temperature: -30 ~ +80 ℃
Touch Panel Interface: usb
Backlight Color: White
Application Case: Children's Accompanying Reader

Description of lcd touch display

The CH430WV17A-T is a 4.3 inch TFT LCD display module manufactured by Chenghao Lcd, which is an industry and trade integration enterprise located in Shenzhen, China. With a resolution of 480*800 dots and all viewing angles of 80/80/80/80, this display module can provide clear and stable images from various directions. It adopt IPS display mode, support all viewing angle, and the driver IC TFT is NT35510. With a compact module size of 61.56(W)×104.65(H)×3.25(T) mm and an active area of 56.16(W)×93.6(H)mm, it is suitable for various applications such as industrial equipment, medical equipment, office equipment, laboratory equipment, etc. The CH430WV17A-T is also equipped with a resistive touch panel interface (usb) and 8 white LEDs in serial for backlight. The backlight color is white, and the life time of backlight is 20000 hours.

Feature of lcd touch screen

• All viewing angles of 80/80/80/80
• Wide Temp of -20~ +70℃
• Suitable for various applications
• Resistive touch panel interface (usb)
• Support Customized Service
• Backlight with a life time of 20000 hours
• RoHS and CE certified

Application of custom lcd display module
The CH430WV17A-T can be used in various fields, including:
Industrial equipment
Medical equipment
Office equipment
Laboratory equipment
It can also be used in specific application cases such as Children's Accompanying Reader.

Our advantages
High-quality products with RoHS and CE certification
Fast delivery within 7-15 working days
Flexible payment method through T/T
Excellent packaging for product safety
Responsive customer service

FAQ
Q: What is the MOQ of CH430WV17A-T?
A: The MOQ is 1 pcs.
Q: What is the payment method?
A: The payment method is T/T.

Q: What is the delivery period?
A: The delivery period is 7-15 working days.

Q: What is the backlight life time?
A: The backlight life time is 20000 hours.

Q: What is the viewing direction of CH430WV17A-T?
A: The viewing direction is 80/80/80/80 (all viewing angles).
