1080p Full HD Tft Display 1080x1920 Resolution 16.7M Color With Mipi Interface

Product Description

1080p Full HD Tft Display 1080*3(RGB*1920 Resolution 16.7M Color with MIPI interface

1. Specification

2. Description

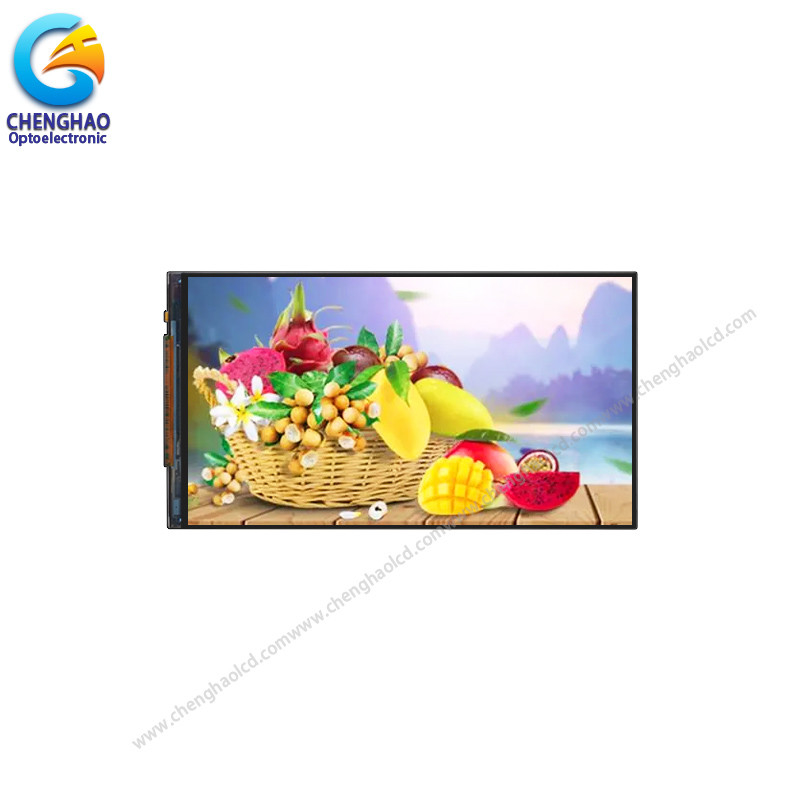

CHENGHAO Display CH550FH02A is a full high-definition color LCD display, using MIPI interface, the resolution is 1080*3(RGB)*1920, and it can display 16M colors. This tft color display adopts LTPS / Transmissive / Normally Black display mode, and the best viewing angle reaches 85/85/85/85. In addition, There is a backlight of this full HD color LCD screen that can produce 600 cd/m2 luminance, which is readable in sunlight, and can be modified and customized according to customer wishes.
CH550FH02A is a high-brightness LCD screen used in smart home devices, with an average service life of more than 20,000H. It can provide buyers with CE, RoHS certificates and more than one year of warranty service.

3. Drawings

Notes:
(1) Display Type : 5.5" TFT
(2) Viewing Direction :  85/85/85/85

(3) Lcd Drive IC : ###
(4) Operating Temp : -20~70 ℃
(5) Storage Temp : -30~80 ℃
(6) Unmarker Tolerance: ±0.20
(7) Protection : ROHS

4. Quick Detail

Module Name: 1080p Full HD Tft Display 1080*3(RGB*1920 Resolution 16.7M Color

Module No: CH550FH02A

Module Type: 5.5 inch Ltps TFT

Display Type: LTPS/ Transmissive

Viewing Direction: Wide Viewing

Interface: MIPI ( Optional)

Backlight Type:28 pcs White Led

Screen luminance: 600 nits ( Optional)

Module Size: 70.14*127.6*1.6 mm

Active Area: 608.04:*120.96 mm

Operating Temperature:-20~+70 ℃

Storage Temperature:-30~ +80 ℃

5. Products Quality Assurance

1. We have a professional technical team with rich TFT-LCD work experience.
2.We have many years of experience in global customer cooperation, and we have the ability to solve the needs of most customers' personalized customized products.
3. We have advanced tft-lcd production equipment and a first-class production team, which can provide customers with high-quality products.
4. We are equipped with a professional after-sales service team, which can provide customers with a full range of after-sales services.
5. We provide a full range of products and services, including display screens and touch screens,
Technical support and customization.
6. We manage strictly in accordance with the ISO9001 management system, and our products conform to Rosh
Certification.

6. FAQ

1. who are we?
We are based in Guangdong, China, start from 2015,sell to Domestic Market(33.00%),North America(20.00%),Western
Europe(19.00%),Eastern Europe(10.00%),Southeast Asia(7.00%),Northern Europe(5.00%),Eastern Asia(3.00%),South
Asia(2.00%),Oceania(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Sensor Module,Display Module,Power Module,Wireless Module,PCB.

4. why should you buy from us not from other suppliers?
Established in 2015 shenzhen private high quantity Electronic modules, processors and microcontrollers, embedded peripheral chips, logic chips, memory, power chips, drivers, sensors, crystals and so on .Work area 1001-2000 square meters more than 100 peopls
