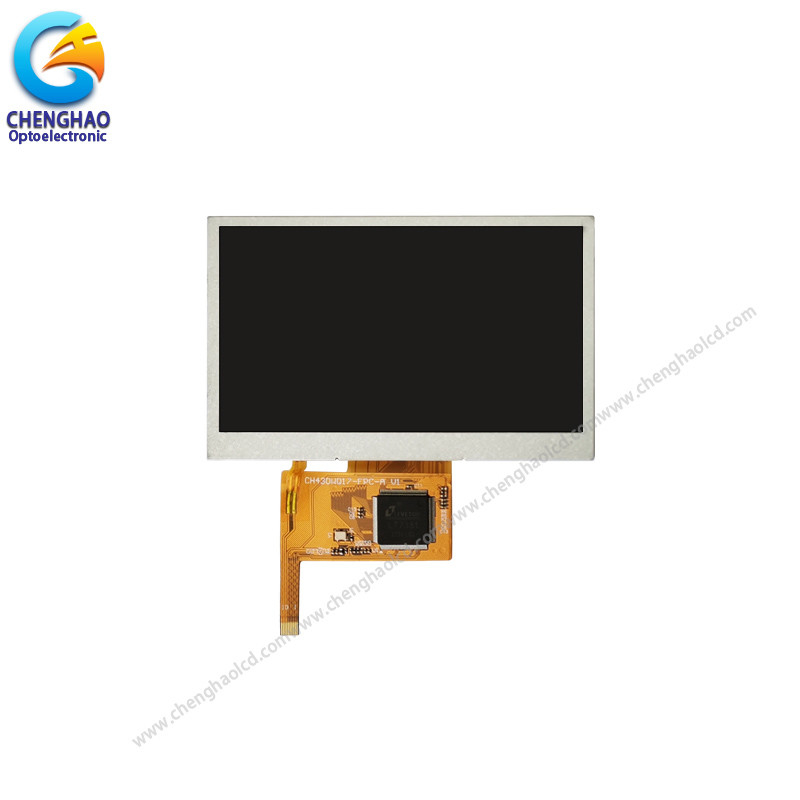

Sunlight Readable TFT LCD Display 4.3 Inch 480x272 10 Pin SPI Interface

Product Description

Sunlight Readable TFT LCD Display 4.3 inch 480x272 10 pin SPI interfaceSunlight Readable TFT LCD Display 4.3 inch 480x272 10 pin SPI interface

1. Specification

2. Description


Chenghao Display CH430WQ17A is a Hight Brightness color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. There is a color display area of this 4.3inch with a diagonal length of 4.3 inches tft lcd module can display video with a resolution of 480(RGB)×272 pixels and 16M colors. The 4.3inch tft lcd display adopts TN/ Transmissive/ Normally White Display mode, the best viewing angle is 12o’clock, supports SPI interface, and can run normally at 20000H in the environment of -20~+70.
CH430WQ17A is a Sunlight Readable Lcd Screen Module, which has completed CE and RoHS certification, and can provide buyers with more than one year of warranty service. In addition, CH430WQ17A can be modified according to customer wishes, and supports modification of components or functions including FPC, backlight brightness, interface type, touch function, etc. Of course, we can also provide professional customized services according to your project requirements. For details, please consult our online customer service.

3. Quick Detail


Module Name: Sunlight Readable TFT LCD Display 4.3 inch 480x272 10 pin SPI interface
LCD type: 4.3’’TFT
Dot arrangement: 480(RGB)×272 dots
Color filter array: RGB vertical stripe
Display mode: TN / Transmissive / Normally White
Viewing Direction: 12 o’clock
Gray Scale Inversion Direction: 6 o’clock
Module size: 105.5(W)×67.2(H)×3.0(T) mm
Active area: 95.04(W)×53.856(H) mm
Dot pitch: 0.198 (W)×0.198 (H) mm
Driver IC: LT7381
Interface: SPI
Operating temperature: -20 ~ +70 ℃
Storage temperature: -30 ~ +80 ℃
Back Light:16 White LED
Weight: TBD g

4. Application



5. Our Service


1.We provide one-year product after-sales guarantee service to all customers who purchase our products.
2. For any technical problems encountered by customers in the process of testing or using our products, our technical team will provide customers with remote online technical support services at any time.
3. We are a factory-type supplier with ISO certification. Our products on sale have undergone strict quality inspection and testing before shipment, and have also passed CE/ROHS certification.
4. We have a professional after-sales service team, which can provide strong guarantee and logistical technical services for your orders.

5. Replacement within 30 days after the shipment of products from us due to products' problems.

6. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.

7. All goods will be inspected and tested before shipment.
