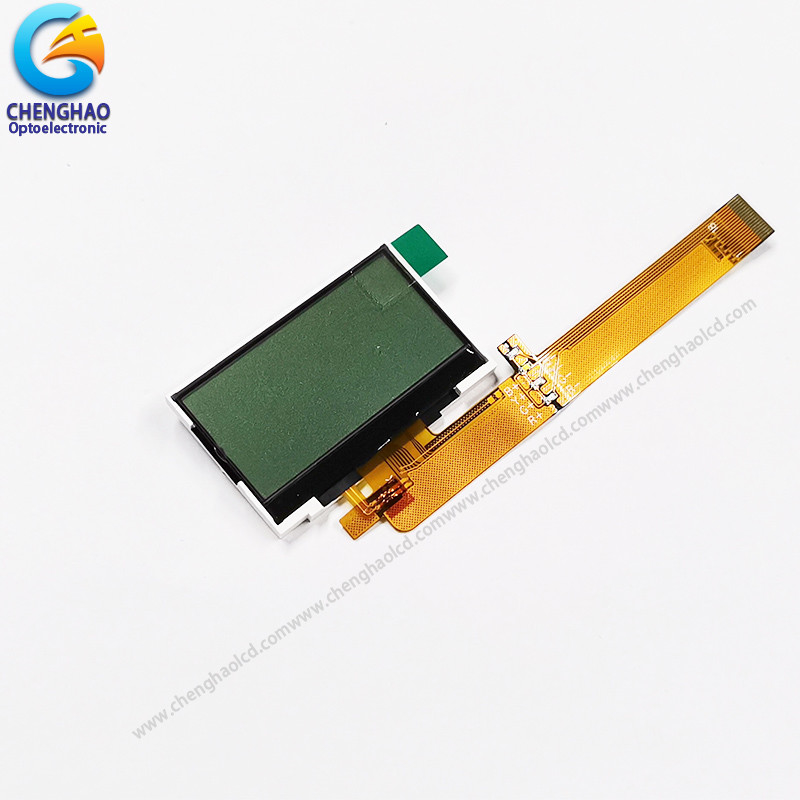

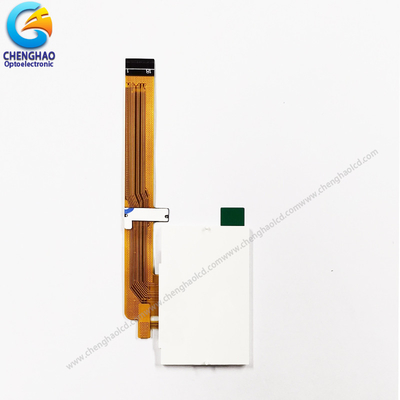

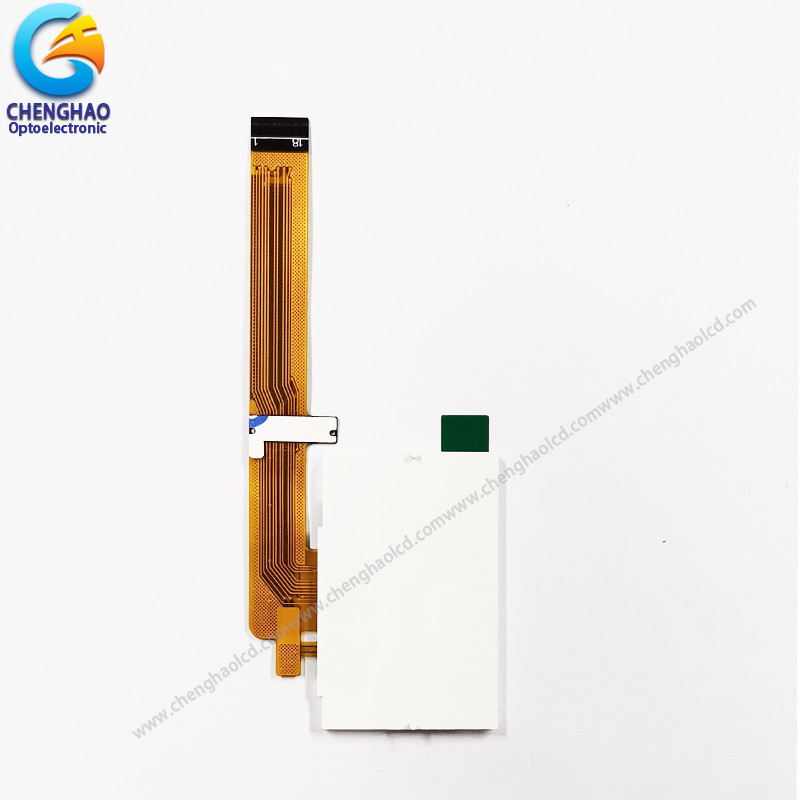

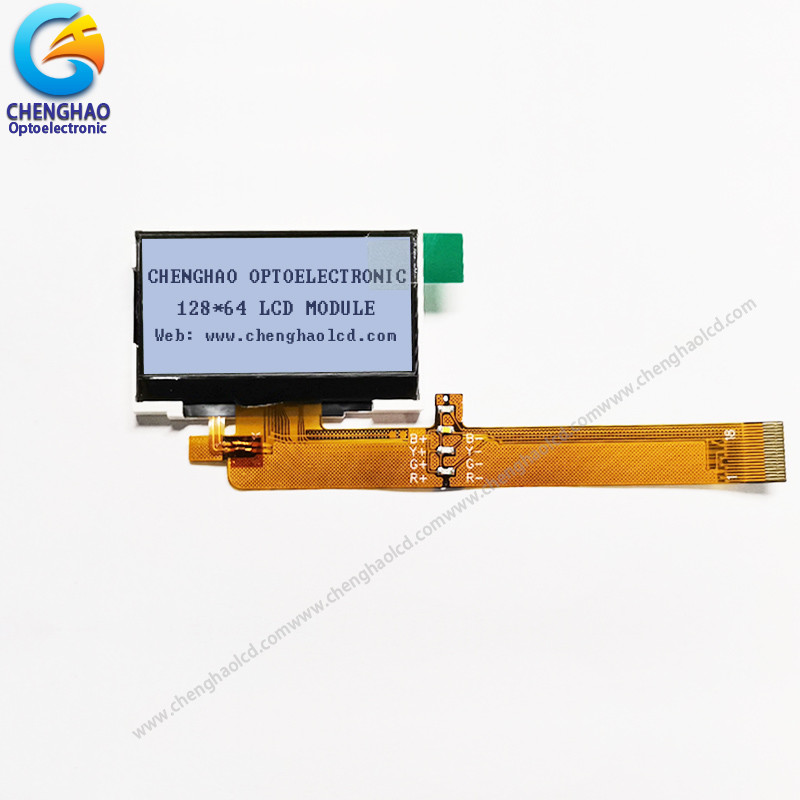

12864 Monochrome LCD Module SPI MCU FSTN COG 128*64 Dot Matrix LCD module

Minimum Order Quantity : 1 pcs Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH12864320

Detail Information

Product Name: 128*64 Dot Matrix Graphic LCD Display Modle: FSTN/POSITIVE/TRANSFLECTIVE
Driving Condition: 1/65Duty,1/9Bias,VDD=3.3V,VDD1=1.8V;VLCD=9.2V Viewing Direction: 6:00 O'clock
Operating Temp: -20~+70°C Storage Temp: -30~+80°C
LCD Connector: FPC IC: ST7567
High Light:

12864 monochrome LCD module

,

SPI MCU monochrome lcd module

,

COG Dot Matrix LCD module

Product Description

12864 Monochrome LCD Display SPI MCU FSTN COG 128*64 Dot Matrix Graphic LCD



1. Specification



ITEM STANDARD VALUES STANDARD VALUES
Supplier Name Chenghao Optoelectronic --
Lcd No CH12864320 --
Display Modle FSTN/POSITIVE/TRANSFLECTIVE --
Viewing Direction 6:00  o'clock
Operating Temp -20~+70 °C
Backlight WHITE LED*2,Vf=3.0V,If=30mA --
LCD Connector FPC --
FPC Number 18 --



2.Quick detail



Product Name: 128*64 lcd Graphic Display Module

Supplier Type: Factory

Method of sales:Wholesale Custom

Display Modle:FSTN/POSITIVE/TRANSFLECTIVE

Driving Condition:1/65Duty,1/9Bias,VDD=3.3V,VDD1=1.8V;VLCD=9.2V

Viewing Direction:6:00 o'clock

Operating Temp:-20~+70°C

Storage Temp:-30~+80°C

.LCD Connector:FPC

FPC Number:18

Interface:SPI ,MCU/ Custom

Driver IC:ST7567

Backlight:WHITE LED*2,Vf=3.0V,If=30mA

Unspecified tolerance is ±0.2mm



3.Support for custom content:



(1)LCD screen size, material
(2)The type and color of the displayed icon
(3)Backlight brightness, color
(4)Shape structure of FPC
(5)Interface definition
         .....





4. Drawings



12864 Monochrome LCD Module SPI MCU FSTN COG 128*64 Dot Matrix LCD module 0



12864 Monochrome LCD Module SPI MCU FSTN COG 128*64 Dot Matrix LCD module 1







5. About us
1.We are professional LCD module manufacture in China with precise and advanced equipments.
2.High quality Control with CE,ROHS and so on approved.
3.More than 10 years of industry experience and involved main markets all over the world
4.Dedicated and professional sales team will offer you 24 hours online and immediate service
5.OEM and ODM support,12 months warranty for all of our products





6. Pre-sales service
1.Our team design and make solutions based on different requirements from different customers.
2.We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.
After-sales services.
1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.
2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.
3. We have professional engineer customer to keep fastly reply.
