Detail Information |
|||
| Product Name: | 7 Digit Segment Lcd Screen | Display Modle: | VA/NEGATIVE/TRANSMISSIVE |
|---|---|---|---|
| Driving Condition: | 1/4Duty,1/3Bias;VOP=3.3V | Viewing Direction: | 6:00 O'clock |
| Operating Temp: | -10~+60°C | Storage Temp: | -20~+70°C |
| LCD Connector: | FPC | IC: | --- |
| High Light: | 7 Digit Segment LCD Display,FPC Monochrome LCD Display,VA Negative Monochrome LCD Display |
||
Product Description

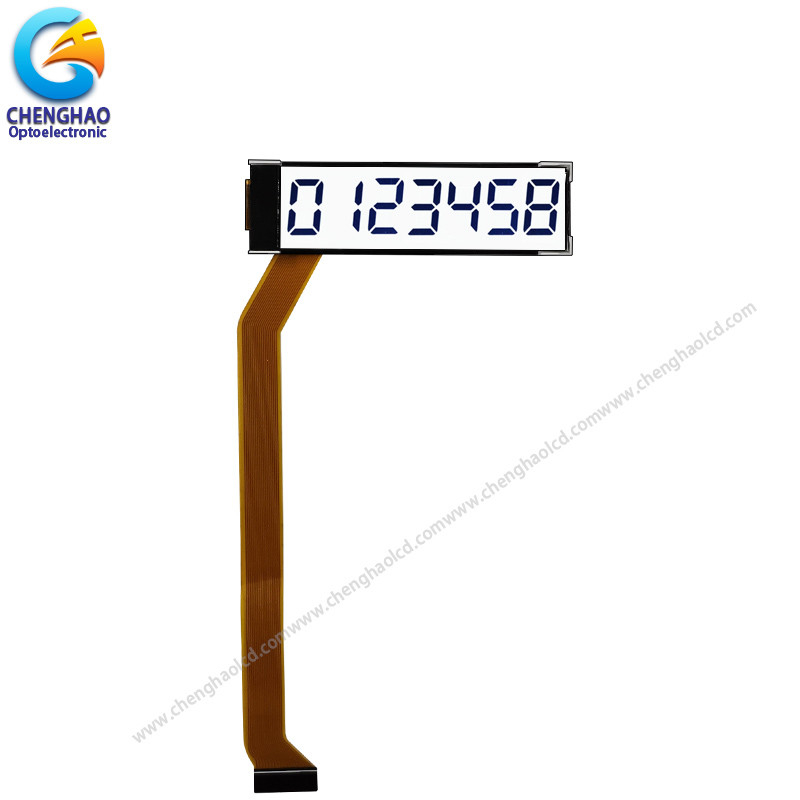

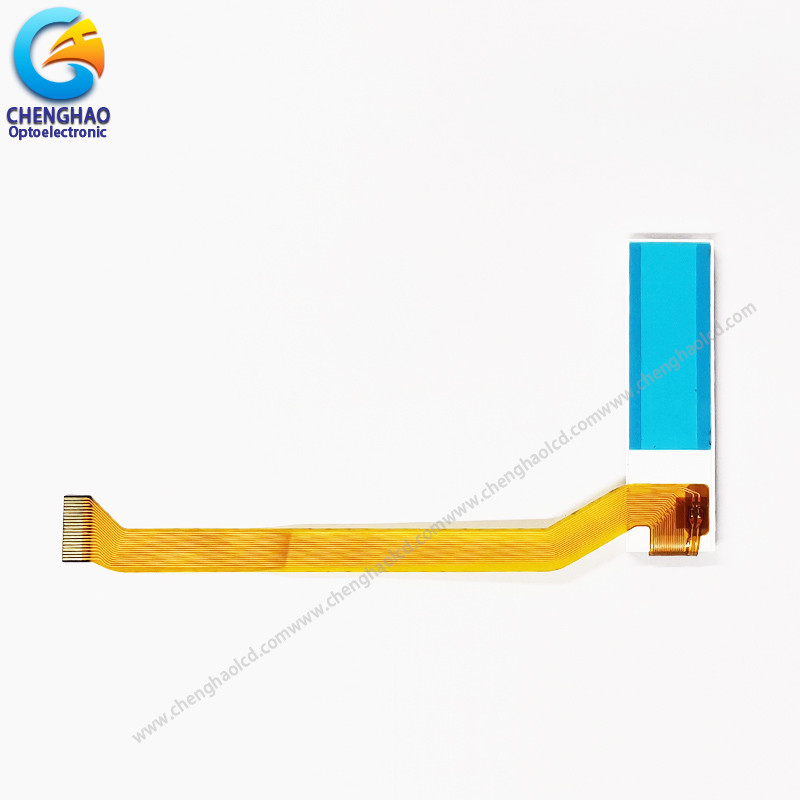

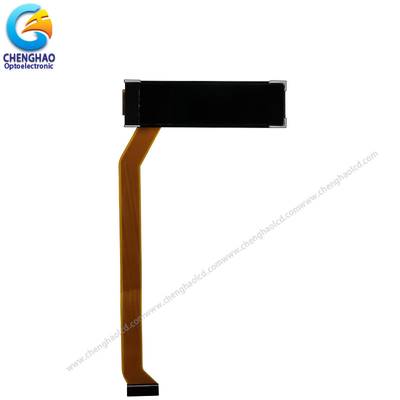

Factory Custom 7 Digit Segment Lcd Screen Va Negative Monochrome LCD Display
1. Specification
| ITEM | STANDARD VALUES | STANDARD VALUES |
| Supplier Name | Chenghao Optoelectronic | -- |
| Lcd No | CH000934 | -- |
| Display Modle | VA/NEGATIVE/TRANSMISSIVE | -- |
| Viewing Direction | 6:00 o'clock | -- |
| Operating Temp | -10~+60°C | °C |
| Storage Temp | -20~+70°C | °C |
| LCD Connector | FPC | -- |
| FPC Number | 20 | pin |
2.Quick detail
Product Name: 7 Digit Segment Lcd Screen
Supplier Type: Factory
Method of sales:Wholesale Custom
Display Modle:VA/NEGATIVE/TRANSMISSIVE
Driving Condition:1/4Duty,1/3Bias;VOP=3.3V
Viewing Direction:6:00 o'clock
Operating Temp:-10~+60°C
Storage Temp: -20~+70°C
LCD Connector: FPC
IC:***
Backlight: WHITE LED*1,VF=3.0V±0.2V,IF=15mA
Unspecified tolerance is ±0.30mm
ROHS Request
CONTROL DIMENSION: *
3.Support for custom content:
(1)LCD screen size, material
(2)The type and color of the displayed icon
(3)Backlight brightness, color
(4)Shape structure of FPC
(5)Interface definition
.....
We accept various forms of customization of Mono lcd, you can get more information by contacting our customer service
4. Drawings
5. Our Service
(1) Fully / Semi-automated production line ensure the best quality.
(2) Custom Design,can specially meet your needs.
(3) Fast Delivery ,about 20 days for lead time
(4) Samples available on request; Small MOQ orders can be negotiated.
(5) Provide best pre-sale and after-sale service to you.
6. FAQ
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
