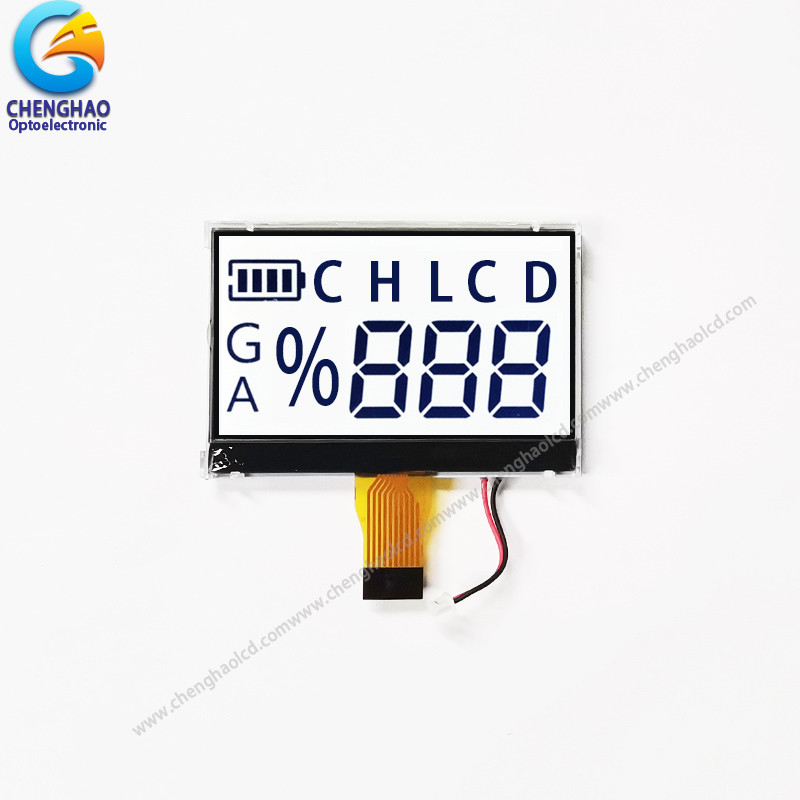

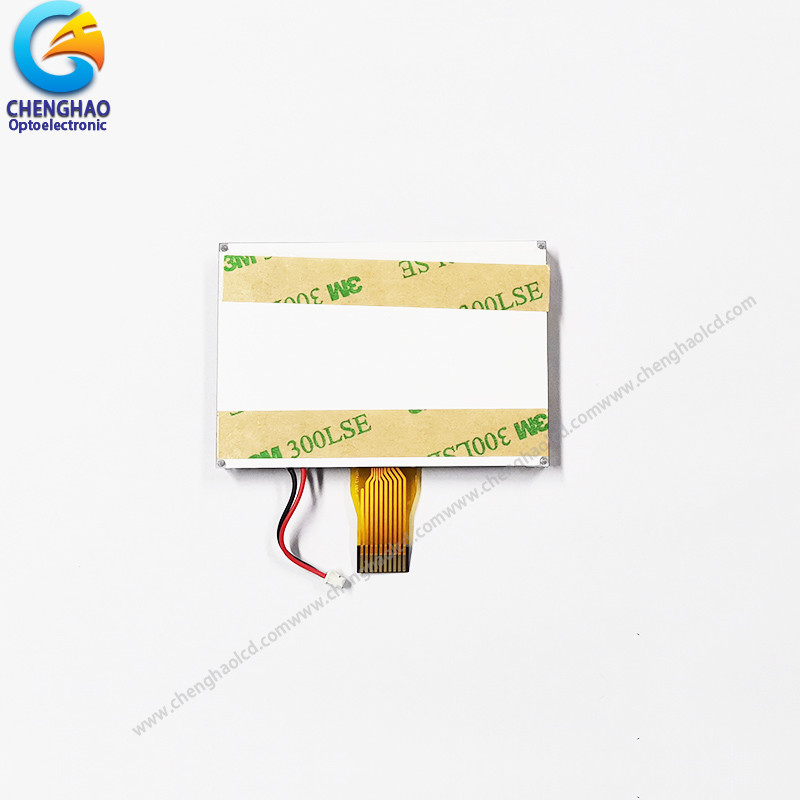

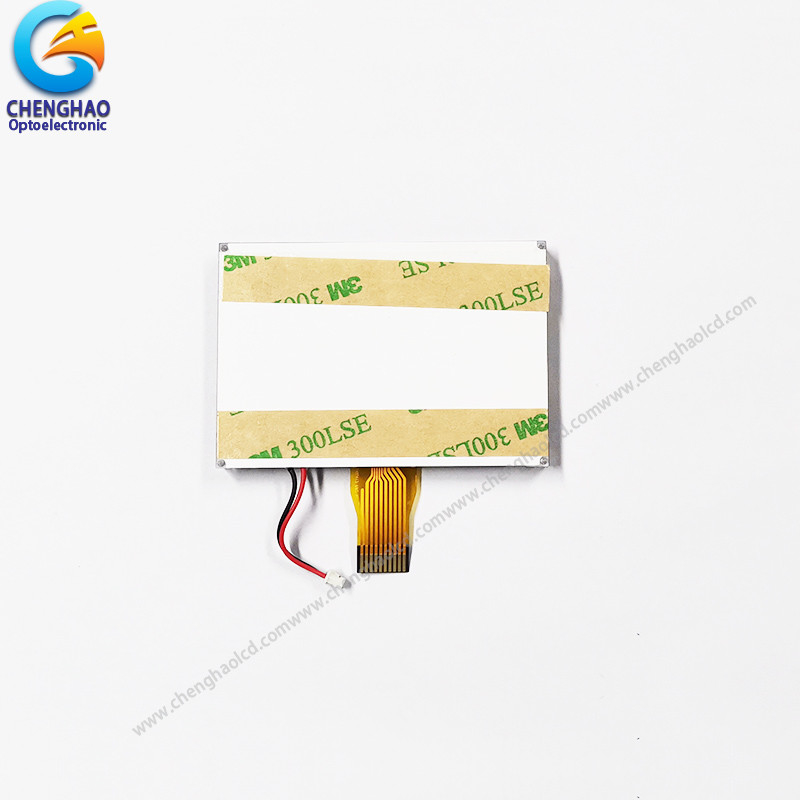

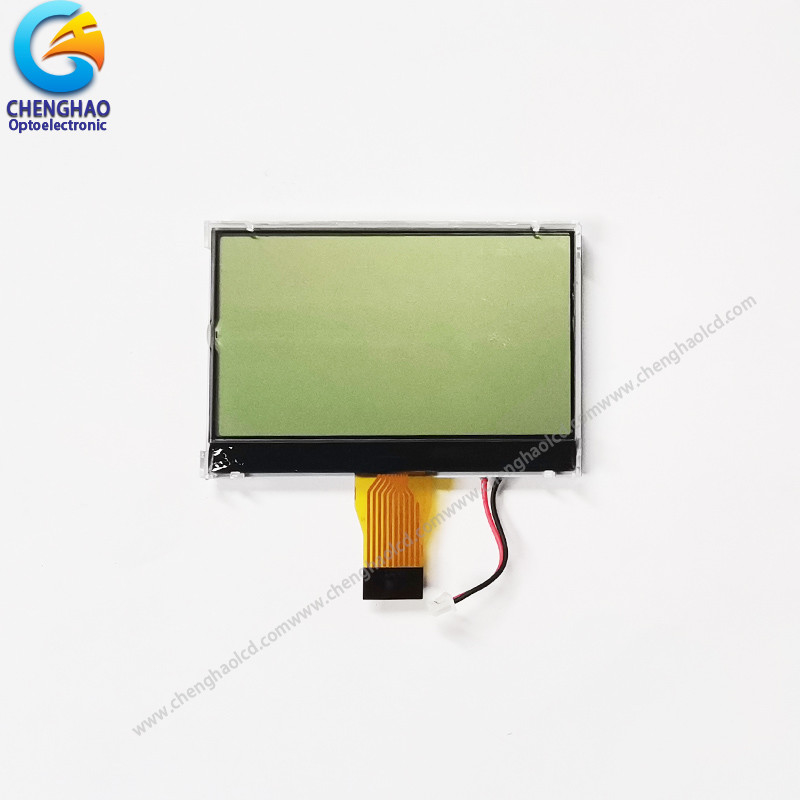

7 Segment Monochrome LCD Display Custom White Black Color HTN Positive Transflective

Minimum Order Quantity : 1 pcs Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH000912-HSFW

Detail Information

Product Name: 7Segment Monochrome LCD Display Display Modle: HTN/POSITIVE/TRANSFLECTIVE
Driving Condition: 1/2DUTY,1/2BIAS ;VDD=5.0V,VLCD=5.0V Viewing Direction: 3:00 O'clock
Operating Temp: -20~+70°C Storage Temp: -30~+80°C
LCD Connector: COG+FPC IC: IST3042
High Light:

7 Segment Monochrome LCD Display


3 o'clock Monochrome LCD Display


COG FPC monochrome lcd panel

Product Description

Custom White Black Color Lcon Lcd HTN Positive 7Segment Monochrome LCD Display


1. Specification


Supplier Name Chenghao Optoelectronic --
Lcd No CH000912-HSFW --
Viewing Direction 3:00 --
Operating Temp -20~+70 °C
Storage Temp -30~+80 °C
LCD Connector COG+FPC --


2.Quick detail


Product Name:  7Segment Monochrome LCD Display

Supplier Type: Factory

Method of sales:Wholesale Custom


Driving Condition:1/2DUTY,1/2BIAS ;VDD=5.0V,VLCD=5.0V

Viewing Direction:3:00 o'clock

Operating Temp:-20~+70°C

Storage Temp:-30~+80°C

LCD Connector:COG+FPC


Module Size:69.9*48*6.75 mm

Active Area:65*37 mm

Backlight:WHITE LED*5;Vf=3.0V;If=75mA

Unspecified tolerance is ±0.20mm

ROHS Request






3.Support for custom content:

(1)LCD screen size, material
(2)The type and color of the displayed icon
(3)Backlight brightness, color
(4)Shape structure of FPC
(5)Interface definition



4. Drawings



7 Segment Monochrome LCD Display Custom White Black Color HTN Positive Transflective 0



7 Segment Monochrome LCD Display Custom White Black Color HTN Positive Transflective 1



5. Our Service


(1). For any technical problems encountered by customers in the process of testing or using our products, our technical team will provide customers with remote online technical support services at any time.
(2). We are a factory-type supplier with ISO certification. Our products on sale have undergone strict quality inspection and testing before shipment, and have also passed CE/ROHS certification.
(3). We have a professional after-sales service team, which can provide strong guarantee and logistical technical services for your orders.

(4). Replacement within 30 days after the shipment of products from us due to products' problems.

(5). We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.

(6). All goods will be inspected and tested before shipment.


6. FAQ


Q: May i buy samples from you?
A: Yes! You are welcome to place sample order to test our Hight quality and service.

Q: How to place bulk order?
A: 1) Tell us model number, quantity, color and other special requirements.
2) Proforma Invoice will be made and sent to you for approval
3) Production will be arranged once get your payment or deposit.
4) Goods will be delivered as stated on the Proforma Invoice.

Q: How will you deliver my goods to me?
A: We provide as many shipping options as possible, such as DHL, UPS, FEDEX, TNT AND EMS to enable our customers get their goods
rapidly at door. We also ship by economick method such as air cargo and sea cargo, direct line, air mail according to customers'

Q: What about the quality of your product?
A: We provide unrivaled quality: very rigorous testing process for incoming quality control, input process quality control, and
final quanltiy control for every piece. We follow QC test procedure, and do 100% FQC to ensure your satisfication.

Q: Can you provide OEM service?
A: Yes! We can provide professional OEM service.
