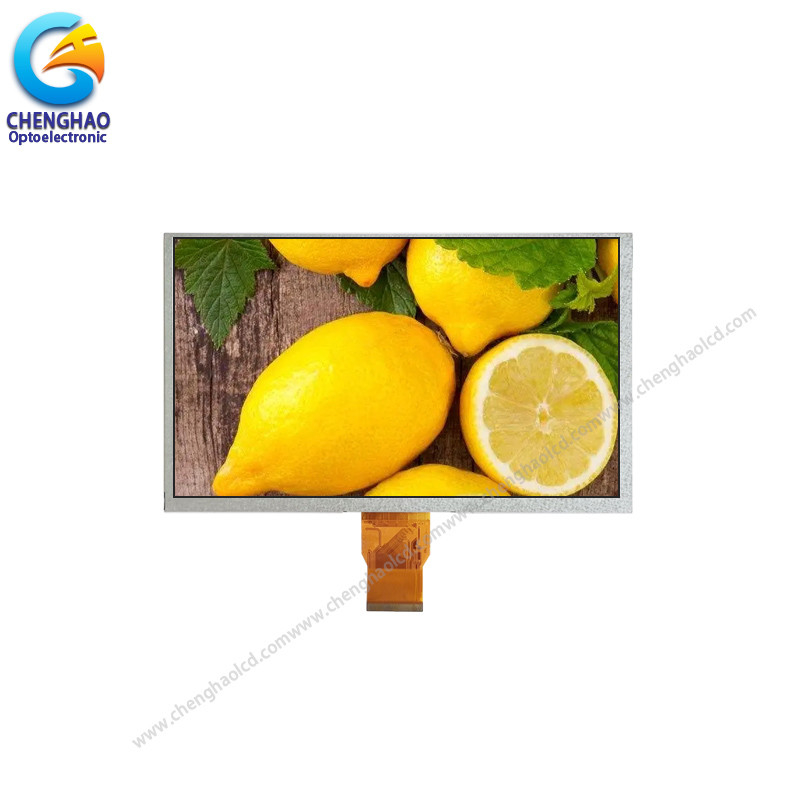

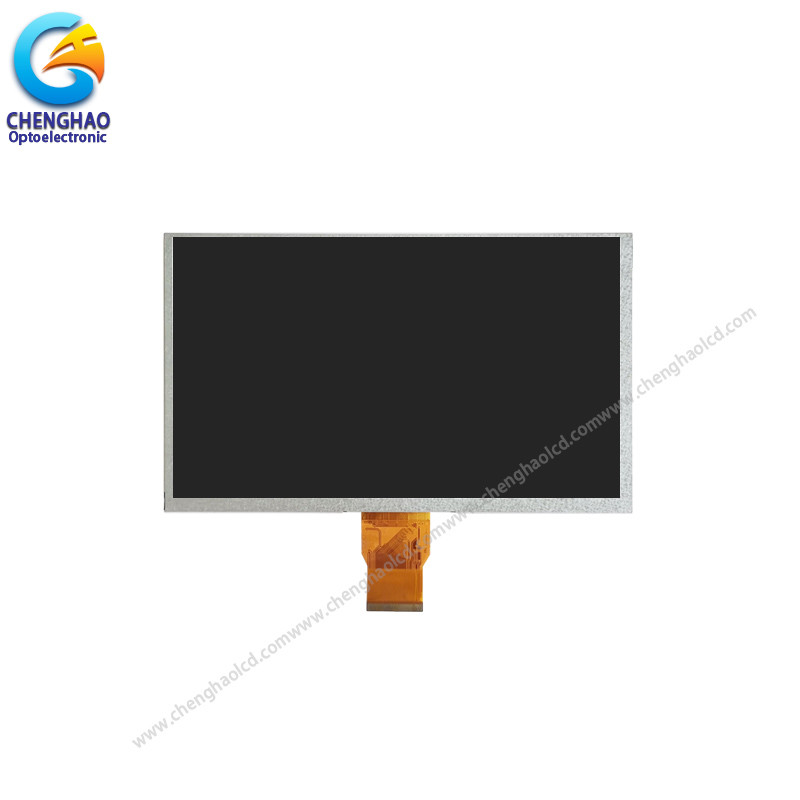

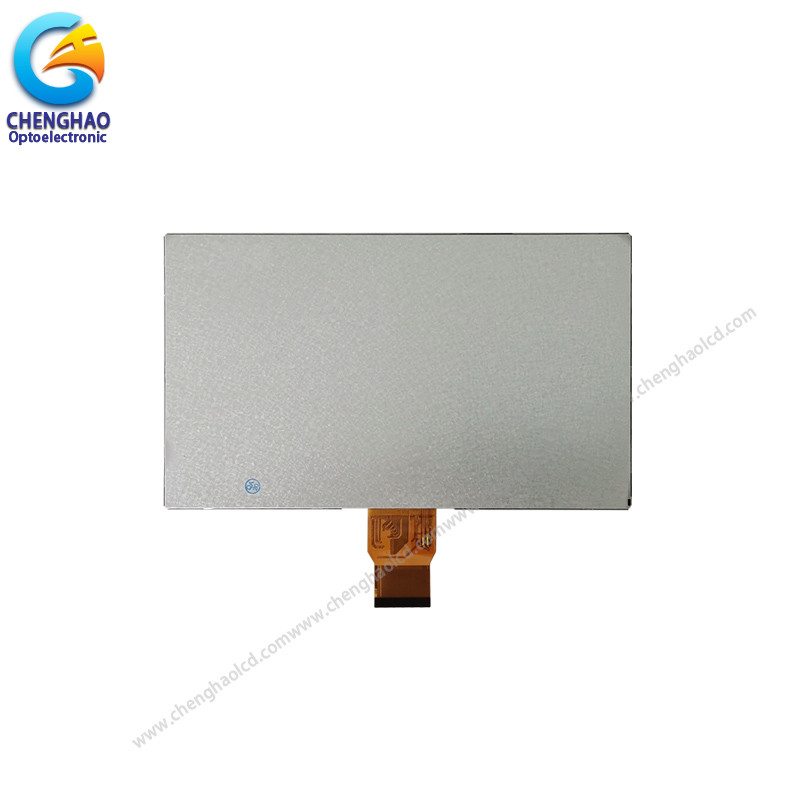

9 Inch TFT LCD Display 1024x600 WSVGA 50pin 24bit RGB Interface

Product Description

WSVGA 9 Inch TFT LCD Display 1024x600 50pin 24bit RGB Interface

1. Specification

2. Description

Chenghao Optoelectronic CH900WS01A is a high-definition color LCD display, using 24-bit Parallel RGB Interface, the screen brightness is 250 cd/m2, and supports 12 o’clock viewing angle. There is a 8.95 inch active display area of this HD tft lcd display, which can display 16M colors and 1024*600 pixel color screen. The operating temperature of this 9 inch tft lcd display is -20~+70℃, and the service life exceeds 20000 H.
CH900WS01 is a high-definition color LCD display specially developed and customized for installation in industrial equipment. It has completed the certification of FCC, RoHS, and CE certificates, and can provide buyers with more than one year of warranty service. This 9 inch tft lcd display can be modified and customized according to customer requirements. The customized content includes screen brightness, FPC shape structure, interface definition, screen anti-glare, touch function installation, etc.

3. Drawings

Notes:
(1) Display Type : 9 inch tft

(2) Viewing Direction : 12:00

(3) Operating Temp : -20~70 ℃

(4) Storage Temp : -30~80 ℃
(5) Unmarker Tolerance: ±0.20
(6) Protection : ROHS

4. Qucik Detail

Product Name: WSVGA 8.95 Inch TFT LCD Display

Supplier Name:Chenghao Optoelectronic

Supplier Type:Factory

LCD type: 9.0’’TFT
Dot arrangement: 1024×3(RGB)×600 dots
Color Pixel Arrangement: RGB vertical stripe
Display Mode: TN / Transmissive / Normally white
Viewing Direction: 12 o’clock
Gray Scale Inversion Direction: 6 o’clock
Module size: 210.7(W)×126.5(H)×5.0(T) mm
Active area: 196.61(W)×114.15(H) mm
Dot pitch: 0.192 (W)×0.19025 (H) mm
Interface: 24-bit Parallel RGB Interface
Operating temperature: -20 ~ +70 ℃
Storage temperature: -30 ~ +80 ℃
Weight: TBD g

Luminance: 250 cd/m2

FPC Number:50

Color:16.7M

5. Application

6. FAQ

Q: What is your warranty?
A: We provide one year warranty.

Q: May i buy samples from you?
A: Yes! You are welcome to place sample order to test our Hight quality and service.

Q: How to place bulk order?
A: 1) Tell us model number, quantity, color and other special requirements.
2) Proforma Invoice will be made and sent to you for approval
3) Production will be arranged once get your payment or deposit.
4) Goods will be delivered as stated on the Proforma Invoice.

Q: How will you deliver my goods to me?
A: We provide as many shipping options as possible, such as DHL, UPS, FEDEX, TNT AND EMS to enable our customers get their goods
rapidly at door. We also ship by economick method such as air cargo and sea cargo, direct line, air mail according to customers'
request.

Q: What about the quality of your product?
A: We provide unrivaled quality: very rigorous testing process for incoming quality control, input process quality control, and
final quanltiy control for every piece. We follow QC test procedure, and do 100% FQC to ensure your satisfication.

Q: Can you provide OEM service?
A: Yes! We can provide professional OEM service.
