WQVGA 4.3 Inch TFT LCD Capacitive Touchscreen 480x272 8080 Interface

Minimum Order Quantity : 1PCS Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7-15 working days
Payment Terms : T/T Supply Ability : 300Kpcs/month
Place of Origin: ShenZhen, China Brand Name: Chenghao/Oem
Certification: ROHS、ISO9001、CE Model Number: CH430WQ09A-CTA-PB

Detail Information

Product Name: WQVGA 4.3 Inch TFT LCD LCM Type: 4.3”TFT+CTP+PCB
Dot Arrangement: 480(RGB)×272 Dots Module Size: 113.5(W)×79.58(H)×8.5(T) Mm
Active Area: 95.04(W)×53.856(H) Mm Dot Pitch: 0.198 (W)×0.198 (H) Mm
Viewing Direction: 12 O’clock TFT Interface: 8/9/16/18/24-bit 8080 Interface
High Light:

WQVGA TFT LCD Capacitive Touchscreen


480x272 TFT LCD Capacitive Touchscreen


12 o'clock TFT LCD Touch screen

Product Description

WQVGA 4.3 inch TFT LCD Capacitive Touchscreen 480x272 8080 interface


1. Specification


LCD type
Dot arrangement
Module size
Active area
Operating temperature - 20 ~ + 70
Storage temperature - 30 ~ + 80



2. Description


Chenghao Optoelectronic CH430WQ09A-CTA-PB is a color LCD display module that supports multi-touch, including a small size color LCD display and a PCB driver board. This color LCD screen adopts 8/9/16/18/24-bit 8080 interface, can display 16M colors, and the screen brightness is 250 cd/m2. There is a 4.3 inch active display area of ​​this touch lcd display, It can display a 480x272 pixel color screen, supports 12:00 viewing direction, and can work continuously for more than 20,000 H in a temperature environment of -20~+70 ℃. The main function of this PCB driver board is to store the driver program of the LCD display and provide an external expansion interface. In addition, this 4.3 inch tft lcd display module can be modified and customized according to customer requirements. The customizable content includes FPC shape, touch function, interface definition, screen brightness, screen anti-glare, etc.
CH430WQ09A-CTA-PA is a color touch LCD module with high cost performance. It has passed FCC, CE, RoHS certification, and can provide customers with more than one year of warranty service. If you want to know more about this color touch LCD module, you can get more information by email or online consultation with our customer service



3. Drawings

(1) Display Type : 4.3’’TFT+CTP+PCB

(2) Viewing Direction : 12 o’clock

(3) Operating Temp : -20~70 ℃

(4) Storage Temp : -30~80 ℃
(5) Unmarker Tolerance: ±0.20
(6) Protection : ROHS

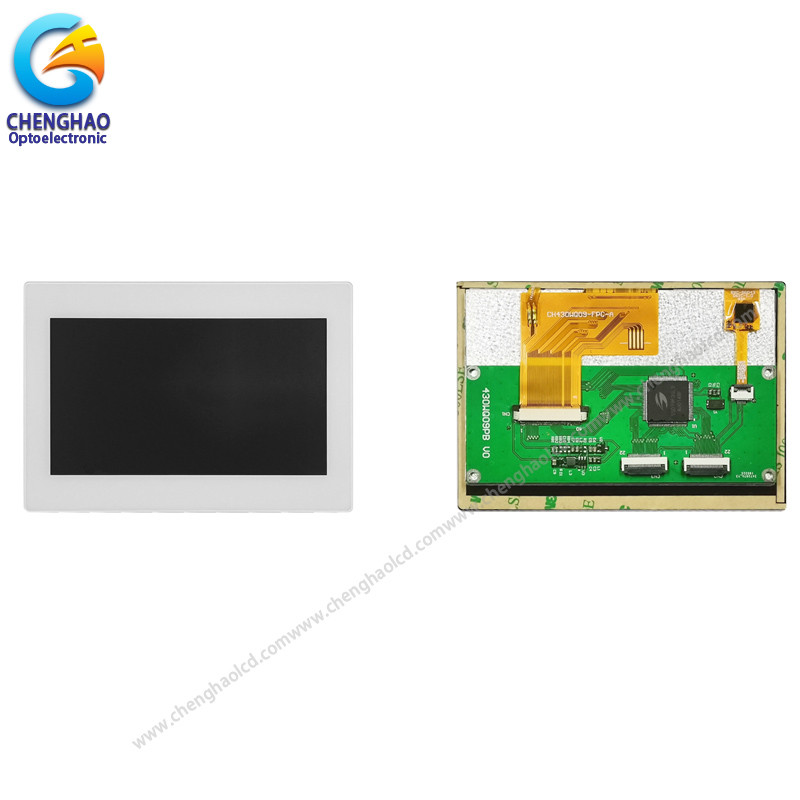

WQVGA 4.3 Inch TFT LCD Capacitive Touchscreen 480x272 8080 Interface 0



4. Qucik Detail

Product Name:WQVGA 4.3 inch TFT LCD Capacitive Touchscreen 480x272 8080 interface
Model No:CH430WQ09A-CTA-PB
TP Type:Capacitive touch panel
TP Interface:i2c
LCD type:4.3’’TFT+CTP+PCB
Dot arrangement:480(RGB)×272 dots

Color filter array: RGB vertical stripe
Display mode: IPS / Transmissive / Normally Black
Viewing Direction:12 o’clock
TFT Driver IC:***
Module size:113.5(W)×79.58(H)×8.5(T) mm
TFT Active area:95.04(W)×53.856(H) mm
Dot pitch:0.198 (W)×0.198 (H) mm
TFT Interface:8/9/16/18/24-bit 8080 interface
Operating temperature: -20 ~ +60 ℃
Storage temperature: -30 ~ +70 ℃


5. Application

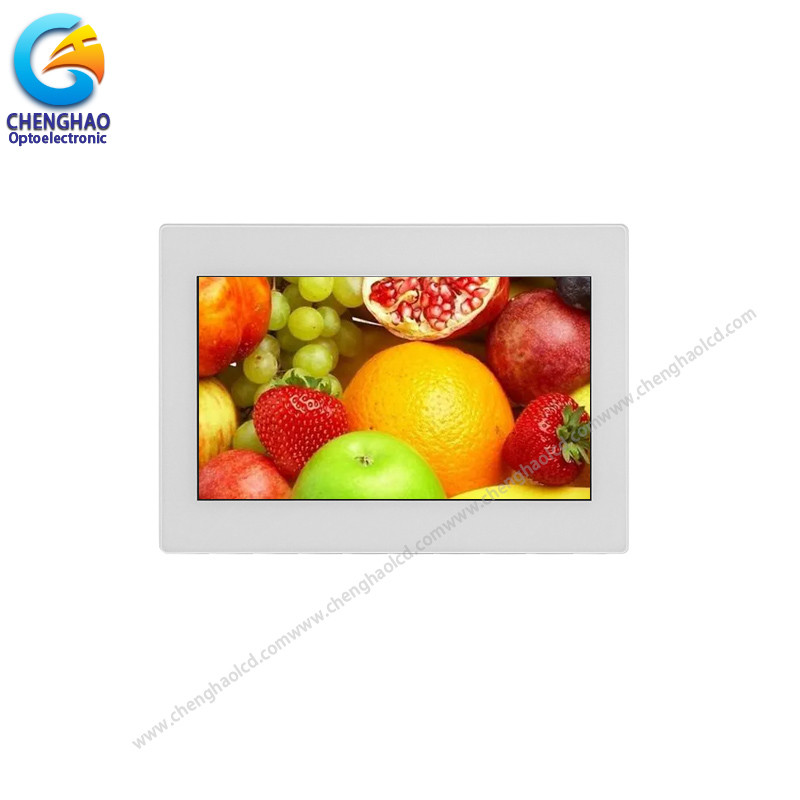

WQVGA 4.3 Inch TFT LCD Capacitive Touchscreen 480x272 8080 Interface 1



6. FAQ


Q1: Are you manufacturer ?
A: Yes, we are manufacturer.

Q2: How long is your delivery time?
A: Normally 3-5 working days after payment; Special requirement orders, delivery time is negotiable.

Q3: If the products can't work after receiving it,what should I do?
A: We will replace new items for you at once and then we make the judgement for the issue.

Q4: Do you accept OEM design?
A: Yes,we do.We can design according to your requirement, MOQ usually 100-1000.

Q5: Do you accept pay 30% in advance?
A: Yes,we do.We can start to prepare your goods when receive 30% payment, and send them after get the rest 70% payment.
