2.8 Inch TFT LCD Display 240x320 40 Pin MCU SPI RGB Multi Interface

Product Description

2.8 Inch TFT LCD Display 240x320 40 Pin MCU SPI RGB Multi Interface

1. Specification

2. Description

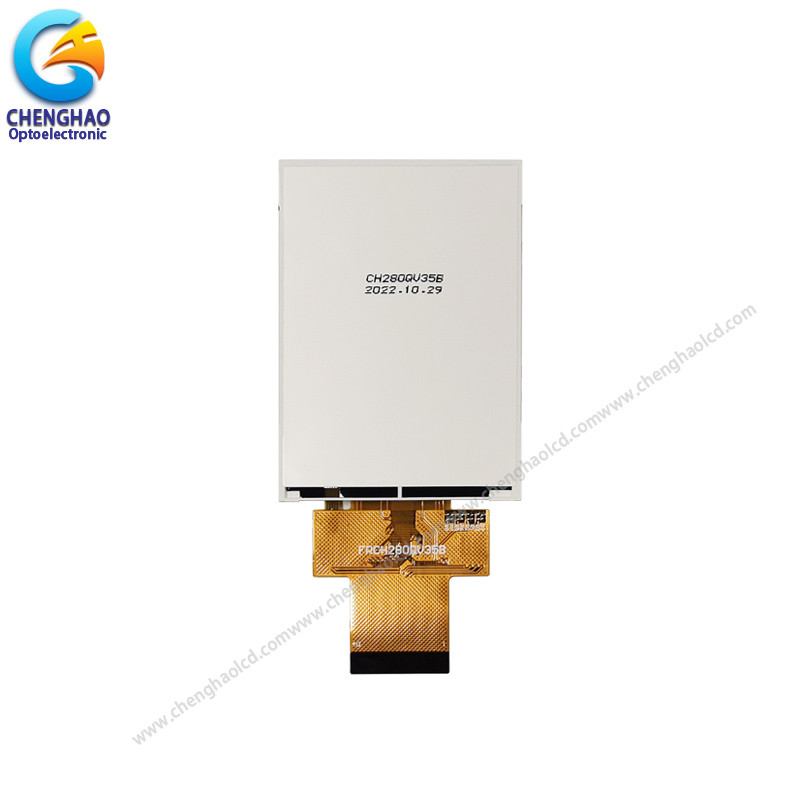

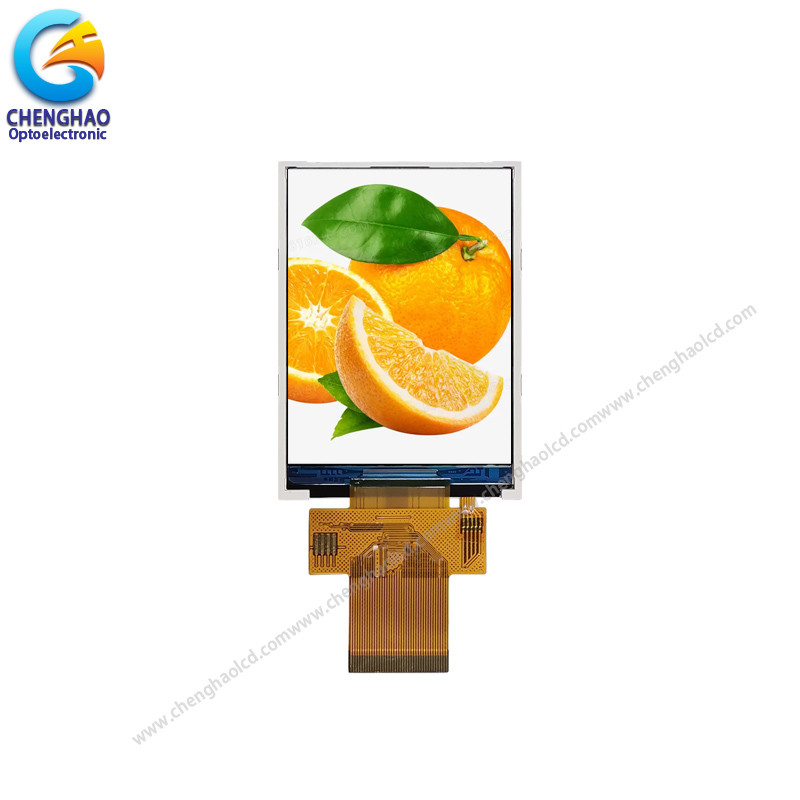

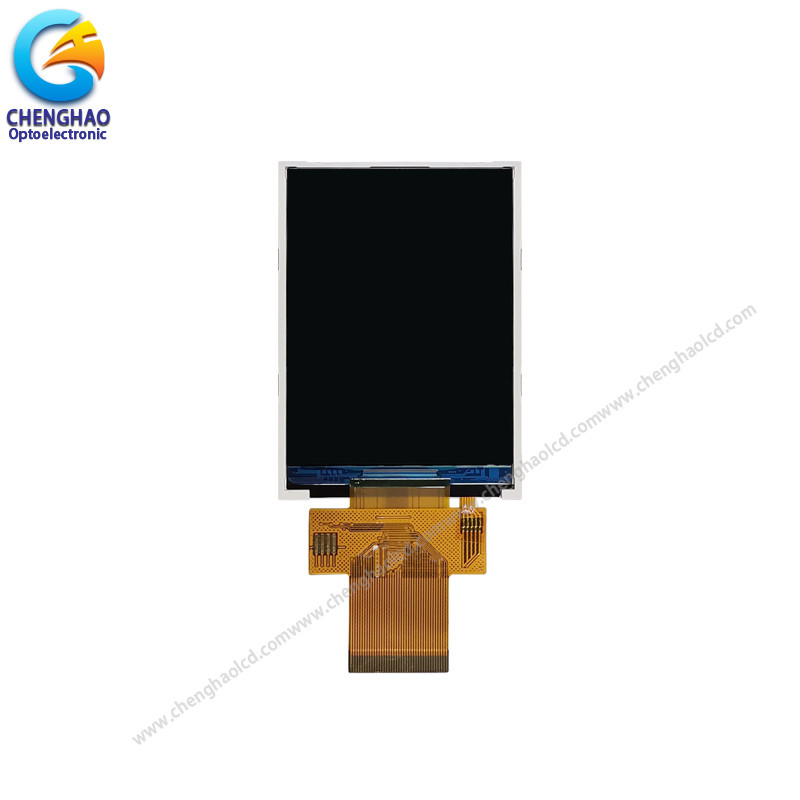

Chenghao Optoelectronic CH280QV35B is a TN color TFT lcd display, using MCU/SPI/RGB interface, it can display 262K/65K color. There is a 3.5 inch active display area of this small screen, which can display video images with 240x320 resolution and supports 6:00 Viewing direction. When Vf=3.0~3.4V, If=60 mA, the brightness of this small color screen reaches 300 cd/m2, and it can work continuously for more than 20000 H in an environment with a temperature between -20~+70℃. In addition, this small color screen can be customized according to customer requirements. The customizable content includes FPC shape structure, interface definition, screen brightness, touch function installation, and anti-glare.
CH280QV35B is a wide-temperature LCD display with high cost performance. It has passed strict CE, FCC, and RoHs certifications, and provides more than one year of warranty service. You can get more information about this small color screen by sending an email or consulting customer service online.

3. Drawings

Notes:
(1) Display Type : 2.8" TFT
(2) Viewing Direction : 6:00

(3) Lcd Drive IC : ****
(4) Operating Temp : -20~70 ℃
(5) Storage Temp : -30~80 ℃
(6) Unmarker Tolerance: ±0.20
(7) Protection : ROHS

4. Quick Detail

LCM number : CH280QV35B
Resolution : 240× 3(RGB) ×320
Dot pitch : ******
Outline dimension : 50*69.2*2.15
Active Area : 43.2*57.6
View direction: 6:00
TFT Electrical Interface : SPI/MCU/RGB
Brightness : 300(cd/m2)
Driver IC : ****
Contrast ratio : 500
Backlight Type : white LED
Response time : ******(ms)
Display mode : TN, Normally White, Transmissive
Operate temperature : -20-70(°C)
Storage temperature : -30-80(°C)
Display Colors : 262K/65K
Backlight lifetime : 20k hrs(Min.)
With/without Touch Panel:Without


5. Application

6. FAQ

Q: What is your warranty?
A: We provide one year warranty.

Q: May i buy samples from you?
A: Yes! You are welcome to place sample order to test our Hight quality and service.

Q: How to place bulk order?
A: 1) Tell us model number, quantity, color and other special requirements.
2) Proforma Invoice will be made and sent to you for approval
3) Production will be arranged once get your payment or deposit.
4) Goods will be delivered as stated on the Proforma Invoice.

Q: How will you deliver my goods to me?
A: We provide as many shipping options as possible, such as DHL, UPS, FEDEX, TNT AND EMS to enable our customers get their goods
rapidly at door. We also ship by economick method such as air cargo and sea cargo, direct line, air mail according to customers'
request.

Q: What about the quality of your product?
A: We provide unrivaled quality: very rigorous testing process for incoming quality control, input process quality control, and
final quanltiy control for every piece. We follow QC test procedure, and do 100% FQC to ensure your satisfication.

Q: Can you provide OEM service?
A: Yes! We can provide professional OEM service.
